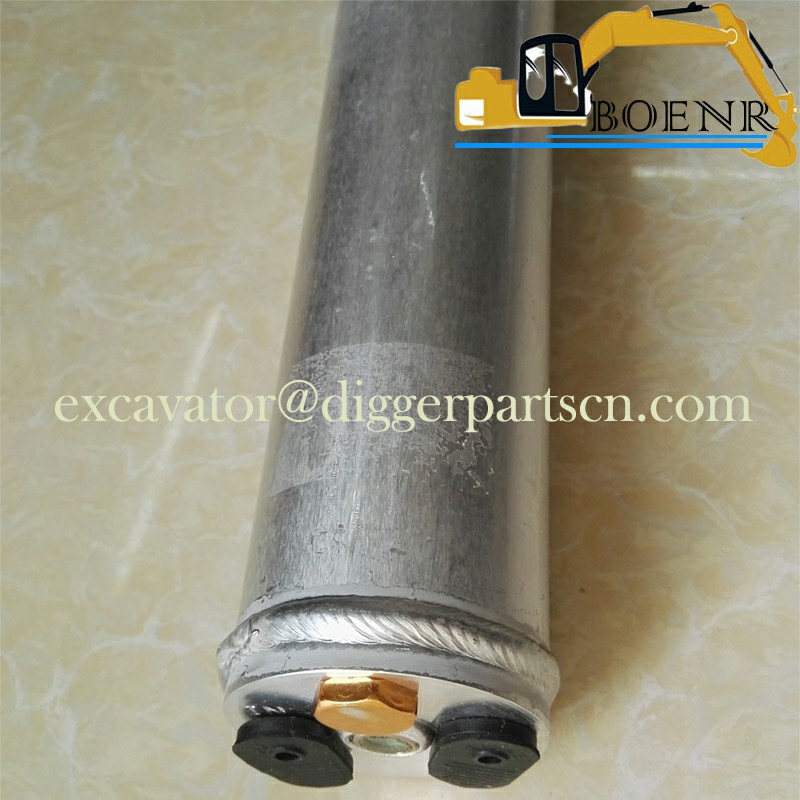

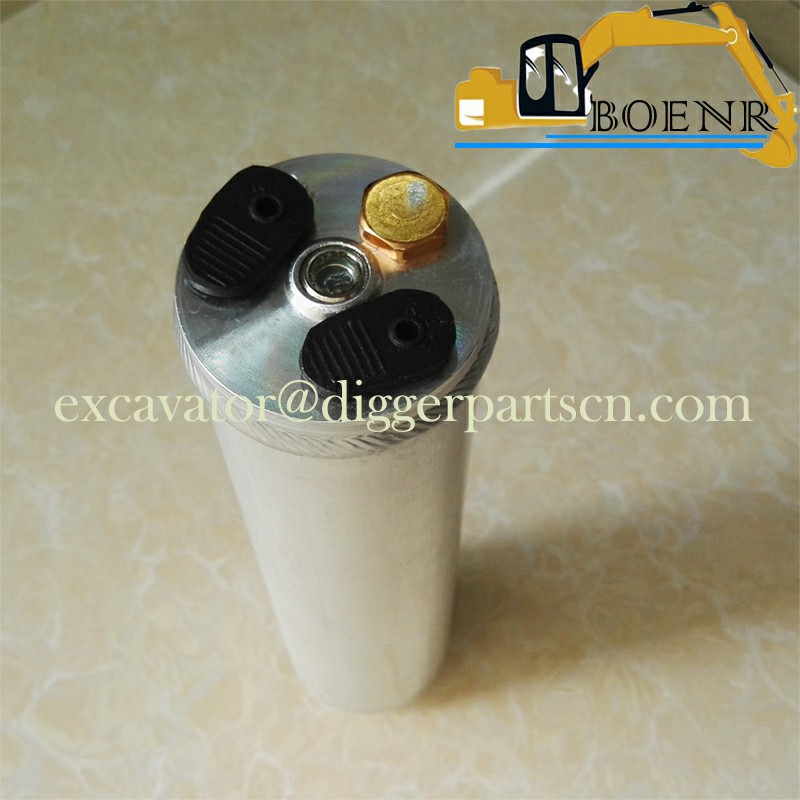

YN96V00014F1 Air Conditioner Dryer Assy For SK200-8 SK210-8 SK250-8 SK260-8 SK330-8 SK350-8 SK380-8
SK200-8 SK210-8 SK250-8 SK260-8 SK330-8 SK350-8 SK380-8 Air Conditioner Dryer Assy YN96V00014F1
| Part Name | Dryer | Part Number | YN96V00014F1 |
| Brand | Kobelco, Kobeki | Applicable Model | SK200-8 SK210-8 SK250-8 SK260-8 SK330-8 SK350-8 SK380-8 |
Weight: 2.5 kg

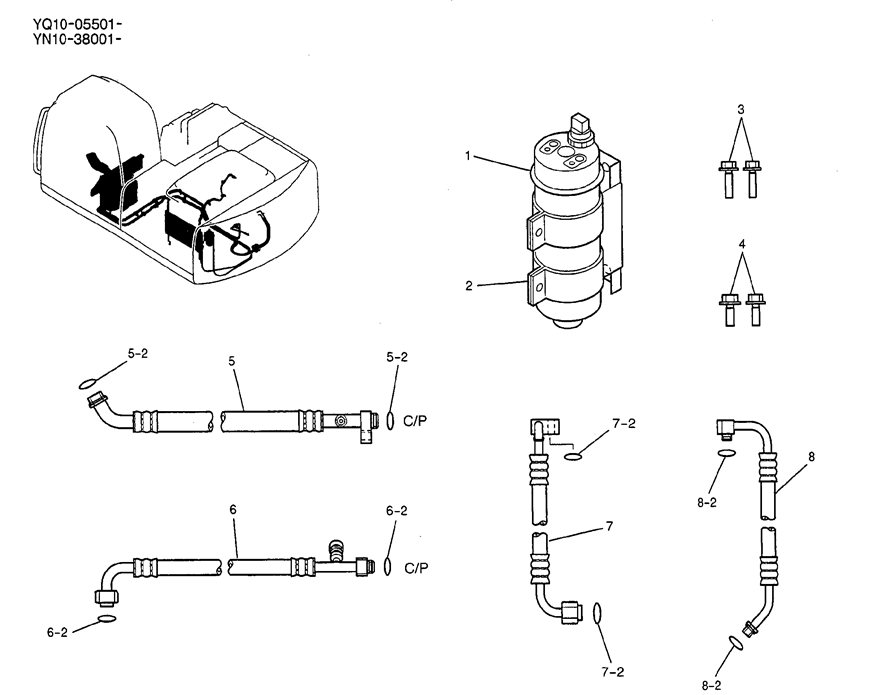

Image: Component Installation Diagram
Parts Catalog
| ITEM | QTY | PART NUMBER | PART NAME |
| 8-2 | 2 | 2445Z1604D6 | O-RING 08mm |
| 8 | 1 | LQ20M01051F1 | HOSE ASSY. 4844mm Long (190-45/64 in) (Incls. O-Ring 2445Z1604D6) |
| 7-2 | 2 | 2445Z1604D6 | O-RING 08mm |
| 7 | 1 | LQ20M01050F1 | HOSE ASSY. 360mm Long (14-11/64 in) (Incls. O-Ring 2445Z1604D6) |
| 6-2 | 2 | 2445Z1604D4 | O-RING 1/2 in |
| 6 | 1 | YN20M01400F1 | HOSE ASSY. 2148mm Long (84-9/16 in) (Incls. O-Ring 2445Z1604D4) |
| 5-2 | 2 | 2445Z1604D5 | O-RING 5/8 in |
| 5 | 1 | YN20M01278F1 | HOSE ASSY. 4091mm Long (161-1/16 in) (Incls. O-Ring 2445Z1604D5) |
| 4 | 2 | YT96V00001S009 | CAP Screw, M08 x 25mm Long |
| 3 | 2 | YT96V00001S010 | CAP Screw, M06 x 25mm Long |
| 2 | 1 | YN20M01355P1 | BRACKET |
| 1 | 1 | YT54S00002P1 | RECEIVER-DRYER Sensor NSS |
| AR | YN96V00014F1 | RECEIVER-DRYER ASSY, AIR |
