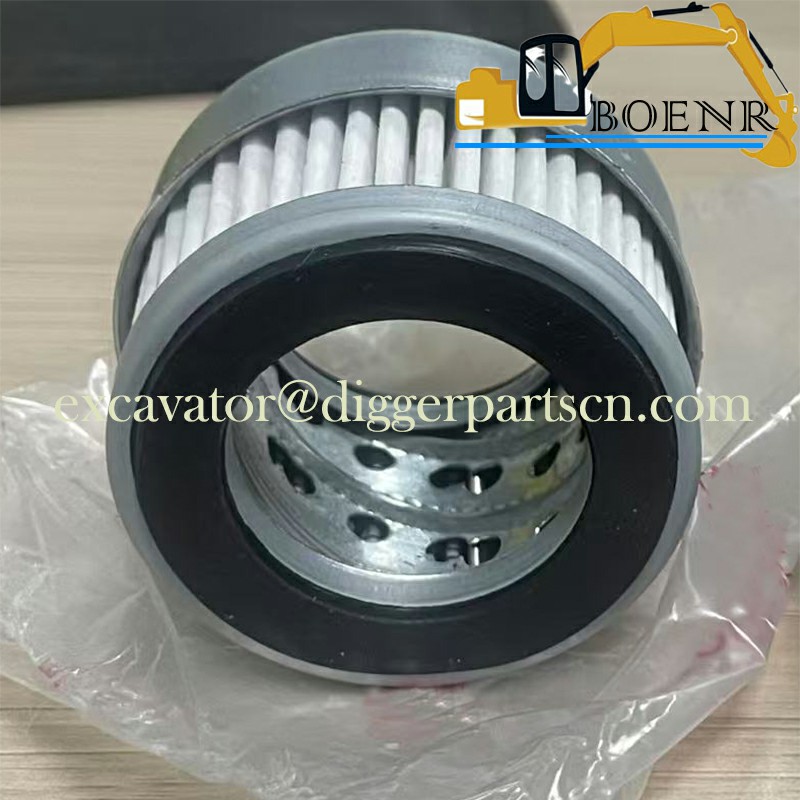

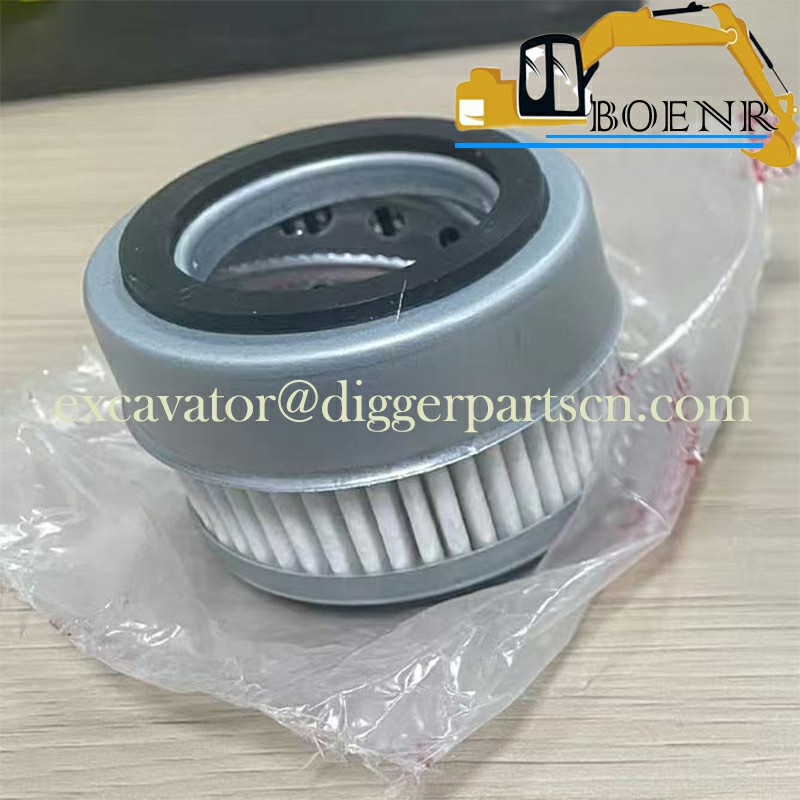

Yn57V00002s010 Exhaust Valve Filter For SK200-6 SK200-6E SK200SR SK210-6E SK290-6E
SK200-6 SK200-6E SK200SR SK210-6E SK290-6E Exhaust Valve Filter Yn57V00002s010
| Part Name | Filter | Part Number | Yn57V00002s010 |
| Brand | Kobeki、Kobelco | Applicable Model | SK200-6 SK200-6E SK200SR SK210-6E SK290-6E |
Weight:0.2G

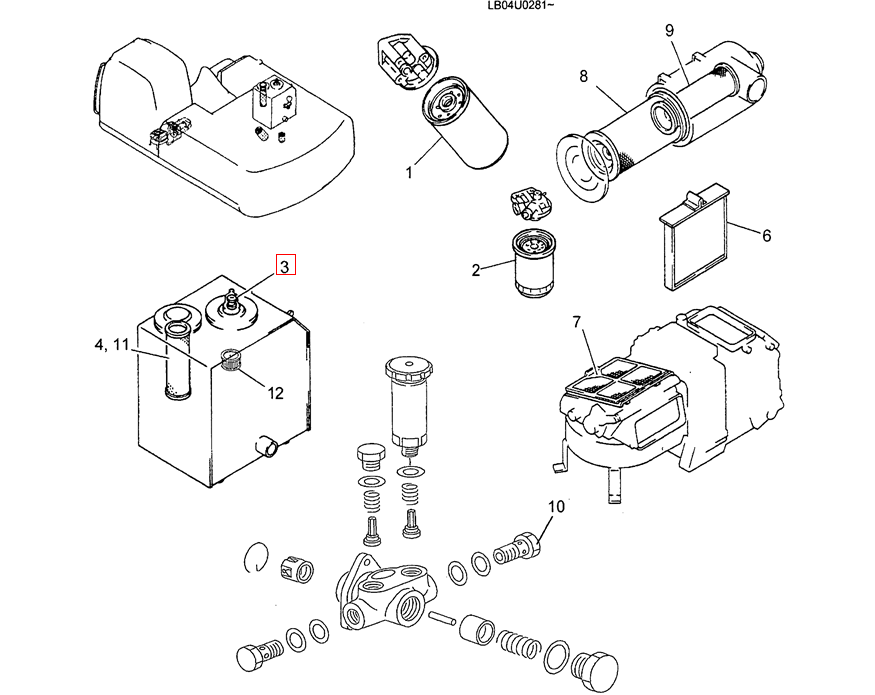

Image: Component Installation Diagram
Parts Catalog
| ITEM | QTY | PART NUMBER | PART NAME |
| 3 | ZW16H12000 | WASHER ID 13 x OD 26 x Th 3.2mm | |
| B1 | 3 | ZS18C12030 | SCREW M12x1.75x30mm |
| TANK INSTAL, HYD (PM33H00026F1) | |||
| AR | PW50V00012R200 | HYDRAULIC OIL FILTER ELEMENT KIT CONSISTS OF REF. (A3-5) (1), (A4) (1) | |
| A19 | 4 | ZW26K06000 | LOCK WASHER ID 06 x OD 11 x Th 1.5mm |
| A18 | 4 | ZS28C06016 | SCREW M06x1.0x16mm |
| A17-7 | 1 | YN57V00002S012 | CAP |
| A17-6 | 1 | YN57V00002S011 | COVER |
| A17-5 | 1 | YN57V00002S010 | ELEMENT |
| A17-4 | 1 | YN57V00002S007 | IDENTITY PLATE Plate, Caution |
| A17-3 | 1 | 2446U260S8 | PACKING |
| A17-2 | 1 | 2446U260S5 | NUT |
| A17-1 | 1 | 2446U260S1 | BODY |
| A17 | 1 | YN57V00002F4 | BREATHER ASSY. ASSY |
| A16 | 1 | PW33H01144P1 | COVER |
| , ASN PV13-33143 | |||
| A11 | 1 | PM58S00001P1 | LEVEL GAUGE , ASN PM10-10170 |
| , BTW PV13-33001 & 33142 | |||
| A11 | 1 | PE58S00001P1 | GAUGE LEVEL, BTW PM10-10001 & 10169 |
| A9 | 1 | ZD11G11500 | O-RING ID 114.40 ± 0.94 x OD 120mm |
| A8 | 8 | ZS18C08016 | SCREW M08x1.25x16mm |
| A7 | 8 | ZW26X08000 | WASHER Lock -- ID 08 x OD 15 x Th 2.0mm |
| A5 | 1 | PM33H01083P2 | COVER |
| A4 | 1 | ZD11G11000 | O-RING ID 109.40 ± 0.91 x OD 115mm |
| A3-5 | 1 | YR52V01003P1 | FILTER ELEMENT |
| A3-3 | 1 | YR52V01001S004 | SPRING |
| A3-2 | 1 | PW21V00004P1 | VALVE CHECK |
| A3 | 1 | PW50V00012F2 | HYDRAULIC OIL FILTER ASSY, RETURN |
| A2-7 | 1 | NSS | NOT SERVICED SEPARATELY O-Ring |
| A2-6 | 1 | 2446R176S5 | Spring |
| A2-5 | 2 | ZN11C10008 | NUT M10x1.50mm |
| A2-4 | 1 | PW50V00015S004 | BOLT Bolt |
| A2-2 | 1 | 2446R176S2 | Guide |
| A2-1 | 1 | PM50V00017S001 | FILTER STRAINER |
| A2 | 1 | PW50V00015F2 | STRAINER ASSY. ASSY, SUCTION |
| , ASN PV13-33143 | |||
| A1 | 1 | PM33H00038P1 | TANK , ASN PM10-10170 |
| , BTW PV13-33001 & 33142 | |||
| A1 | 1 | PM33H00030P1 | TANK , BTW PM10-10001 & 10169 |
| TANK ASSY, HYD (PM33H00037F1) |
