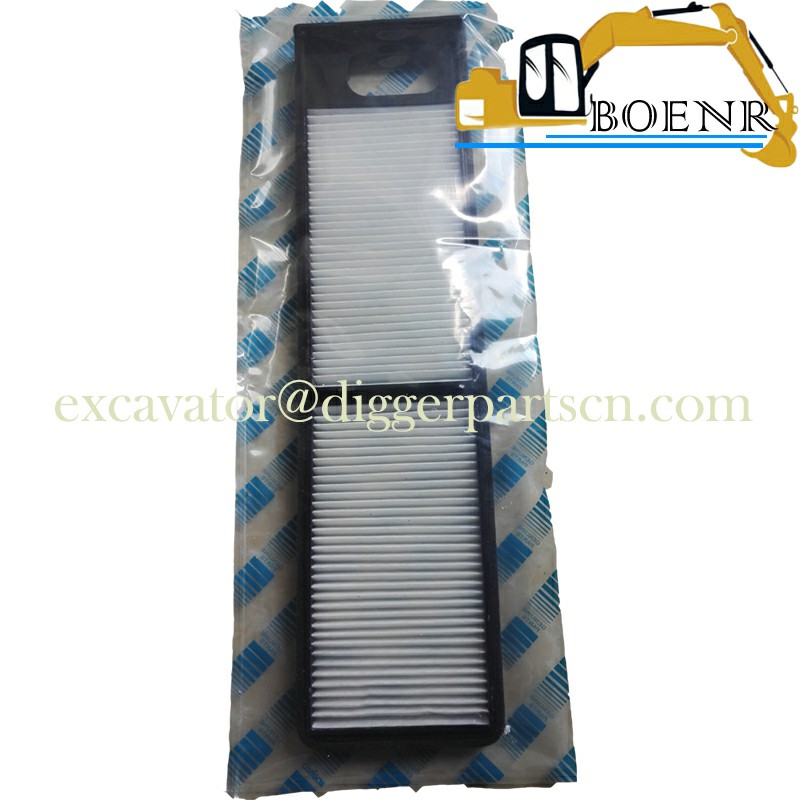

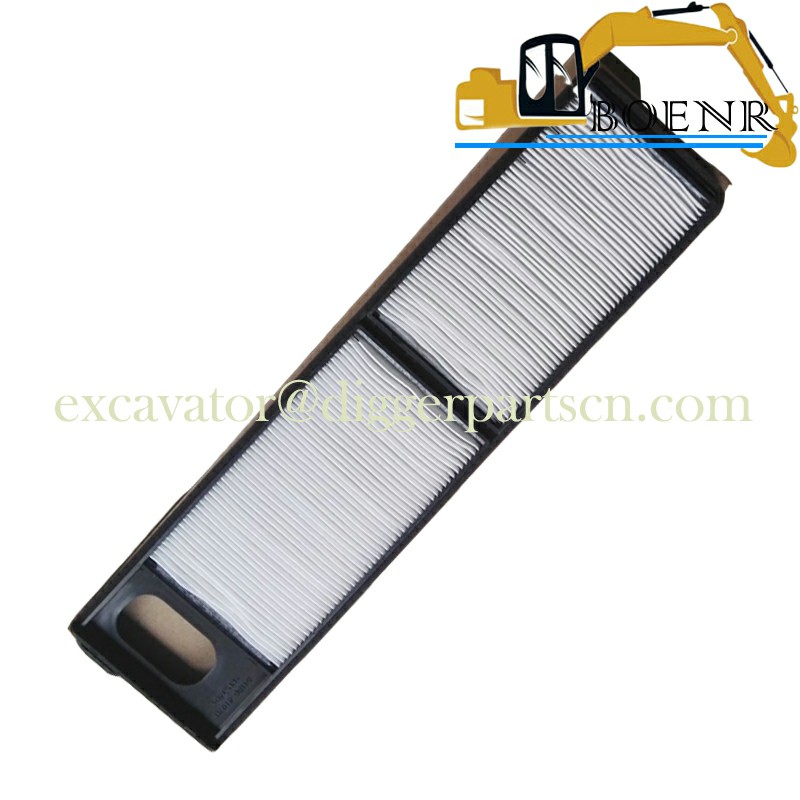

YN50V01014P1 Air Conditioner Filter For SK200-8 SK210-8 SK215SR SK235SR SK295-8 SK350-8 SK380-8
SK200-8 SK210-8 SK215SR SK235SR SK295-8 SK350-8 SK380-8 SK250-8 SK260-8 Air Conditioner Filter YN50V01014P1
| Part Name | Air Conditioner Filter | Part Number | YN50V01014P1 |
| Brand | Kobeki、Kobelco | Applicable Model | SK200-8 SK210-8 SK215SR SK235SR SK295-8 SK350-8 SK380-8 SK250-8 SK260-8 |
Weight:0.5KG
Image: Component Installation Diagram
Parts Catalog
| ITEM | QTY | PART NUMBER | PART NAME |
| 4 | 1 | YN50V01014P1 | CAB FILTER Air-Con, (Inner) |
| 3 | 2 | 24100U1176S5 | CLAMP |
| 2 | 2 | LC20M01014D2 | HOSE |
| 1 | YN20M00107F3 | AIR CONDITIONING Assy (See Fig No. 298-01-1), ASN YN11-48935 | |
| 1 | YN20M00107F3 | AIR CONDITIONING Assy (See Fig No. 298-01-1), ASN YQ11-06357 | |
| 1 | 1 | YN20M00107F2 | AIR CONDITIONING Assy (See Fig No. 298-01-1), BTW YN11-45958 & YN11-48934 |
| 1 | 1 | YN20M00107F2 | AIR CONDITIONING Assy (See Fig No. 298-01-1), BTW YQ11-06071 & YQ11-06356 |
| AR | YN20M00118F1 | AIR CONDITIONER Assy., ASN YN11-48935 | |
| AR | YN20M00118F1 | AIR CONDITIONER Assy., ASN YQ11-06357 | |
| AR | YN20M00113F1 | AIR CONDITIONER Assy,, BTW YN11-45958 & YN11-48934 | |
| AR | YN20M00113F1 | AIR CONDITIONER Assy,, BTW YQ11-06071 & YQ11-06356 |
