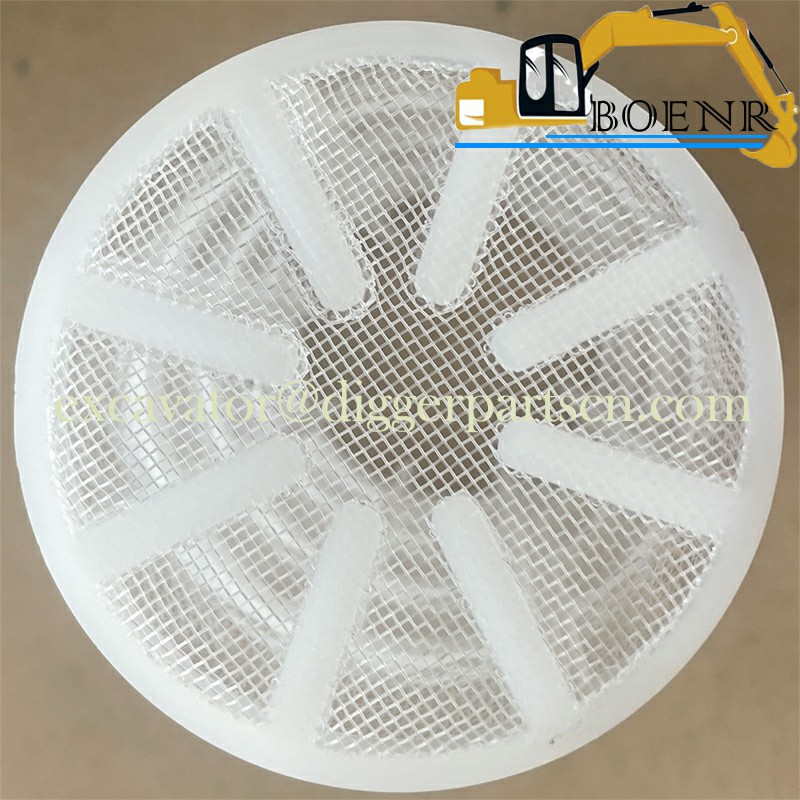

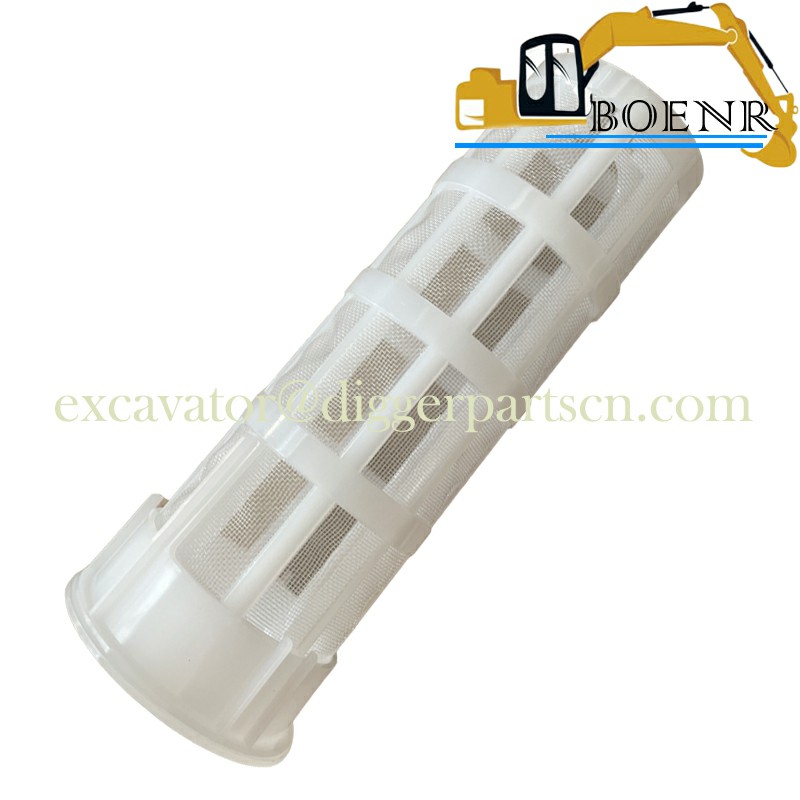

YN50V00029P1 Fuel Filter Strainer For SK200-8 SK210-8 SK250-8 SK260-8 SK330-8 SK350-8 SK350-9
YN50V00029P1 Fuel Filter Strainer For SK200-8 SK210-8 SK250-8 SK260-8 SK330-8 SK350-8 SK350-9 SK380-8
| Part Name | Strainer | Part Number | YN50V00029P1 |
| Brand | Kobelco, Kobeki | Applicable Model | SK200-8 SK210-8 SK250-8 SK260-8 SK330-8 SK350-8 SK350-9 SK380-8 |
Weight: 0.3 kg

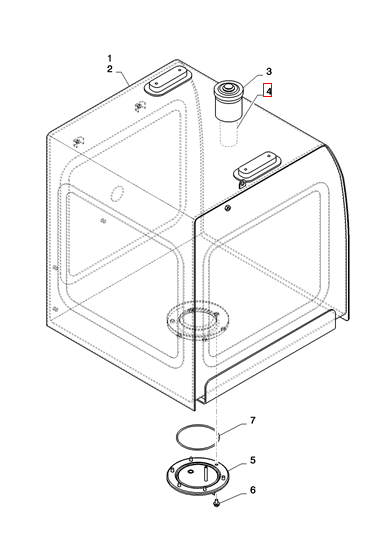

Parts Catalog
| ITEM | QTY | Part Number | Part Name |
| 7 | 1 | ZD11G16000 | O-RING |
| 6 | 6 | ZM73C10020 | BOLT Sems |
| 5 | 1 | YN20P01258P1 | FLANGE |
| 4 | 1 | YN50V00024P1 | FILTER STRAINER , ASN YC12U2459 |
| 4 | 1 | YN50V00029P1 | FILTER STRAINER Strainer - was YN50V00021P1, BSN YC12U2458 |
| 3 | 1 | 87748274 | PLUG , ASN YC12U2459 |
| 3 | 1 | YN20P01034P2 | CAP , BSN YC12U2458 |
| 2 | 1 | LC20P00138P1 | FUEL TANK NSS - Order Upper Assembly, ASN YC12U2459 |
| 2 | 1 | LC20P00112P1 | FUEL TANK NSS - Order Upper Assembly, BSN YC12U2458 |
| 1 | LC20P00137F1 | FUEL TANK Fuel Tank Assembly, ASN YC12U2459 | |
| 1 | LC20P00111F1 | FUEL TANK Fuel Tank Assembly, BSN YC12U2458 |
