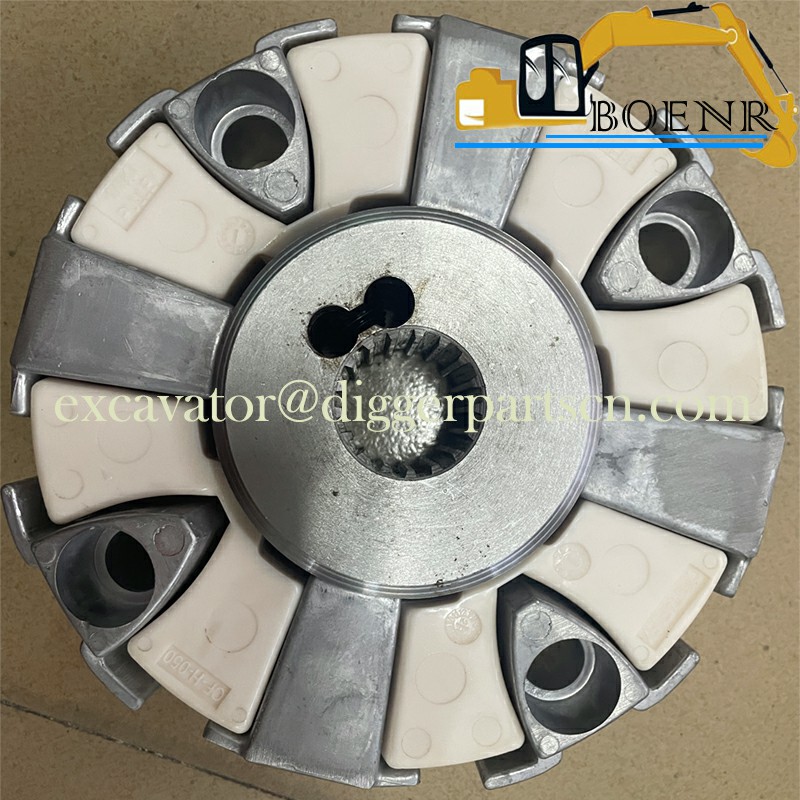

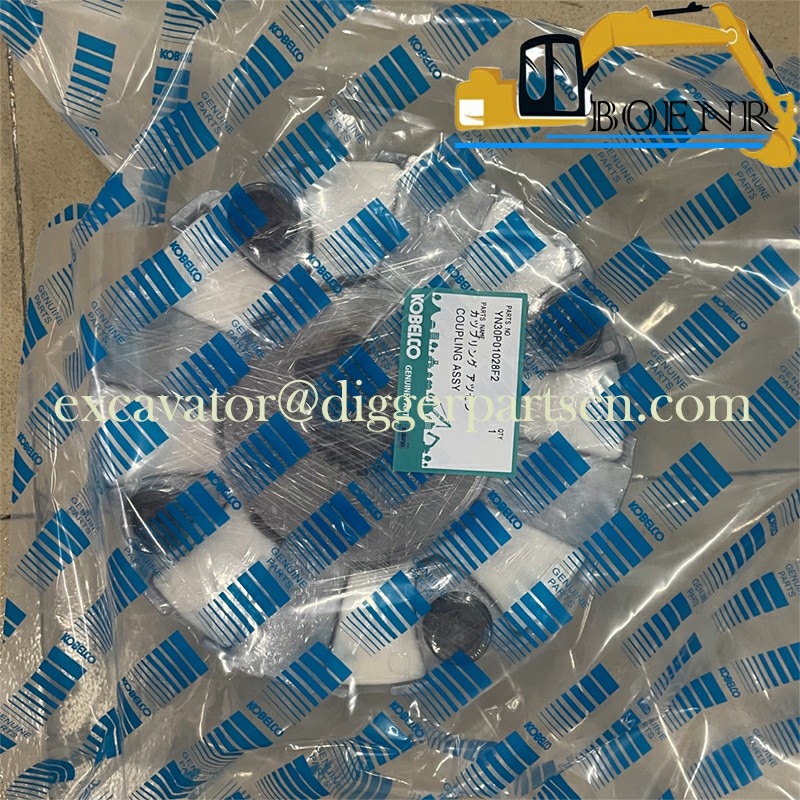

YN30P01028F2 Coupling For SK200-8 SK210-8 SK235SR
SK200-8 SK210-8 SK235SR Coupling YN30P01028F2
| Part Name | Coupling | Part Number | YN30P01028F2 |
| Brand | Kobelco、Kobeki | Applicable Model | SK200-8 SK210-8 SK235SR |
Weight: 6.5KG

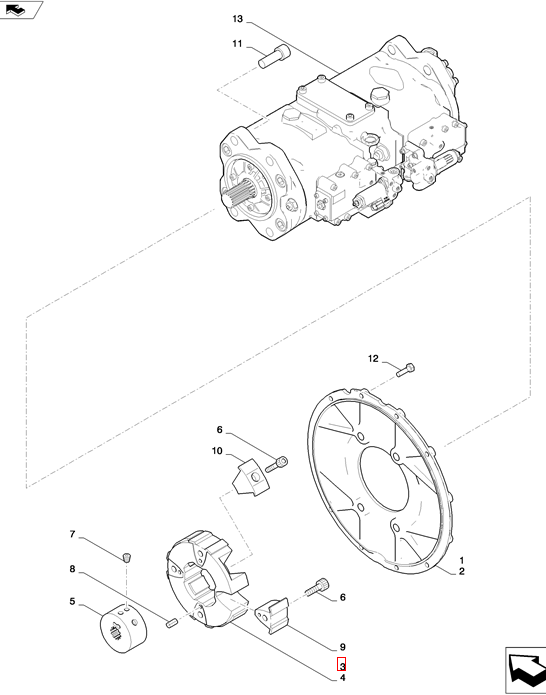

Image: Component Installation Diagram
Parts Catalog
| ITEM | QTY | PART NUMBER | PART NAME |
| 13 | 1 | YF10V00006F2 | HYDRAULIC PUMP Assy. |
| 12 | 8 | ZS18C10035 | SCREW Cap |
| 11 | 4 | ZS28C20055 | CAP Screw |
| 10 | 4 | YN30P01028S009 | INSERT |
| 9 | 4 | YN30P01028S008 | INSERT |
| 8 | 4 | ZP26D05010 | PIN Spring |
| 7 | 2 | YN30P01028S006 | SET SCREW |
| 6 | 8 | LQ30P01003S005 | SCREW Cap |
| 5 | 1 | YN30P01028S002 | HUB |
| 4 | 1 | LQ30P01003S001 | COUPLING Rubber |
| 3 | 1 | YN30P01028F2 | COUPLING |
| 2 | 1 | YN30P01029P1 | BRACKET |
| 1 | 1 | YN30P00017F1 | |
| AR | YF30P00004F1 |
