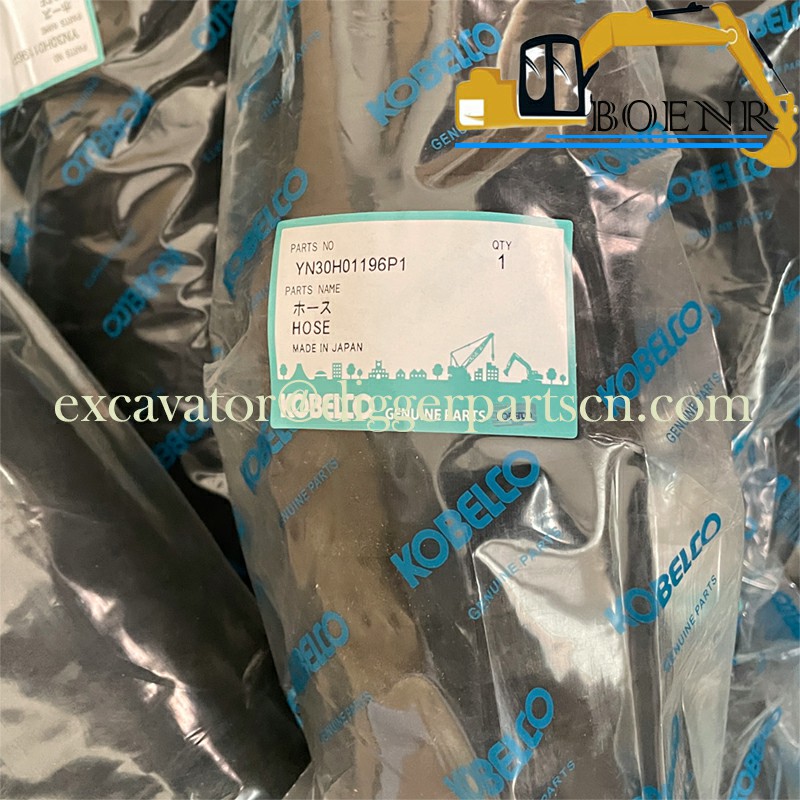

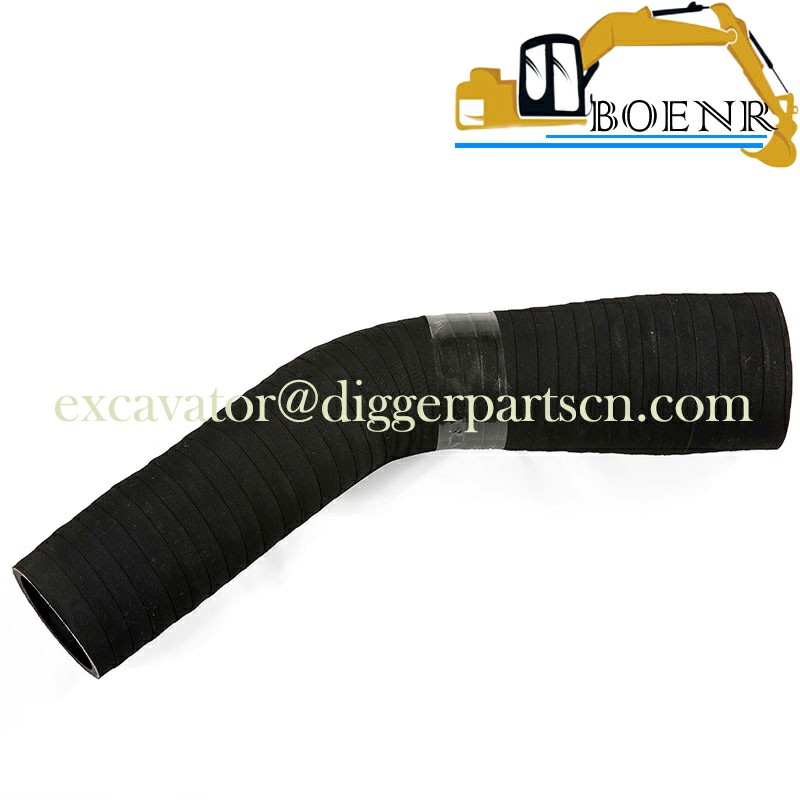

YN30H01196P1 Hydraulic Hose Pipe For SK200-8 SK210D-8 SK210LC-8

SK200-8 SK210D-8 SK210LC-8 Hydraulic Hose Pipe YN30H01196P1

Part Name	Hose Pipe	Part Number	YN30H01196P1
Brand	Kobelco、Kobeki	Applicable Model	SK200-8 SK210D-8 SK210LC-8

Weight: 2KG

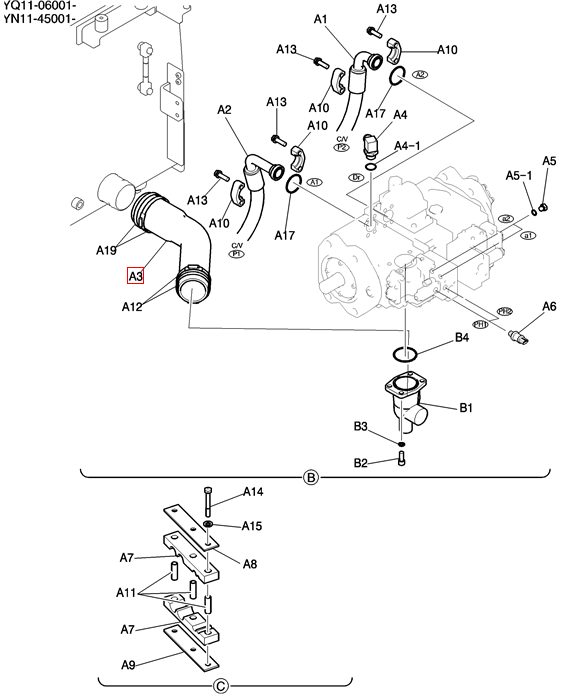

Parts Catalog

ITEM	QTY	PART NUMBER	PART NAME
B4	1	45Z91D104	O-RING
B3	4	ZW26K12000	LOCK WASHER
B2	4	ZS28C12030	CAP
B1	1	YN30H01220P1	ELBOW
	AR	YN30H00044F1	Hyd, Pump
A19	2	ZC16X10000	CLIP
A17	4	ZD12P03400	O-RING
A15	3	ZW16H12000	WASHER
A14	3	ZS18C12090	SCREW Cap
A13	16	HM83C12040G1	BOLT Sems
A12	2	ZC16X09100	CLIP
A11	3	ZY26X06056	SPACER
A6-3	1	YT42H01128P1	ELBOW (Added with new part # press switch)
A10	8	ZE13X16000	FLANGE Clamp, Half
A6-2	1	ZD12P01400	O-RING ID 10.80 ± 0.18 x OD 15mm
A9	1	YN30H01215P1	PLATE
A6-1	1	LS30H01024P1	HYD CONNECTOR (Added with new part # press switch)
A8	1	YN30H01217P1	PLATE
A6-0	1	YY52S00033F1	SENSOR Kit Includes Ref 9 - 9-3 (Refer to SB S030-41-K003)
A7	2	YN30H01214P1	RUBBER
A6	2	LS52S00015P1	SENSOR Press (h.P.) (Added by SB S030-41-K003), ASN YN11-49207
A6	2	LS52S00015P1	SENSOR Press (h.P.) (Added by SB S030-41-K003), ASN YQ11-06414
A6	2	YN52S00048P1	SENSOR Press (h.P.), BTW YN11-45001 & YN11-49206
A6	2	YN52S00048P1	SENSOR Press (h.P.), BTW YQ11-06001 & YQ11-06413
A5-1	1	ZD12P01100	O-RING
A5	2	ZE72X04000	PLUG
A4-1	1	ZD12P02400	O-RING
A4	1	ZH32X12000	HYD CONNECTOR Elbow
A3	1	YN30H01196P1	HOSE
A2	1	YN30H01219D1	HOSE
A1	1	YN30H01247D1	HOSE , ASN YN11-48619
A1	1	YN30H01247D1	HOSE , ASN YQ11-06355
A1	1	YN30H01212D1	HOSE [ B ], BTW YN11-45001 & YN11-48618
A1	1	YN30H01212D1	HOSE [ B ], BTW YQ11-06001 & YQ11-06354
	AR	YN30H00043F1	Hyd, Pump
	AR	YN30H00041F1	Hyd, Pump
