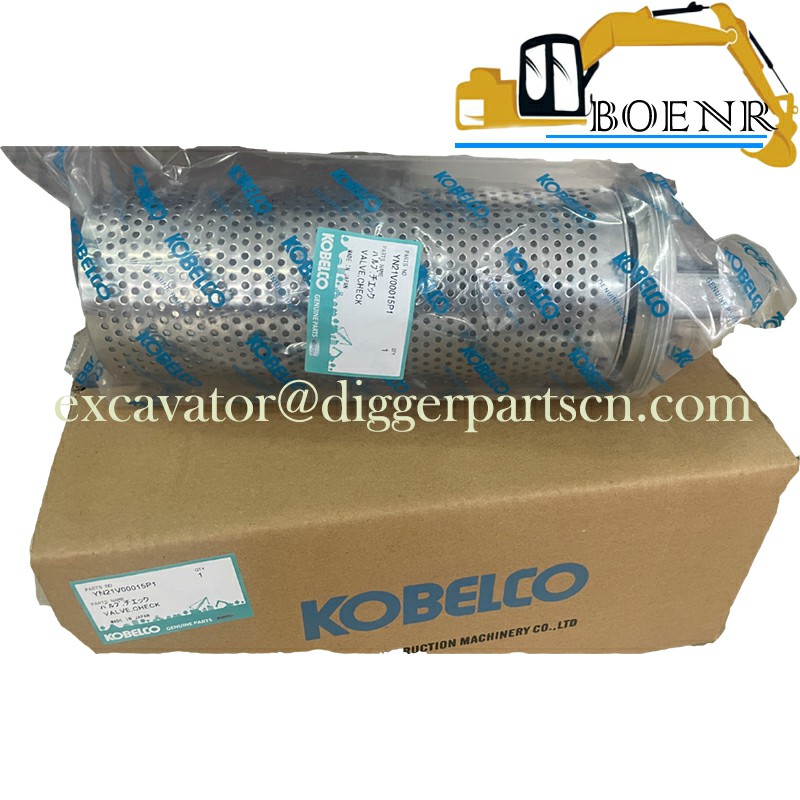

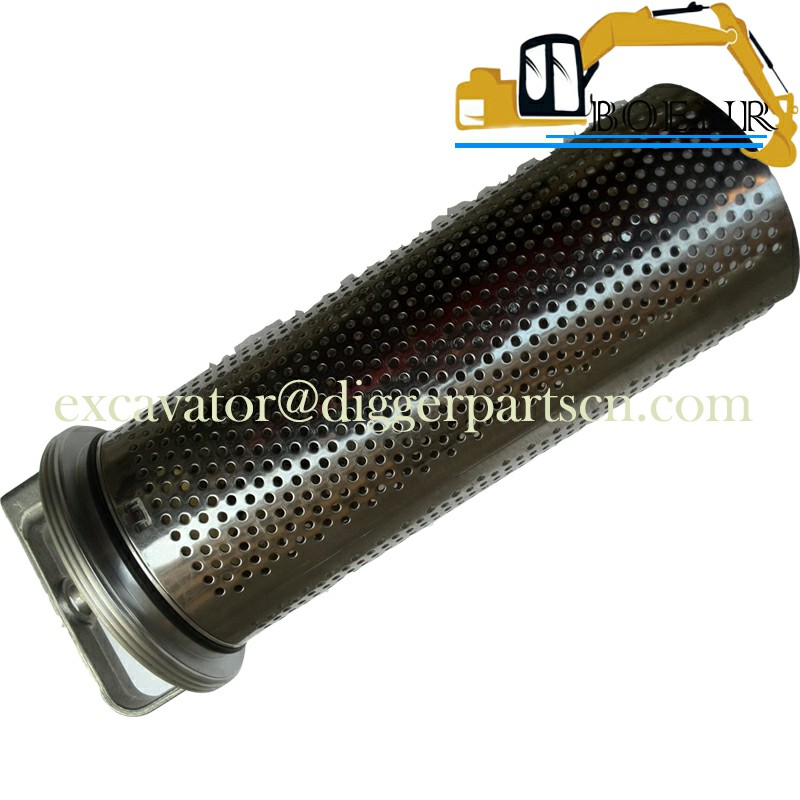

YN21V00015P1 check valve For SK200-8 SK210-8 SK250-8 SK260-8
SK200-8 SK210-8 SK250-8 SK260-8 check valve YN21V00015P1
| Part Name | check valve | Part Number | YYN21V00015P1 |
| Brand | Kobelco, Kobeki | Applicable Model | SK200-8 SK210-8 SK250-8 SK260-8 |
Weight: 2 kg

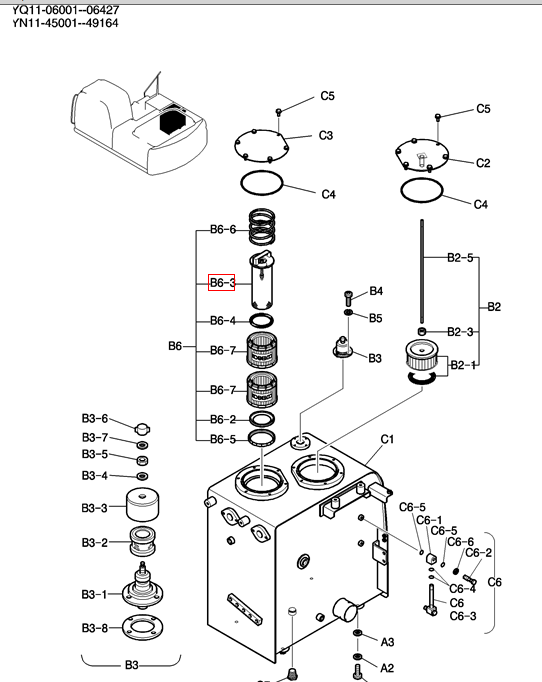

Image: Component Installation Diagram
Parts Catalog
| ITEM | QTY | PART NUMBER | PART NAME |
| C7 | 1 | ZE72X08000 | PLUG |
| C6-6 | 2 | NSS | NOT SERVICED SEPARATELY Washer |
| C6-5 | 4 | NSS | NOT SERVICED SEPARATELY O-Ring |
| C6-4 | 4 | NSS | NOT SERVICED SEPARATELY O-Ring |
| C6-3 | 1 | NSS | NOT SERVICED SEPARATELY Gauge |
| C6-2 | 2 | NSS | NOT SERVICED SEPARATELY Capscrew |
| C6-1 | 2 | NSS | NOT SERVICED SEPARATELY Block |
| C6 | 1 | YN58S00009F1 | GAUGE Assy, Level |
| C5 | 12 | ZM73C10025 | BOLT Sems |
| C4 | 2 | ZD11G19000 | O-RING |
| 1 | YN33H00083P1 | TANK , ASN YN11-49165 | |
| 1 | YN33H00083P1 | TANK , ASN YQ11-06428 | |
| C3 | 1 | YN33H01259P1 | COVER |
| C2 | 1 | YN33H01261P1 | COVER |
| 1 | YN33H00078P1 | TANK , BTW YN11-46920 & YN11-49164 | |
| 1 | YN33H00078P1 | TANK , BTW YQ11-06161 & YQ11-06427 | |
| C1 | 1 | YN33H00072P1 | TANK , BTW YN11-45001 & YN11-46919 |
| C1 | 1 | YN33H00072P1 | TANK , BTW YQ11-06001 & YQ11-06160 |
| AR | YN33H00057F1 | TANK Assy | |
| 1 | YN52V01008R600 | ELEMENT Kit Consists Of Ref. (b6-4)x1, (b6-5)x1, | |
| B6-7 | 2 | YN52V01011P1 | FILTER Element |
| B6-6 | 1 | LC33H01009P1 | SPRING |
| B6-5 | 1 | YN52V01008S005 | PACKING |
| B6-4 | 1 | ZD11G09000 | O-RING |
| B6-3 | 1 | YN21V00015P1 | CHECK VALVE |
| B6-2 | 1 | YN52V01008S002 | PLATE |
| B6 | 1 | YN52V01008F3 | ELEMENT Filter |
| B5 | 4 | ZW26K06000 | LOCK WASHER |
| B4 | 4 | ZS28C06016 | SCREW Cap |
| B3-8 | 1 | 2446U260S8 | PACKING |
| B3-7 | 1 | NSS | NOT SERVICED SEPARATELY Seal |
| B3-6 | 1 | 2446U260S10 | NUT |
| B3-5 | 1 | NSS | NOT SERVICED SEPARATELY Nut |
| B3-4 | 1 | NSS | NOT SERVICED SEPARATELY Seal |
| B3-3 | 1 | NSS | NOT SERVICED SEPARATELY Cover |
| B3-2 | 1 | YN57V00004S002 | ELEMENT Filter |
| B3-1 | 1 | NSS | NOT SERVICED SEPARATELY Body Assy |
| B3 | 1 | YN57V00004F1 | BREATHER Assy |
| B2-5 | 1 | YW50V00004S005 | BOLT |
| B2-3 | 1 | ZN11C10008 | NUT |
| B2-1 | 1 | YN50V00002S001 | STRAINER ASSY. (with O-ring) |
| B2 | 1 | YW50V00004F7 | FILTER STRAINER Assy, Suction |
| AR | YN33H00056F1 | Hyd | |
| A3 | 3 | LE33H01017D1 | SHIM (1. 0) |
| A2 | 4 | ZW13H16000 | WASHER |
| A1 | 4 | ZS13C16040 | SCREW Cap |
| AR | YN33H00058F1 | TANK Instal, Hyd | |
| AR | YN33H00070F1 | Instal, Hyd |
