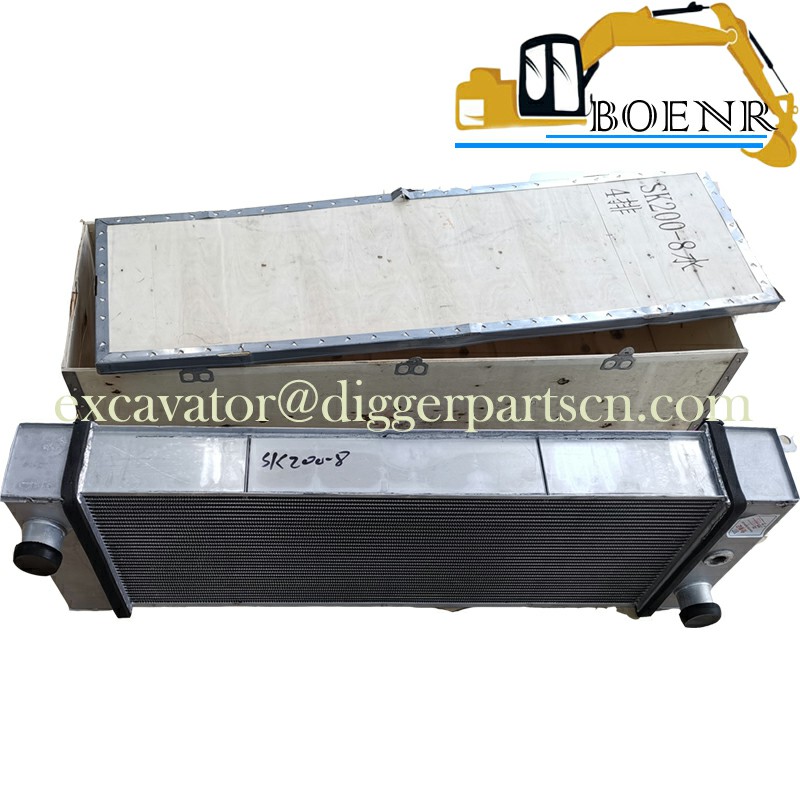

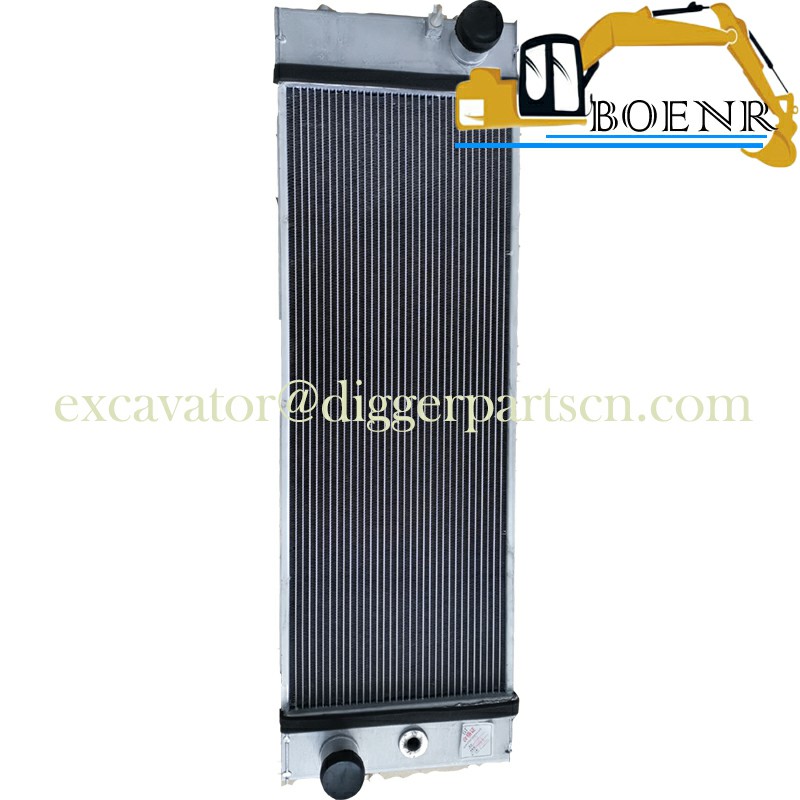

YN05P00058S036 YN05P00058S038 YN05P00058S001 Water Tank Radiator For SK200-8 SK210-8
SK200-8 SK210-8 Water Tank Radiator YN05P00058S036 YN05P00058S038 YN05P00058S001
| Part Name | Radiator | Part Number | YN05P00058S036 YN05P00058S038 YN05P00058S001 |
| Brand | Kobelco、Kobeki | Applicable Model | SK200-8 SK210-8 |
Weight:26KG

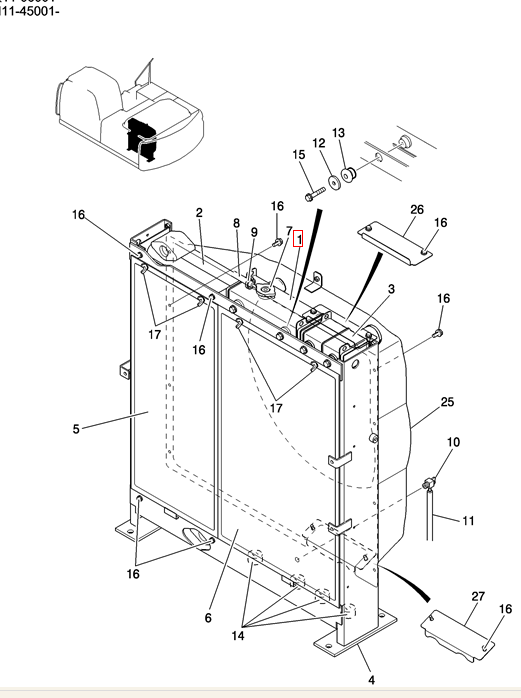

Parts Catalog
| ITEM | QTY | Part Number | Part Name |
| 35 | 2 | YN05P00058S035 | RUBBER SEAL , ASN YN11-48167 |
| 34 | 2 | YN05P00058S034 | RUBBER SEAL , ASN YN11-48167 |
| 34 | 2 | YN05P00058S034 | RUBBER SEAL , ASN YQ11-06272 |
| 33 | 2 | YN05P00058S033 | RUBBER SEAL , ASN YN11-48167 |
| 33 | 2 | YN05P00058S033 | RUBBER SEAL , ASN YQ11-06272 |
| 32 | 2 | YN05P00058S032 | GASKET Rubber , ASN YN11-48167 |
| 32 | 2 | YN05P00058S032 | GASKET Rubber , ASN YQ11-06272 |
| 35 | 2 | YN05P00058S035 | RUBBER SEAL , ASN YQ11-06272 |
| 30 | 2 | YN05P00058S030 | INSULATION , BTW YN11-45001 & YN11-48166 |
| 30 | 2 | YN05P00058S030 | INSULATION , BTW YQ11-06001 & YQ11-06271 |
| 29 | 2 | YN05P00058S029 | INSULATION , BTW YN11-45001 & YN11-48166 |
| 29 | 2 | YN05P00058S029 | INSULATION , BTW YQ11-06001 & YQ11-06271 |
| 31 | 2 | YN05P00058S031 | PACKING Insulation |
| 28 | 2 | YN05P00058S028 | INSULATION , BTW YN11-45001 & YN11-48166 |
| 28 | 2 | YN05P00058S028 | INSULATION , BTW YQ11-06001 & YQ11-06271 |
| 27 | 1 | YN05P00058S027 | PLATE |
| 26 | 1 | YN05P00058S026 | PLATE |
| 25 | 1 | YN05P00058S025 | SHROUD |
| 24 | 1 | YN05P00058S024 | INSULATION |
| 23 | 1 | YN05P00058S023 | INSULATOR |
| 22 | 1 | YN05P00058S022 | INSULATOR |
| 21 | 2 | YB05P00001S022 | INSULATING PANEL |
| 20 | 2 | YN05P00058S020 | INSULATION |
| 19 | 2 | YN05P00058S019 | INSULATOR |
| 18 | 2 | YN05P00058S018 | INSULATION |
| 17 | 4 | 2452U202S5 | BOLT Wing |
| 16 | 16 | 2452U377S6 | CAP Screw |
| 15 | 4 | ZM22C10030 | BOLT Sems |
| 14 | 4 | YN05P00058S014 | SEAT CUSHION Mount, Rubber |
| 13 | 4 | YN05P00058S013 | SEAT CUSHION Mount, Rubber |
| 12 | 4 | YN05P00058S012 | COLLAR |
| 11 | 1 | 2452U416S6 | PIPE Drain |
| 10 | 1 | 2452U221S18 | DRAINCOCK/TAP SUPPLY |
| 9 | 2 | 2452U267S8 | CLIP |
| 8 | 1 | LC05P00011S026 | FLEXIBLE HOSE |
| 7 | 1 | YN05P00010S006 | CAP |
| 6 | 1 | YN05P00058S006 | GUARD |
| 5 | 1 | YN05P00058S005 | GUARD |
| 4 | 1 | YN05P00058S004 | SUPPORT |
| 3 | 1 | YN05P00058S003 | COOLER Air |
| 2 | 1 | YN05P00058S002 | OIL COOLER |
| 1 | YN05P00058F2 | RADIATOR Assy, ASN YN11-48167 | |
| 1 | YN05P00058F2 | RADIATOR Assy, ASN YQ11-06272 | |
| 1 | 1 | YN05P00058S001 | RADIATOR Assy |
| 1 | YN05P00058F1 | RADIATOR Assy, BTW YN11-45001 & YN11-48166 | |
| 1 | YN05P00058F1 | RADIATOR Assy, BTW YQ11-06001 & YQ11-06271 |
