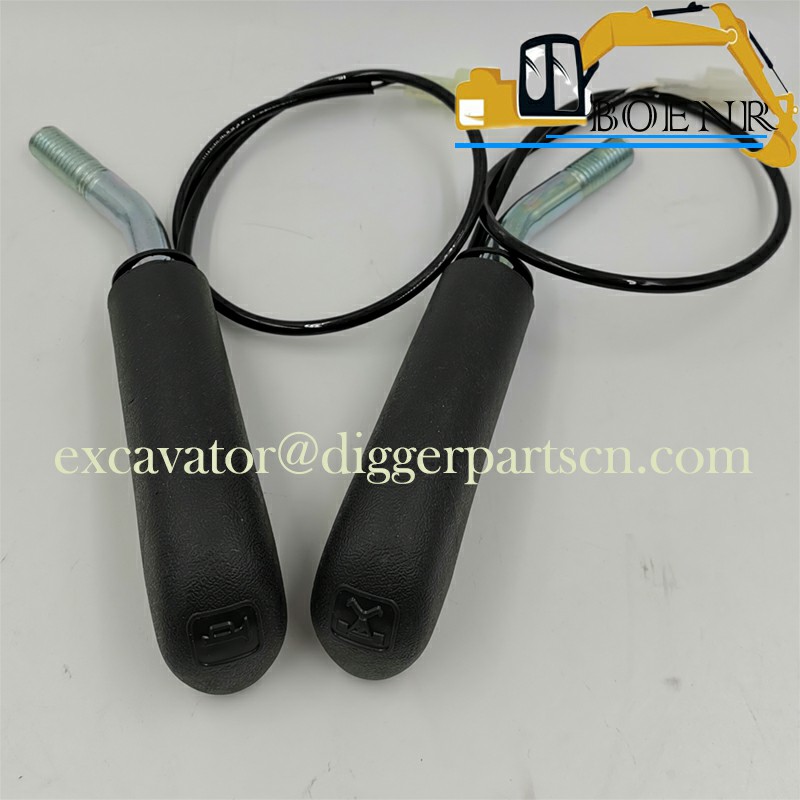

YN03M02021F1 YN03M02021F2 Operator Rod Grip For SK200-8 SK210-8 SK250-8 SK260-8 SK215SR SK235SR
SK200-8 SK210-8 SK250-8 SK260-8 SK215SR SK235SR Operator Rod Grip YN03M02021F1 YN03M02021F2
| Part Name | Operator Rod Grip | Part Number | YN03M02021F1 YN03M02021F2 |
| Brand | Kobelco, Kobeki | Applicable Model | SK200-8 SK210-8 SK250-8 SK260-8 SK215SR SK235SR |
Weight: 0.5 kg

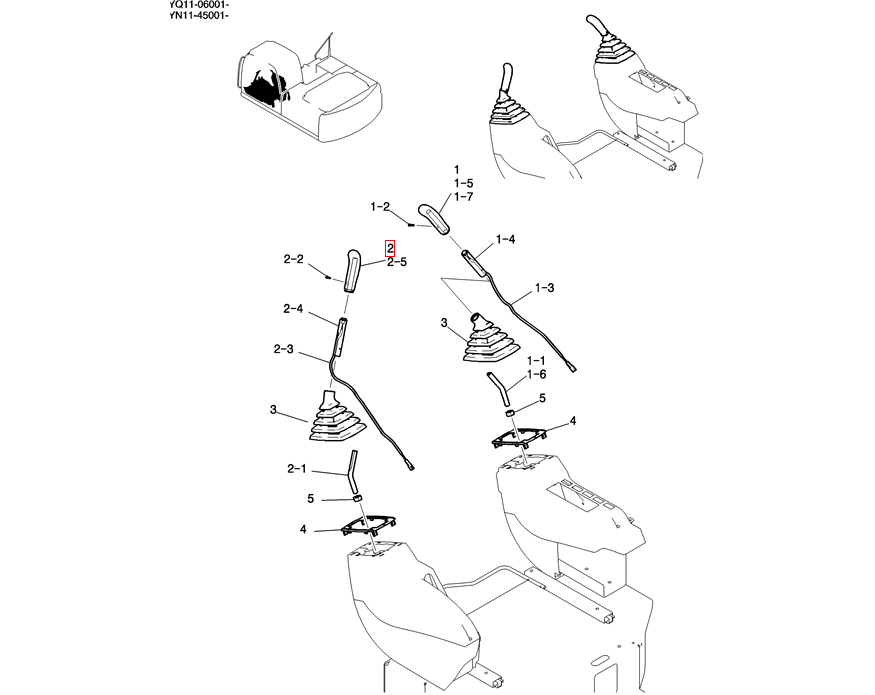

Parts Catalog
| ITEM | QTY | Part Number | Part Name |
| 5 | 2 | ZN18C14011 | NUT |
| 4 | 2 | YN03M01328P2 | PLATE |
| 3 | 2 | YN03M01498P1 | BELLOWS Boot |
| 2-5 | 1 | YN03M01867P1 | GRIP |
| 2-4 | 1 | YN03M01866P1 | CASE |
| 2 | 1 | YN03M02021F1 | HANDLE GRIP Assy , ASN YN11-48445 |
| 2 | 1 | YN03M02021F1 | HANDLE GRIP Assy , ASN YQ11-06341 |
| 2-3 | 1 | YN50E00017P1 | SWITCH ASSY Assy |
| 2-2 | 1 | YN03M02019P1 | SCREW Cap |
| 2-1 | 1 | YN03M01865P1 | LEVER |
| 2-5 | 1 | YN03M01867P1 | GRIP |
| 2-4 | 1 | YN03M01866P1 | CASE |
| 2-3 | 1 | YN50E00017P1 | SWITCH ASSY Assy |
| 2 | 1 | YN03M01862F1 | HANDLE GRIP Assy , BTW YN11-45001 & YN11-48444 |
| 2 | 1 | YN03M01862F1 | HANDLE GRIP Assy , BTW YQ11-06001 & YQ11-06340 |
| 2-2 | 1 | ZS31C04016 | SCREW Machine |
| 2-1 | 1 | YN03M01865P1 | LEVER |
| 1-7 | 1 | YN03M01863P1 | GRIP |
| 1-6 | 1 | YN03M01864P1 | LEVER |
| 1-4 | 1 | YN03M01866P1 | CASE |
| 1-3 | 1 | YN50E00017P1 | SWITCH ASSY Assy |
| 1 | 1 | YN03M02021F2 | HANDLE GRIP Assy , ASN YN11-48445 |
| 1 | 1 | YN03M02021F2 | HANDLE GRIP Assy , ASN YQ11-06341 |
| 1-2 | 1 | YN03M02019P1 | SCREW Cap |
| 1-5 | 1 | YN03M01863P1 | GRIP |
| 1-4 | 1 | YN03M01866P1 | CASE |
| 1-3 | 1 | YN50E00017P1 | SWITCH ASSY Assy |
| 1-2 | 1 | ZS31C04016 | SCREW Machine |
| 1-1 | 1 | YN03M01864P1 | LEVER |
| 1 | 1 | YN03M01861F1 | HANDLE GRIP Assy, BTW YN11-45001 & YN11-48444 |
| 1 | 1 | YN03M01861F1 | HANDLE GRIP Assy, BTW YQ11-06001 & YQ11-06340 |
| AR | YN03M01870F1 | GRIP Assy |
