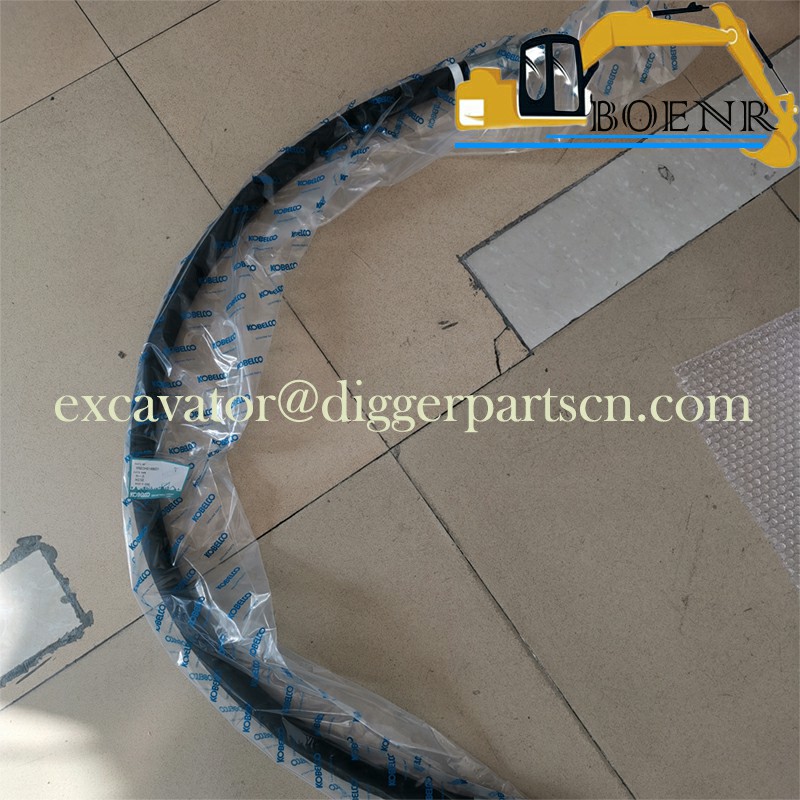

YN03H01886D1 Hydraulic hose For SK200-8 SK210-8 SK210-9
SK200-8 SK210-8 SK210-9 Hydraulic hose YN03H01886D1
| Part Name | hose | Part Number | YN03H01886D1 |
| Brand | Kobelco, Kobeki | Applicable Model | SK200-8 SK210-8 SK210-9 |
Weight: 3.5 kg

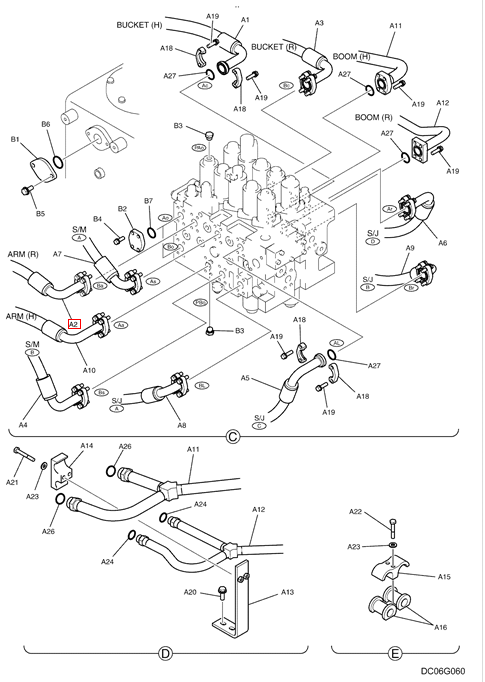

Parts Catalog
| ITEM | QTY | PARTS NO. | PART NAME |
| B7 | 2 | ZD12P03400 | O-RING |
| B6 | 1 | ZD12P04800 | O-RING |
| B5 | 2 | ZM73C12030 | BOLT Sems |
| B4 | 8 | HM83C10030G1 | BOLT Sems |
| B3 | 2 | ZE72X06000 | PLUG |
| B2 | 2 | ZE12Q16000 | PLUG |
| B1 | 1 | YN03H01884P1 | PLUG |
| AR | YN03H00126F1 | Hyd, Upper | |
| A27 | 12 | ZD12P03400 | O-RING |
| A26 | 2 | ZD12A02100 | O-RING |
| A25 | 2 | ZD12A01800 | O-RING |
| A24 | 2 | ZD12A01600 | O-RING |
| A23 | 6 | ZW16H10000 | WASHER |
| A22 | 4 | ZS18C10060 | SCREW Cap |
| A21 | 2 | ZS18C10075 | SCREW Cap |
| A20 | 2 | ZM73C12035 | BOLT Sems |
| A19 | 48 | HM83C10035G1 | BOLT Sems |
| A18 | 20 | ZE12X16000 | CLAMP Half |
| A17-1 | 1 | ZD12P02400 | O-RING |
| A17 | 2 | ZG23F12012 | ELEC CONNECTOR |
| A16 | 4 | YN03H01432P1 | BUSHING |
| A15 | 2 | YN03H01427P1 | CLAMP |
| A14 | 1 | YN03H01840P1 | CLAMP |
| A13 | 1 | YN03H01854P1 | SUPPORT |
| A12 | 1 | YN03H01852P1 | TUBE |
| A11 | 1 | YN03H01851P1 | TUBE |
| A10 | 1 | YN03H01889D1 | HOSE |
| A9 | 1 | YN03H01887D3 | HYDRAULIC HOSE |
| A8 | 1 | YN03H01887D2 | HYDRAULIC HOSE |
| A7 | 1 | YN03H01887D1 | HYDRAULIC HOSE |
| A6 | 1 | YN03H01886D5 | HYDRAULIC HOSE |
| A5 | 1 | YN03H01886D4 | HOSE |
| A4 | 1 | YN03H01886D3 | HYDRAULIC HOSE |
| A3 | 1 | YN03H01886D2 | HYDRAULIC HOSE |
| A2 | 1 | YN03H01886D1 | HYDRAULIC HOSE |
| A1 | 1 | YN03H01805D1 | HYDRAULIC HOSE |
| AR | YN03H00125F1 | Hyd, Upper | |
| AR | YN03H00122F1 | Hyd, Upper |
