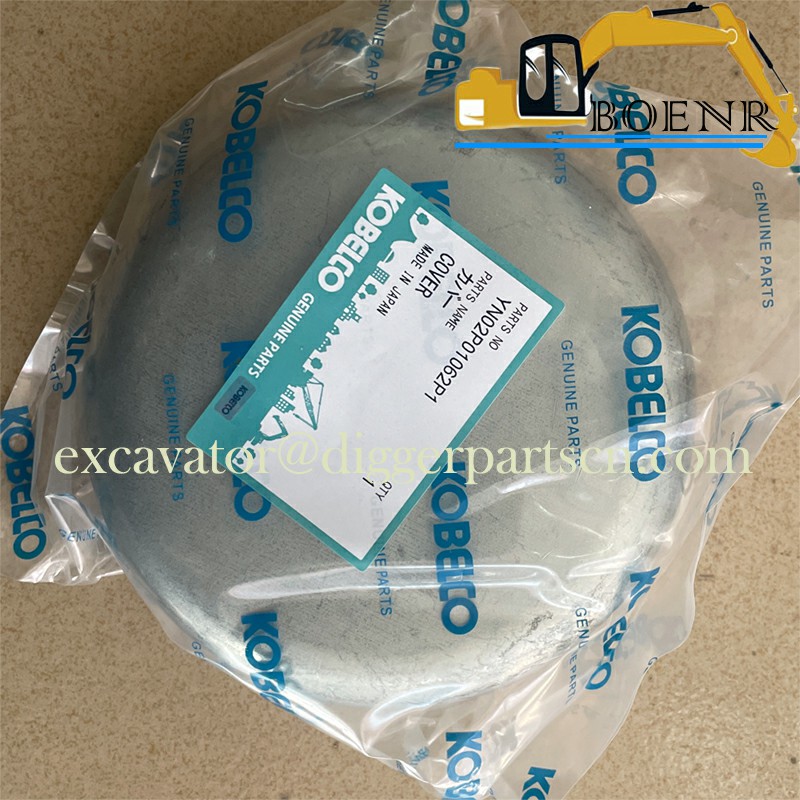

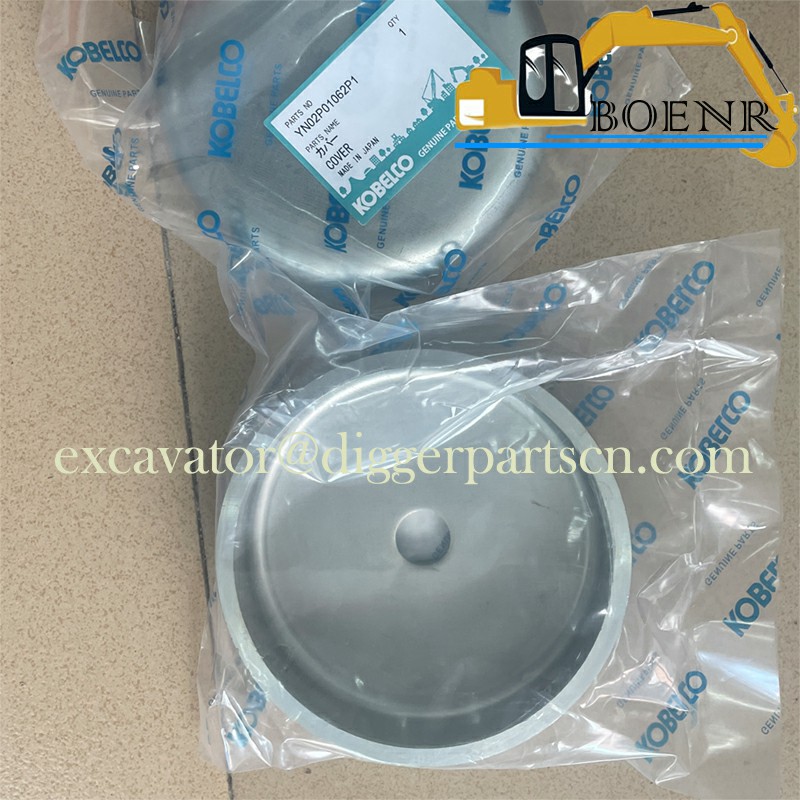

YN02P01062P1 Cover For SK200-8 SK210-8 SK215SR SK235SR
SK200-8 SK210-8 SK215SR SK235SR Cover YN02P01062P1
| Part Name | Cover | Part Number | YN02P01062P1 |
| Brand | Kobelco, Kobeki | Applicable Model | SK200-8 SK210-8 SK215SR SK235SR |
Weight: 0.2 kg

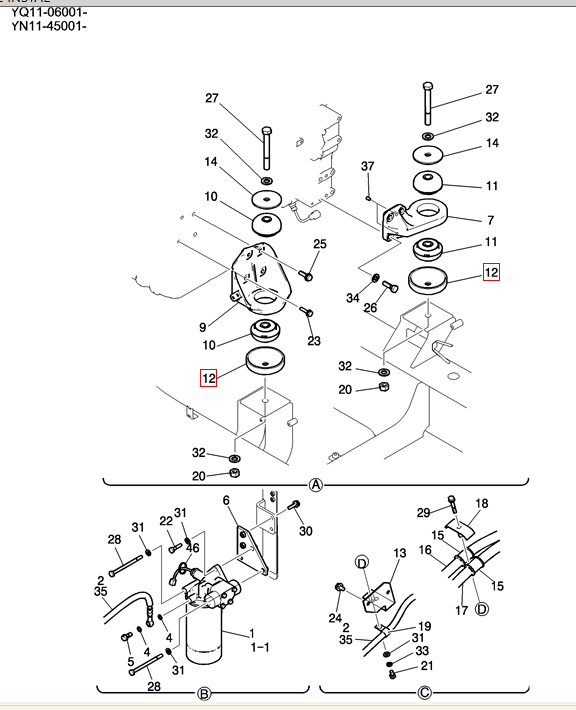

Image: Component Installation Diagra
Parts Catalog
| ITEM | QTY | Part Number | Part Name |
| 48 | 2 | VH906808300A | BOLT |
| 47 | 1 | VHS1138E0010 | ADAPTER |
| 1 | VH765672500A | LABEL (CHINESE) | |
| 1 | VH765671940A | LABEL (ENGLISH) | |
| 45 | 1 | VH765894090A | PLATE Label (JAPANESE) |
| 44 | 1 | VH985428101A | CLIP |
| 43 | 4 | VH924008087A | NUT |
| 42 | 4 | VH799042370A | CLIP |
| 41 | 2 | VH964402835A | O-RING |
| 40 | 1 | VHSZ40425001 | ELBOW |
| 38 | 1 | VH900236446A | HOSE |
| 37 | 4 | VH950414240A | PIN |
| 17 | 1 | VH444082130A | HOSE |
| 16 | 1 | VH23201E0010 | HOSE |
| 5 | 2 | VH901912108A | BOLT |
| 4 | 4 | VH965912111A | WASHER |
| 3 | 1 | VH973925105A | ELBOW |
| 2 | 1 | VH444082140A | HOSE |
| 1-1 | 1 | VH156072190A | ELEMENT |
| 1-1 | 1 | YN30T01001P1 | ELEMENT Filter, Oil E/g |
| 1 | 1 | VH156004110A | FILTER ASSY Oil |
| 46 | 1 | PY01P01043D2 | CLIP |
| 39 | 2 | PY01P01043D8 | CLIP |
| 36 | 1 | PY01P01043D5 | CLIP |
| 35 | 1 | HX81X15120DX | TUBE |
| 34 | 8 | ZW16H14000 | WASHER |
| 33 | 1 | ZW26X10000 | LOCK WASHER |
| 32 | 8 | ZW16H18000 | WASHER |
| 31 | 4 | ZW16P10000 | WASHER |
| 30 | 2 | ZM73C10035 | BOLT Sems |
| 29 | 1 | ZM22C10065 | BOLT Sems |
| 28 | 2 | HS18C10140G1 | SCREW Cap |
| 27 | 4 | ZS18C18150 | CAP |
| 26 | 8 | ZS18C14045 | CAP |
| 25 | 4 | ZM73C12040 | BOLT Sems |
| 24 | 2 | ZM73C12020 | BOLT Sems |
| 23 | 3 | ZM73C10040 | BOLT Sems |
| 22 | 1 | ZS18C10040 | SCREW Cap |
| 21 | 1 | ZS18C10020 | SCREW Cap |
| 20 | 4 | ZN18C18015 | NUT |
| 19 | 1 | ZC46X19011 | CLIP |
| 18 | 1 | YN02P01125P1 | CLAMP |
| 15 | 2 | YN02P01076P1 | BUSHING |
| 14 | 4 | YN02P01088P1 | PLATE |
| 13 | 1 | YN02P01115P1 | PLATE |
| 12 | 4 | YN02P01062P1 | COVER |
| 11 | 4 | YN02P01096P1 | ENGINE MOUNT Rubber |
| 10 | 4 | YN02P01095P1 | ENGINE MOUNT Rubber |
| 9 | 1 | YN02P01082P1 | BRACKET |
| 8 | 1 | YN02P01081P1 | BRACKET |
| 7 | 2 | YN02P01126P1 | BRACKET |
| 6 | 1 | YN02P01133P1 | BRACKET |
| AR | YN02P00031F1 | Instal |
