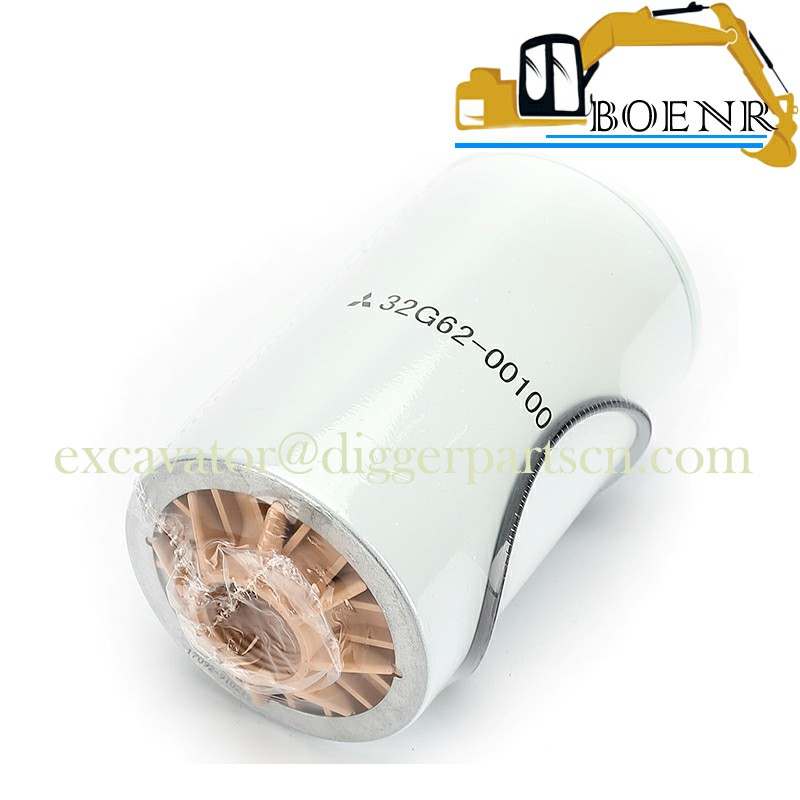

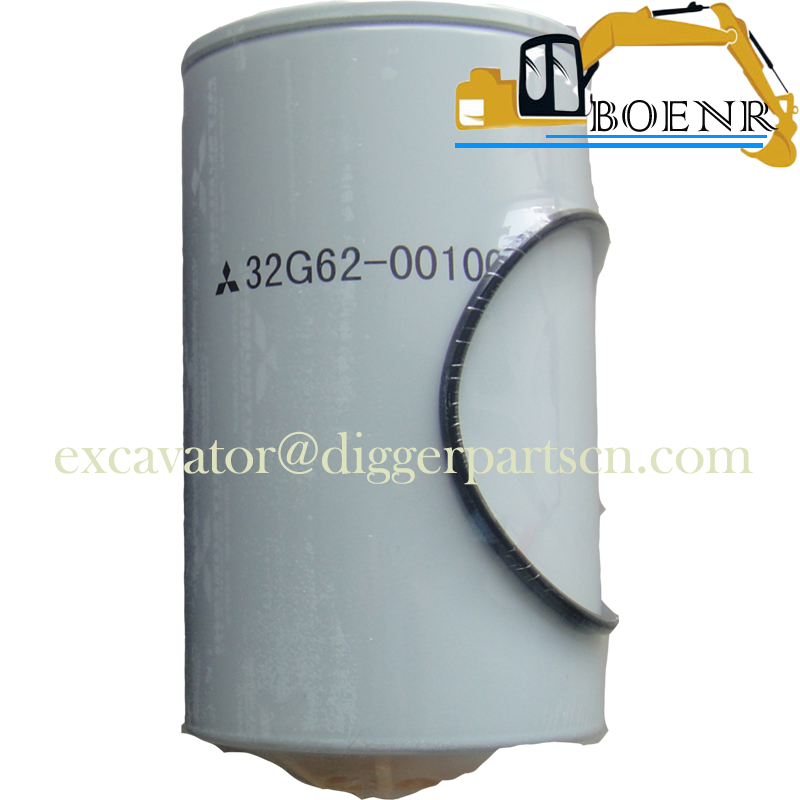

VA32G6200100 Fuel filter For SK130-8 SK140-8 SK135SR SK140SR
SK130-8 SK140-8 SK135SR SK140SR Fuel filter VA32G6200100
| Part Name | Fuel filter | Part Number | VA32G6200100 |
| Brand | Kobelco, kobeki | Applicable Model | SK130-8 SK140-8 SK135SR SK140SR |
Weight: 0.9KG

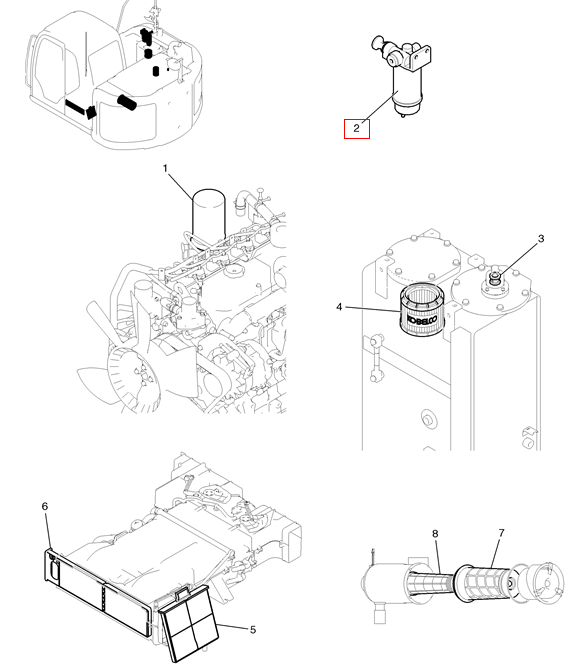

Parts Catalog
| ITEM | QTY | Part Number | Part Name |
| 8 | 1 | YY11P00008S002 | ELEMENT Air Filter Inner (Secondary) -- See Figure 02-09-01 |
| 7 | 1 | YY11P00008S003 | ELEMENT Air Filter Outer (Primary) -- See Figure 02-09-01 |
| 6 | 1 | YN50V01014P1 | CAB FILTER Air-Conditioner Element (Inner), 478.5x114x31mm |
| 5 | 1 | YN50V01015P3 | CAB FILTER Air-Conditioner Element (Outer), 201x187x17mm |
| YV52V01001R300 | ELEMENT Kit | ||
| 4 | 1 | YN52V01011P1 | FILTER Element (Standard) (Nibbler & Breaker), See Figure 02-13 |
| 3 | 1 | YN57V00004S002 | ELEMENT Filter Hydraulic Tank Breather, See Figure 02-13 |
| 2 | 1 | VA32G6200100 | ELEMENT Filter, Fuel |
| 1 | 1 | VA3424011101 | ENGINE OIL FILTER Filter, Mitsubishi Engine Oil |
