LC21C05112P1 LC21C04354P2 LC21C05111P1 Side door For SK330-10 SK350-10 SK380-10
SK330-10 SK350-10 SK380-10 Side door LC21C05112P1 LC21C04354P2 LC21C05111P1
| Part Name | Door | Part Number | LC21C05112P1 LC21C04354P2 LC21C05111P1 |
| Brand | Kobelco、Kobeki | Applicable Model | SK330-10 SK350-10 SK380-10 |
Weight: 30KG

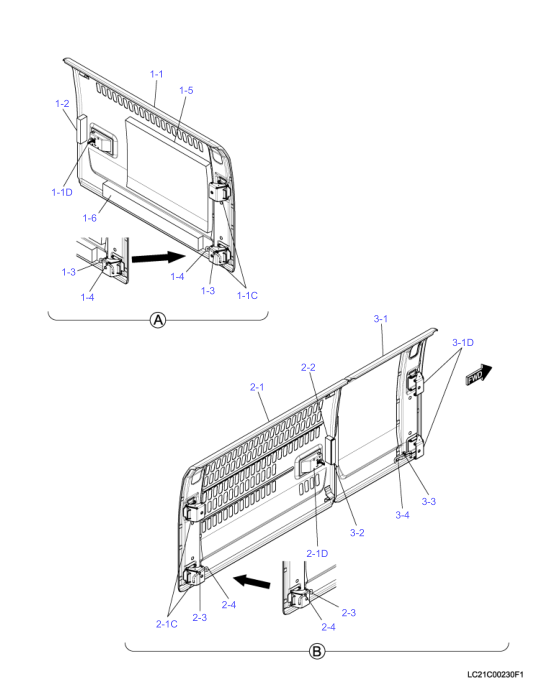

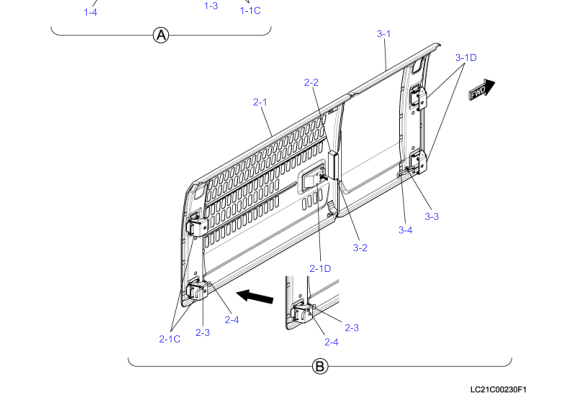

Image: Component Installation Diagram
Parts Catalog
| 参照 | 適用号機 | |||||
| ITEM | PART NO. | PART NAME | PART NAME | QTY | REFERENCE | APPLICABLE No. |
| . | YC14-B1001--B1560 | |||||
| . | YC14505001- | |||||
| LC21C00230F1 | GUARD INSTAL | ガードトリツケ | ||||
| . | ||||||
| 1 | LC21C04353F1 | PANEL ASSY | ﾊﾟﾈﾙｱｯﾃﾝ | 1 | YC14-B1001--B1560 | |
| . | YC14505001--05425 | |||||
| 1-1 | LC21C04354P2 | PANEL | ﾊﾟﾈﾙ | 1 | ||
| 1-1C | LQ21C03662P3 | HINGE | ﾐﾝｼﾞ | 2 | ||
| 1-1D | YN21C06245P1 | LOCK | ﾛｯｸ | 1 | ||
| 1-2 | LQ21C03670P1 | RUBBER | ﾗﾊﾞｰ | 1 | ||
| 1-3 | LQ21C03677P1 | STAY | ｽﾃｲ | 1 | ||
| 1-4 | YR21C01123P1 | CLIP | ｸﾘｯﾌﾟ | 1 | ||
| 1-5 | LC21C04663P1 | INSULATION | ｲﾝｼｬｧｬｬｰｼｮﾝ | 1 | ||
| 1-6 | LC21C04664P1 | INSULATION | ｲﾝｼｬｧｬｬｰｼｮﾝ | 1 | ||
| 1 | LC21C05106F1 | PANEL ASSY | ﾊﾟﾈﾙｱｯﾃﾝ | 1 | YC14505426- | |
| 1-1 | LC21C05111P1 | PANEL | ﾊﾟﾈﾙ | 1 | ||
| 1-1C | LQ21C04710P1 | HINGE | ﾐﾝｼﾞ | 2 | ||
| 1-1D | YN21C06245P1 | LOCK | ﾛｯｸ | 1 | ||
| 1-2 | LQ21C03670P1 | RUBBER | ﾗﾊﾞｰ | 1 | ||
| 1-3 | YR21C01123P1 | CLIP | ｸﾘｯﾌﾟ | 1 | ||
| 1-4 | LQ21C03677P1 | STAY | ｽﾃｲ | 1 | ||
| 1-5 | LC21C04663P1 | INSULATION | ｲﾝｼｬｧｬｬｰｼｮﾝ | 1 | ||
| 1-6 | LC21C04664P1 | INSULATION | ｲﾝｼｬｧｬｬｰｼｮﾝ | 1 | ||
| 2 | LC21C04703F1 | PANEL ASSY | ﾊﾟﾈﾙｱｯﾃﾝ | 1 | YC14-B1001--B1560 | |
| . | YC14505001--05425 | |||||
| 2-1 | LC21C04356P2 | PANEL | ﾊﾟﾈﾙ | 1 | ||
| 2-1C | LQ21C03662P3 | HINGE | ﾐﾝｼﾞ | 2 | ||
| 2-1D | YN21C06245P1 | LOCK | ﾛｯｸ | 1 | ||
| 2-2 | LQ21C03783P1 | RUBBER | ﾗﾊﾞｰ | 1 | ||
| 2-3 | LQ21C03677P1 | STAY | ｽﾃｲ | 1 | ||
| 2-4 | YR21C01123P1 | CLIP | ｸﾘｯﾌﾟ | 1 | ||
| 2 | LC21C05108F1 | PANEL ASSY | ﾊﾟﾈﾙｱｯﾃﾝ | 1 | YC14505426- | |
| 2-1 | LC21C05112P1 | PANEL | ﾊﾟﾈﾙ | 1 | ||
| 2-1C | LQ21C04710P1 | HINGE | ﾐﾝｼﾞ | 2 | ||
| 2-1D | YN21C06245P1 | LOCK | ﾛｯｸ | 1 | ||
| 2-2 | LQ21C03783P1 | RUBBER | ﾗﾊﾞｰ | 1 | ||
| 2-3 | YR21C01123P1 | CLIP | ｸﾘｯﾌﾟ | 1 | ||
| 2-4 | LQ21C03677P1 | STAY | ｽﾃｲ | 1 | ||
| 3 | LC21C04311F1 | PANEL ASSY | ﾊﾟﾈﾙｱｯﾃﾝ | 1 | YC14-B1001--B1560 | |
| . | YC14505001--05425 | |||||
| 3-1 | LC21C04895P1 | PANEL | ﾊﾟﾈﾙ | 1 | YC14-B1001--B1330 | |
| 3-1D | LQ21C03662P3 | HINGE | ﾐﾝｼﾞ | 2 | ||
| 3-1 | LC21C04979P1 | PANEL | ﾊﾟﾈﾙ | 1 | YC14-B1331- | |
| 3-1D | LQ21C03662P3 | HINGE | ﾐﾝｼﾞ | 2 | ||
| 3-2 | LQ21C03959P1 | RUBBER | ラバー | 1 | ||
| 3-3 | YR21C01123P1 | CLIP | クリップ | 1 | ||
| 3-4 | LQ21C03677P1 | STAY | ステイ | 1 | ||
| 3 | LC21C05109F1 | PANEL ASSY | パネルアッセン | 1 | YC14505426- | |
| 3-1 | LC21C05113P1 | PANEL | パネル | 1 | ||
| 3-1D | LQ21C04710P1 | HINGE | ヒンジ | 2 | ||
| 3-2 | LQ21C03959P1 | RUBBER | ラバー | 1 | ||
| 3-3 | YR21C01123P1 | CLIP | クリップ | 1 | ||
| 3-4 | LQ21C03677P1 | STAY | ステイ | 1 | ||
| 4 | LC21C04357P1 | PANEL | パネル | 1 | ||
| 5 | LC21C04691F1 | GUARD ASSY | ガードアッセン | 1 | YC14-B1001--B1560 | |
| . | YC14505001--05464 | |||||
| 5-1 | LC21C04693P1 | GUARD | ガード | 1 | ||
| 5-2 | YN21C06508P1 | PLATE | プレート | 3 | ||
| 5-3 | YN21C03168P1 | RIVET | リベット | 18 | ||
| 5 | LC21C05152P1 | GUARD | ガード | 1 | YC14505465- | |
| 6 | LC21C04692F1 | GUARD ASSY | ガードアッセン | 1 | YC14-B1001--B1560 | |
| . | YC14505001--05464 | |||||
| 6-1 | LC21C04696P1 | GUARD | ガード | 1 | ||
| 6-2 | YN21C06508P1 | PLATE | プレート | 5 | ||
| 6-3 | YN21C03168P1 | RIVET | リベット | 30 | ||
| 6 | LC21C05154P1 | GUARD | ガード | 1 | YC14505465- | |
| 7 | LC21C04111P1 | BRACKET | ブラケット | 1 | YC14-B1001--B1560 | |
| . | YC14505001--05317 | |||||
| 7 | LC21C05072P1 | BRACKET | ブラケット | 1 | YC14505318- | |
| 8 | LC21C04661P1 | BRACKET | ブラケット | 1 | YC14-B1001--B1560 | |
| . | YC14505001--05317 | |||||
| 8 | LC21C05074P1 | BRACKET | ブラケット | 1 | YC14505318- | |
| 9 | ZN18C12010 | NUT | ナット | 6 | ||
| 10 | ZW16H12000 | WASHER | ワッシャ | 6 | ||
| 11 | LQ21C02848P1 | WASHER | ワッシャ | 8 | YC14-B1001--B1560 | |
| . | YC14505001--05464 | |||||
| 11 | LS21C04785P1 | WASHER | ワッシャ | 8 | YC14505465- | |
| 12 | HY25X12040G1 | WASHER | ワッシャ | 4 | ||
| 13 | ZM73C12025 | SEMS-BOLT | セミスボルト | 15 | YC14-B1001--B1560 | |
| . | YC14505001--05317 | |||||
| 13 | ZM73C12025 | SEMS-BOLT | セミスボルト | 11 | YC14505318- | |
| 14 | ZM73C12030 | SEMS-BOLT | セミスボルト | 13 | YC14-B1001--B1560 | |
| . | YC14505001--05317 | |||||
| 14 | ZM73C12030 | SEMS-BOLT | セミスボルト | 17 | YC14505318- | |
| 15 | LQ21C04407P1 | BRACKET | ブラケット | 1 | ||
| 16 | LC21C03761P1 | BRACKET | ブラケット | 1 | ||
| 17 | LC21C04364P1 | PillAR | ピラー | 1 | YC14-B1001--B1560 | |
| . | YC14505001--05425 | |||||
| 17 | LC21C05102P1 | PILLAR | ピラー- | 1 | YC14505426- |
