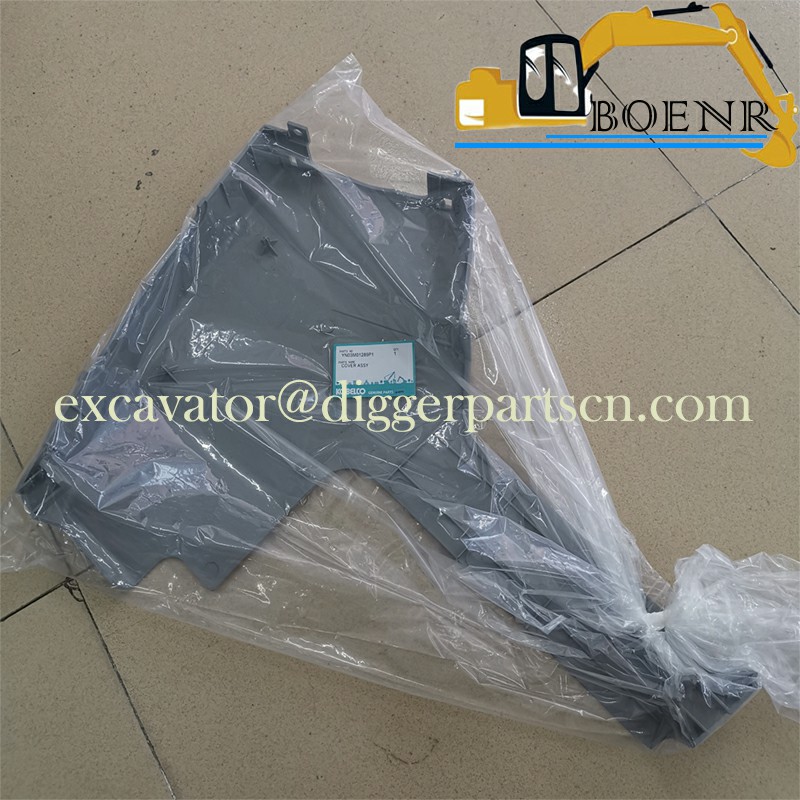

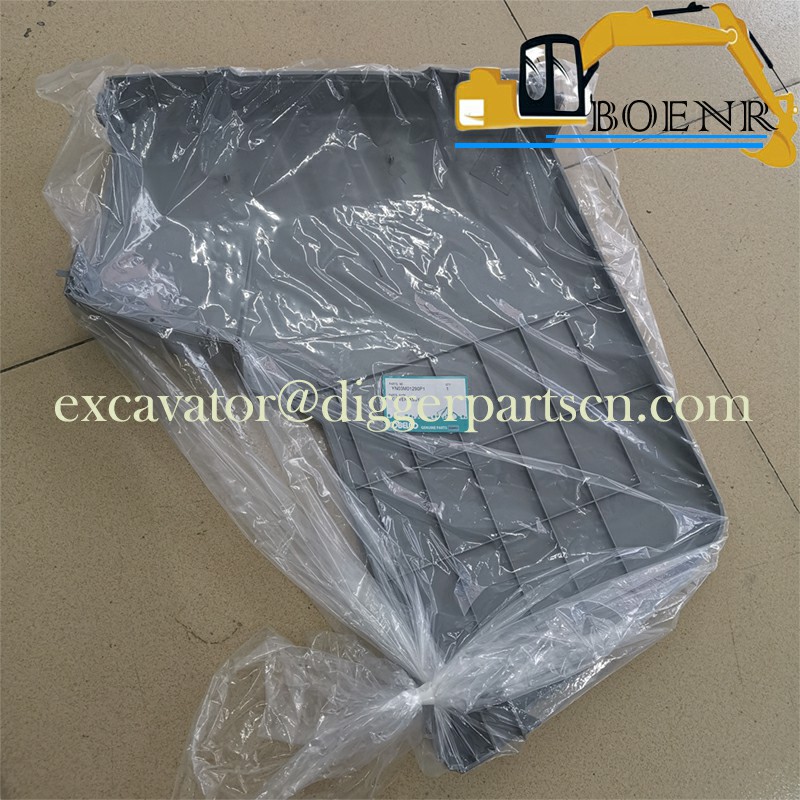

YN03M01289P1 YN03M01290P1 Armrest Side Panel for SK200-6 SK200-6E SK210-6E SK210-6 SK250-6E SK290-6E
SK200-6 SK200-6E SK210-6E SK210-6 SK250-6E SK290-6E SK330-6E SK480-6E Armrest Side Panel YN03M01289P1 YN03M01290P1
| Part Name | Armrest Side Panel | Part Number | YN03M01289P1 YN03M01290P1 |
| Brand | Kobelco Kobeki | Applicable Model | SK200-6 SK200-6E SK210-6E SK210-6 SK250-6E SK290-6E SK330-6E SK480-6E |
Weight: 3.5 kg
Parts Catalog
| ITEM | QTY | PARTS NO. | PART NAME |
| 20 | 2 | ZN18C14011 | NUT M14x2.0mm |
| 19 | 2 | 2420Z1232 | NUT M12x1.25mm |
| 18 | 4 | ZM22C10025 | BOLT M10x1.50x25mm (Incls. Washer & Lockwasher) |
| 17 | 4 | ZM22C10020 | BOLT M10x1.50x20mm (Incls. Washer & Lockwasher) |
| 16 | 6 | ZM46C06020 | BOLT M06x1.0x20mm (Incls. Washer & Lockwasher) |
| 15 | 1 | YN03M01159P1 | GROMMET |
| 14 | 1 | YN03M01040P1 | GRIP |
| 13-3 | 1 | YN03M01286S003 | CAP |
| 13-2 | 1 | YN03M01286S002 | SWITCH |
| 13-1 | 1 | YN03M01286S001 | GRIP |
| 13 | 1 | YN03M01286F1 | GRIP |
| 11-7 | 1 | YN03M01370P1 | BOLT M03x0.5x08mm (Incls. Washer) |
| 11-6 | 1 | YN50E00007P1 | SWITCH ASSY |
| 11-4 | 1 | YN03M01361P1 | LEVER LEVER |
| 11-1 | 1 | YN03M01358P1 | GRIP |
| 11 | 1 | YN03M01369F1 | GRIP |
| 10-7 | 1 | YN03M01370P1 | BOLT M03x0.5x08mm (Incls. Washer) |
| 10-6 | 1 | YN50E00007P1 | SWITCH ASSY |
| 10-5 | 1 | YN03M01362P1 | LEVER |
| 10-2 | 1 | YN03M01359P1 | GRIP |
| 10 | 1 | YN03M01369F2 | GRIP |
| 9 | 1 | YN03M01318P1 | PLATE |
| 8 | 2 | YN03M01328P2 | PLATE |
| 7 | 2 | YN03M01331P1 | BOOT |
| 6 | 1 | YN03M01290P1 | COVER |
| 5 | 1 | YN03M01289P1 | COVER |
| 4 | 1 | YN03M01288P1 | COVER |
| 3 | 1 | YN03M01287P1 | COVER |
| 2 | 1 | YN50M00004F1 | LEVER , P.108 |
| 1 | 1 | YN03M00042F1 | CONTROL BOX ASSY, P.104 |
| YN03M00043F1 | CONTROL CONTROLS, OPERATORS |
