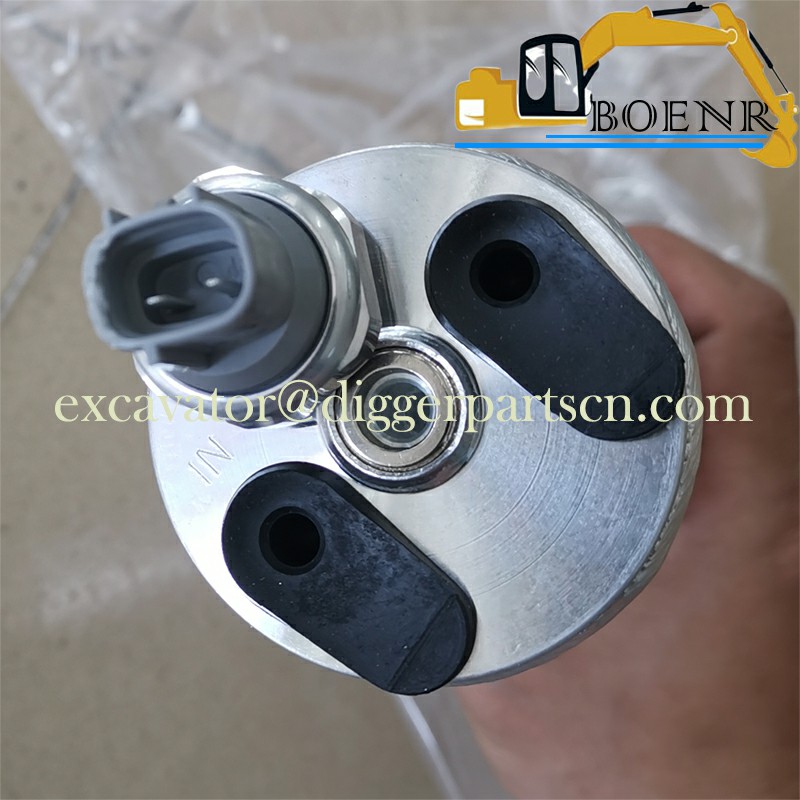

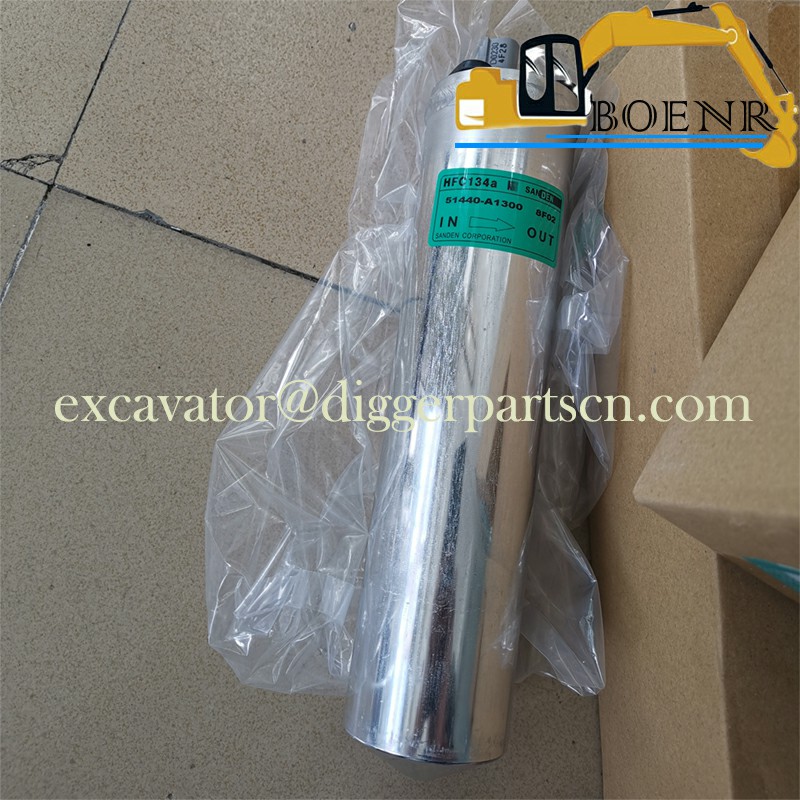

LQ54S00005P1 Dryer For SK200-10 SK210-10 SK250-10 SK260-10 SK230-10 SK270-10
SK200-10 SK210-10 SK250-10 SK260-10 SK230-10 SK270-10 SK350-8 SK350-9 Dryer LQ54S00005P1
| Part Name | Dryer | Part Number | LQ54S00005P1 |
| Brand | Kobelco, Kobeki | Applicable Model | SK250-8 SK260-8 SK460-8 SK485-8 SK350-8 SK350-9 |
Weight: 1 kg

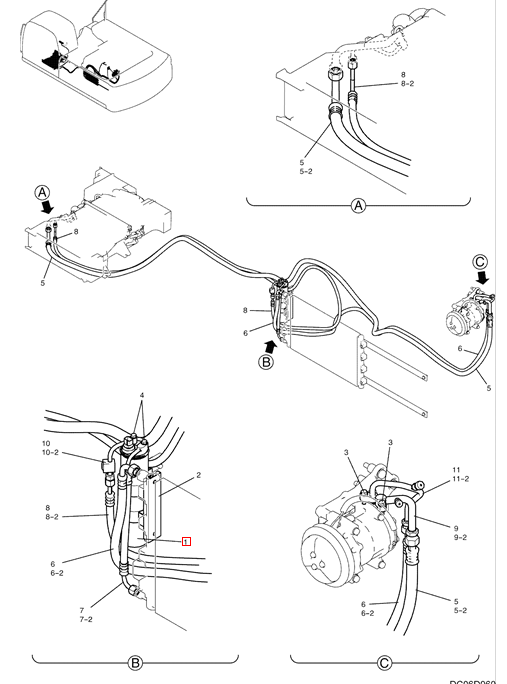

Parts Catalog
| ITEM | PARTS NO. | PART NAME | 部品名 | QTY |
| 4-1A | LQ20M01407S001 | HOSE ASSY | 木一77yt> | 1 |
| 4-1B | 2445Z1604D4 | O-RING | 2 | |
| 4-1C | YN20M01726P1 | CAP | y7 | 1 |
| 4-2 | YN20M01864F1 | HOSE ASSY | 木一77yt) | 1 |
| 4-2A | YN20M01864S001 | HOSE ASSY | 木一77yt) | 1 |
| 4-2B | 2445Z1604D5 | O-RING | 0- | 2 |
| 4-2C | YN20M01725P1 | CAP | 7 | 1 |
| 4-3 | LQ20M01408F1 | HOSE ASSY | 木-7了yt> | 1 |
| 4-3A | LQ20M01408S001 | HOSE ASSY | 木一7了yt> | 1 |
| 4-3B | 2445Z1604D6 | O-RING | O- | 2 |
| 4-4 | YT96V00001S009 | CAPSCREW | y77外1 | 2 |
| 4-5 | YT96V00001S010 | CAPSCREW | y77外1 | 2 |
| 4-6 | LQ20M01409F1 | HOSE ASSY | 木-7了yt> | 1 |
| 4-6A | LQ20M01409S001 | HOSE ASSY | 木-77yt9 | 1 |
| 4-6B | 2445Z1604D6 | O-RING | 2 | |
| 4-7 | LQ54S00005P1 | RECEIVER | D-八 | 1 |
| 4-8 | YN20M01469P1 | BRACKET | 7外 | 1 |
| LQ20M00087F1 | CONDITIONER ASSY.AIR | 3厅仪3升了yy，工7- | ||
| 1 | YX91V00001F1 | COMPRESSOR. AIR | 口7ly，工7- | 1 |
| 1-1 | LC91V00001S002 | PLATE | 7-卜 | 1 |
| 1-2 | YN91V01001S002 | PLATE | 7L-卜 | 1 |
| 1-3 | YN91V01001S003 | ROTOR | 口一夕 | 1 |
| 1-4 | LC91V00001S004 | ACCESSORIES | 7月7日 | 1 |
| 1-5 | YN91V01001S005 | COVER | 力八一 | 1 |
| 1-6 | YN91V01001S006 | COVER | 八一 | 1 |
| 1-7 | YN91V01001S007 | RING ASSY | 7yt | 1 |
| 2 | YN20M01696F1 | PULLEY ASSY | 7-17yt> | 1 |
| 3 | LQ20M01327F1 | CONDENSER | 1 | |
| 3-1 | LQ20M01327S001 | CONDENSER | 1 | |
| 3-2 | YT20M01215S002 | RUBBER | 八 | 4 |
| 3-3 | YT20M01215S003 | COLLAR | 4 | |
| 4 | YN96V00050F1 | DRYER ASSY, AIR | 下5代7，工7- | 1 |
| 4-1 | LQ20M01407F1 | HOSE ASSY | 木-77yt2 | 1 |
