LC30H01118P1 Hydraulic Hose For SK330-8 SK350-8 SK380-8

SK330-8 SK350-8 SK380-8 Hydraulic Hose LC30H01118P1

Part Name	Hose	Part Number	LC30H01118P1
Brand	Kobelco, Kobeki	Applicable Model	SK330-8 SK350-8 SK380-8

Weight: 3 kg

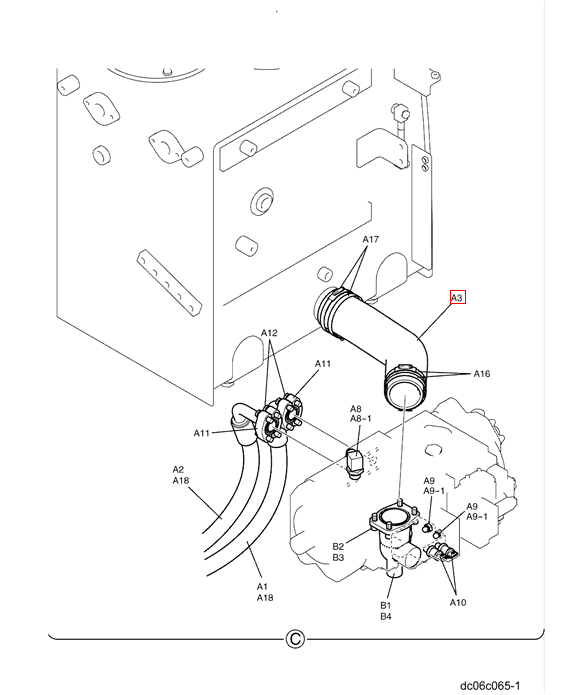

Parts Catalog

ITEM	QTY	Part Number	Part Name
B4	1	45Z91D104	O-RING ID 69.44 ± 0.38 OD 76.50mm
B3	4	ZW26K12000	LOCK WASHER ID 12 x OD 17.8 x Th 2.5mm
B2	4	ZS28C12030	CAP Screw -- M12x1.75x30mm
B1	1	YN30H01220P1	ELBOW Manifold
			Pump Hydraulic Lines, LC30H00028F1, Incls. Refs. B1 - B4
A18	4	ZD12P03400	O-RING ID 33.70 ± 0.33 x OD 40mm
A17	2	ZC16X10000	CLIP Clamp, Hose -- Min 87 x Max 113mm
A16	2	ZC16X09100	CLIP Clamp, Hose -- Min 80 x Max 101mm
A14	3	ZW16H12000	WASHER ID 13 x OD 26 x Th 3.2mm
A13	3	ZS18C12090	SCREW M12x1.75x90mm
A12	16	HM83C12040G1	BOLT M12x40mm
A11	8	ZE13X16000	FLANGE Clamp, Half -- (Incls. Capscrew & Lockwasher)
A10-1	1	ZD12P01400	O-RING (Part of YN52S00048P1), ID 13.80 ± 0.19 x OD 18mm, Not Shown
A10	2	LS52S00015P1	SENSOR Pressure (High Pressure) (Incls. O-Ring ZD12P01400) -- Used after date 12/31/2007 - Up
A10	2	YN52S00048P1	SENSOR Pressure (High Pressure) (Incls. O-Ring ZD12P01400), Used from Date 12/08/2006 - 12/31/2007
A9-1	1	ZD12P01100	O-RING (Part of ZE72X04000), ID 10.80 ± 0.18 x OD 15mm, Not Shown
A9	2	ZE72X04000	PLUG (PF 1/4) (Incls. O-Ring ZD12P01100)
A8-1	1	ZD12P02400	O-RING (Part ofZH32X12000), ID 23.70 ± 0.24 x OD 30mm, Not Shown
A8	1	ZH32X12000	HYD CONNECTOR Elbow, 90° -- 3/4 PF (Incls. O-Ring 237-6012)
A7	3	ZY26X06056	SPACER ID 12.7 x OD 17.3 x 56mm Long
A6	2	LC30H01120P1	RUBBER SLEEVE
A5	1	YN30H01215P1	PLATE
A4	1	YN30H01217P1	PLATE
A3	1	LC30H01118P1	HOSE 430mm Long (16-59/64 in)
A2	1	LC30H01094D1	HOSE 1430mm Long (56-19/64 in)
A1	1	LC30H01119D1	HOSE 1480mm Long (58-17/64 in)
			Pump Hydraulic Lines, LC30H00031F1, Incls. Refs. A1 - A18
