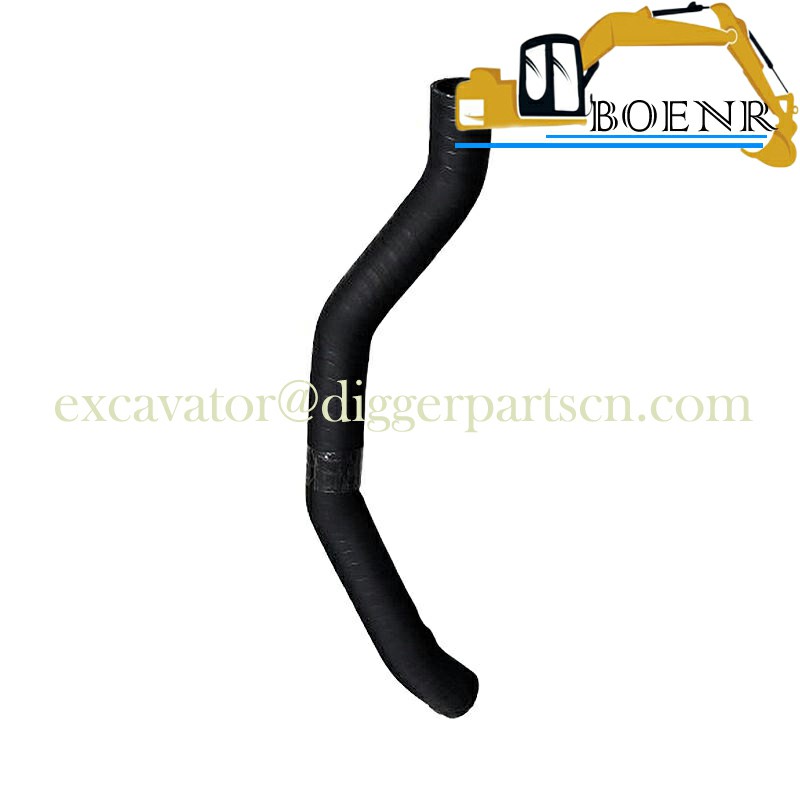

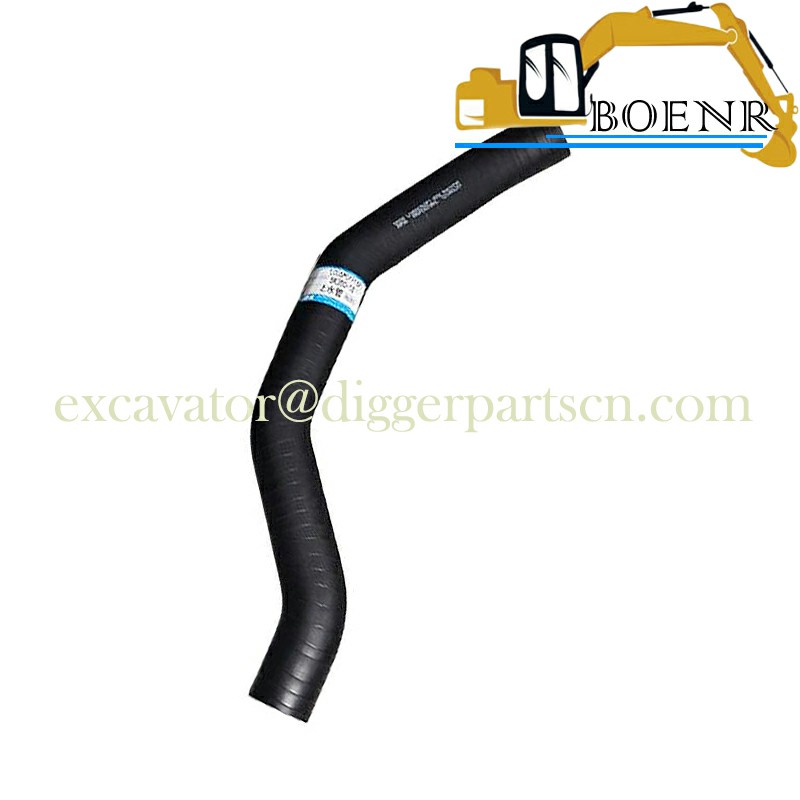

LC05P01916P1 Tank radiator hose For SK330-10 SK350-10 SK380-10
SK330-10 SK350-10 SK380-10 Tank radiator hose LC05P01916P1
| Part Name | hose | Part Number | LC05P01916P1 |
| Brand | Kobelco, Kobeki | Applicable Model | SK330-10 SK350-10 SK380-10 |
Weight: 2.5 kg
NO.2

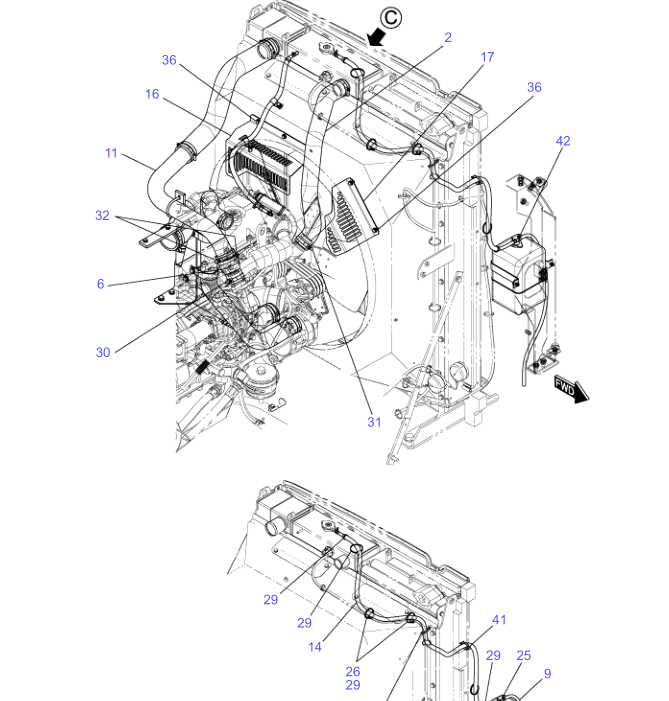

Parts Catalog
| Item No. | Part No. | Description | Qty |
| LC05P00077F1 | RADIATOR GROUP | ||
| 1 | LC05P01774F1 | TANK ASSY, WATER, SUB | 1 |
| 1-1 | LC05P01774S001 | TANK, WATER | 1 |
| 1-2 | LC05P01774S002 | CAP | 1 |
| 1-3 | Z4Z7U203S3 | PLATE, CAUTION | 2 |
| 2 | LC05P01916P1 | HOSE, RADIATOR | 1 |
| 3 | LC05P01848P1 | HOSE, RADIATOR | 1 |
| 4 | LC05P01846P1 | HOSE | 1 |
| 5 | LC05P01849P1 | HOSE | 1 |
| 6 | LC05P01355P1 | HOSE | 1 |
| 7 | LC05P01526P1 | HOSE | 1 |
| 8 | YN05P01725D1 | HOSE | 1 |
| 9 | HX11Y05088DX | HOSE | 1 |
| 11 | LC05P01360P1 | TUBE | 1 |
| 12 | LC05P01799P1 | TUBE | 1 |
| 13 | PU13E01002D8 | TUBE | 1 |
| 14 | HMX1X313S5DX | TUBE | 1 |
| 15 | HMX1X32012DX | TUBE | 1 |
| 16 | LC05P01802P1 | GUARD | 1 |
| 17 | LC05P01892P1 | GUARD | 1 |
| 18 | LC05P01523P1 | PLATE | 1 |
| 19 | LC05P01808P1 | BRACKET | 1 |
| 20 | LC05P01378F1 | SUPPORT ASSY | 1 |
| 20-1 | LC05P01379P1 | PLATE | 1 |
| 20-2 | Z416R259D1 | RUBBER, CUSHION | 1 |
| 21 | Z4Z0T2948D6 | U-BOLT | 1 |
| 22 | ZN18C0800T | NUT | 4 |
| 23 | ZM16H0800D | WASHER | 2 |
| 24 | LC05P01376P1 | CLIP | 2 |
| 25 | PH05P01088D5 | CLIP | 2 |
| 26 | YN13E01375P1 | CLIP | 2 |
| 28 | PY01P01043D2 | CLIP | 5 |
| 29 | PY01P01043D3 | CLIP | 7 |
| 30 | ZC16X09S00 | CLIP | 1 |
| 31 | ZC16X06100 | CLIP | 4 |
| 32 | ZC16X07000 | CLIP | 12 |
| 33 | ZC16X10000 | CLIP | 2 |
| 34 | ZC46X16011 | CLIP | 2 |
| 36 | ZM73C08016 | SEMS-BOLT | 7 |
| 38 | ZM73C08030 | SEMS-BOLT | 2 |
| 39 | ZM73C08020 | SEMS-BOLT | 2 |
| 40 | ZM73C10025 | SEMS-BOLT | 5 |
| 41 | YN03E01001D4 | CLIP | 1 |
| 42 | PH05P01088D6 | CLIP | 1 |
