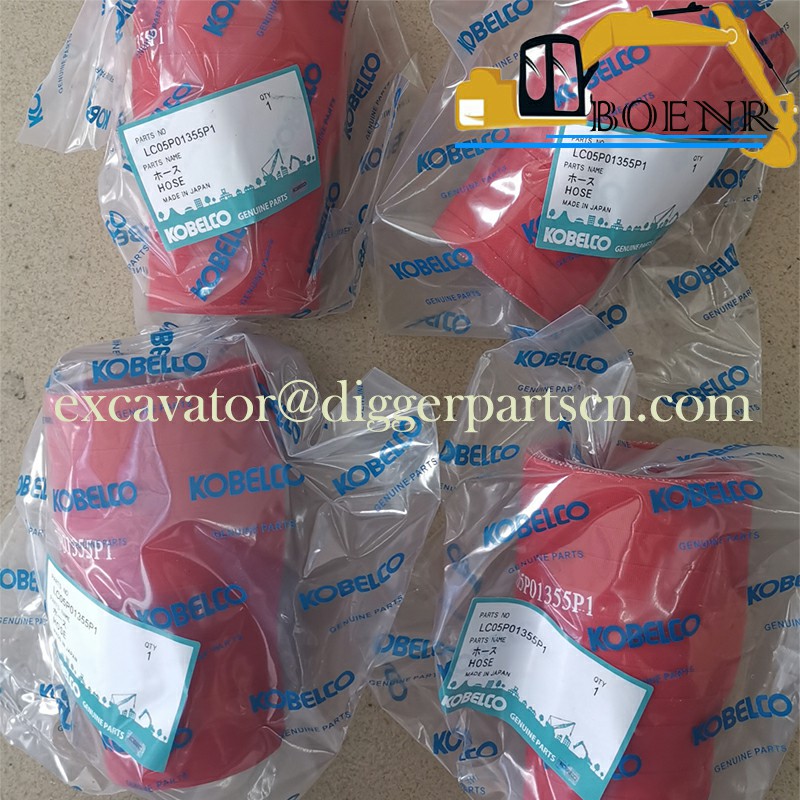

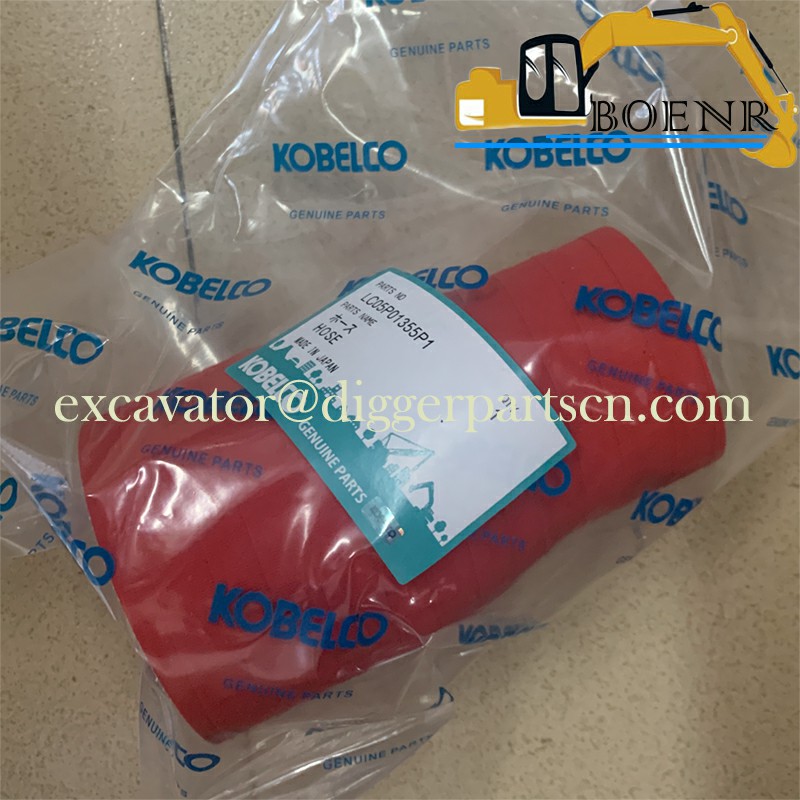

LC05P01355P1 Hose For SK330-8 SK350-8 SK380-8
SK330-8 SK350-8 SK380-8 Hose LC05P01355P1
| Part Name | Hose | Part Number | LC05P01355P1 |
| Brand | Kobelco, Kobeki | Applicable Model | SK330-8 SK350-8 SK380-8 |
Weight: 0.2 kg

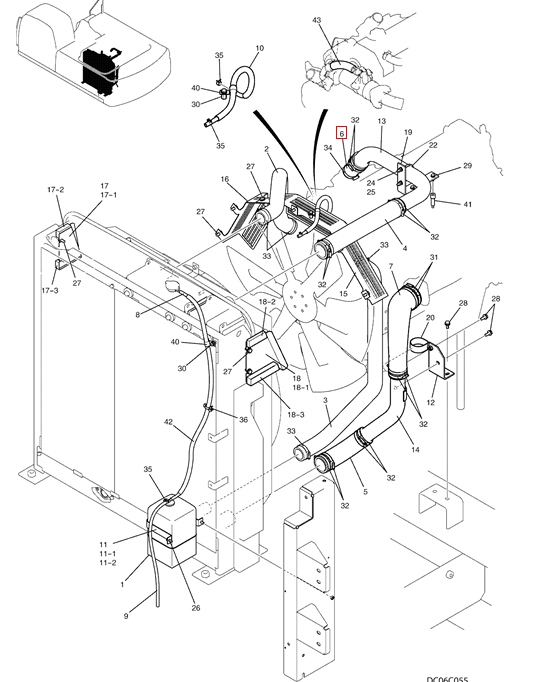

Parts Catalog
| ITEM | QTY | PARTS NO. | PART NAME |
| 45 | 1 | NO NUNBER | O-RING |
| 44 | 1 | NO NUMBER | SWITCH ASSY |
| 43 | 1 | HX81X32012DX | TUBE Ptrotective tube 120mm long, |
| 42 | 1 | HX81X13120DX | TUBE ID 13.2 x OD 17.5 x 1200mm Long (47-1/4 in) |
| 40 | 2 | ZC46X16011 | CLIP Clamp, Single Line -- ID 16.5 x 49mm Long |
| 36 | 1 | YN03E01001D5 | CLIP 195mm Long (7-43/64 in) -- Black |
| 35 | 3 | PH05P01088D5 | CLIP Clamp, Hose -- Min 11.5 x Max 13.6mm |
| 34 | 1 | ZC16X05800 | CLIP Clamp, Hose -- Min 50 x Max 66mm |
| 33 | 4 | ZC16X06100 | CLIP Clamp, Hose -- Min 50 x Max 71mm |
| 32 | 12 | ZC16X07000 | CLIP Clamp, Hose -- Min 60 x Max 81mm |
| 31 | 2 | ZC16X10000 | CLIP Clamp, Hose -- Min 87 x Max 113mm |
| 30 | 2 | ZM73C08016 | BOLT M08x1.25x16mm (Incls. Washer) |
| 2 | ZM73C08030 | BOLT M08x1.25x30mm (Incls. Washer) -- Used after date 10/08/2007 - Up | |
| 29 | 2 | ZM73C08025 | BOLT M08x1.25x25mm (Incls. Washer) -- Used from date 10/07/2005 - 10/08/2007 |
| 28 | 4 | ZM73C10025 | BOLT M10x1.50x25mm (Incls. Washer) |
| 27 | 10 | ZM73C10020 | BOLT M10x1.50x20mm (Incls. Washer) |
| 26 | 2 | ZM73C08020 | BOLT M08x1.25x20mm (Incls. Washer) |
| 25 | 2 | ZW16H08000 | WASHER ID 08 x OD 18 x Th 3.2mm |
| 24 | 4 | ZN18C08007 | NUT M08x1.25mm |
| 22 | 1 | 2420T2948D6 | U-BOLT M08x1.25x ID 64 x 100mm Long |
| 20 | 1 | LC05P01376P1 | CLIP ID 65 x 101.5mm Long |
| 1 | LC05P01523P1 | PLATE Plate -- Used after date 10/08/2007 - Up | |
| 19 | 1 | LC05P01366P1 | PLATE Used from date 10/07/2005 - 10/08/2007 |
| 18-3 | 1 | LC05P01443P1 | FOAM INSULATION |
| 18-2 | 1 | LC05P01442P1 | FOAM INSULATION |
| 18-1 | 1 | LC05P01441P1 | PLATE |
| 18 | 1 | LC05P01440F1 | PLATE ASSY |
| 17-3 | 1 | LC05P01432P1 | FOAM INSULATION |
| 17-2 | 1 | LC05P01431P1 | FOAM INSULATION |
| 17-1 | 1 | LC05P01430P1 | PLATE |
| 17 | 1 | LC05P01429F1 | PLATE ASSY |
| 1 | LC05P01531P1 | GUARD Guard -- Used after date 04/14/2008 | |
| 16 | 1 | LC05P01503P1 | GUARD Used before date 04/14/2008 |
| 1 | LC05P01530P1 | GUARD Guard -- Used after date 04/14/2008 | |
| 15 | 1 | LC05P01501P1 | GUARD Used before date 04/14/2008 |
| 14 | 1 | LC05P01425P1 | TUBE |
| 13 | 1 | LC05P01360P1 | TUBE |
| 12 | 1 | LC05P01427P1 | BRACKET |
| 11-2 | 1 | 2416R259D1 | CUSHION |
| 11-1 | 1 | LC05P01379P1 | PLATE |
| 11 | 1 | LC05P01378F1 | SUPPORT ASSY |
| 10 | 1 | HX81X13060DX | TUBE Protective tube 600mm long, |
| 9 | 1 | HX11Y05060DX | HOSE 600.00 mm |
| 8 | 1 | GB05P00001S006 | HOSE 25.40 mm ID x 2000.00 mm |
| 1 | LC05P01526P1 | HOSE Used after date 08/06/2007 - Up | |
| 1 | LC05P01423P2 | HOSE Used from date 02/21/2007 - 08/06/2007 | |
| 7 | 1 | LC05P01423P1 | HOSE Used from date 10/07/2005 - 02/21/2007 |
| 6 | 1 | LC05P01355P1 | HOSE |
| 5 | 1 | LC05P01424P1 | HOSE |
| 4 | 1 | LC05P01356P1 | HOSE |
| 3 | 1 | LC05P01422P1 | RADIATOR HOSE 49.00 mm ID x 415.00 mm |
| 2 | 1 | LC05P01464P1 | RADIATOR HOSE 49.00 mm ID x 359.00 mm |
| 1 | 1 | LC05P01381F1 | TANK WATER |
