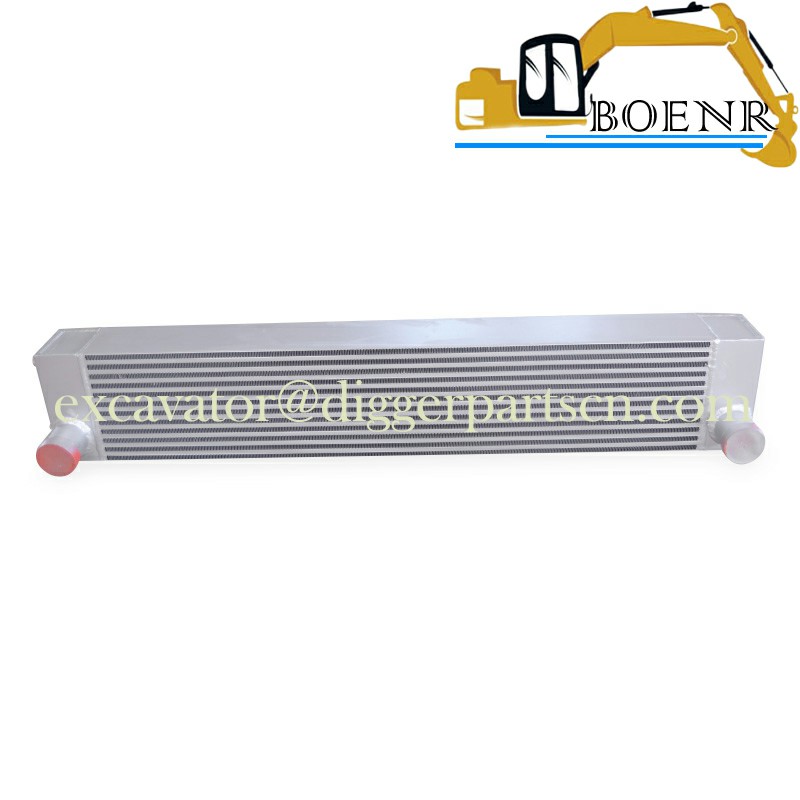

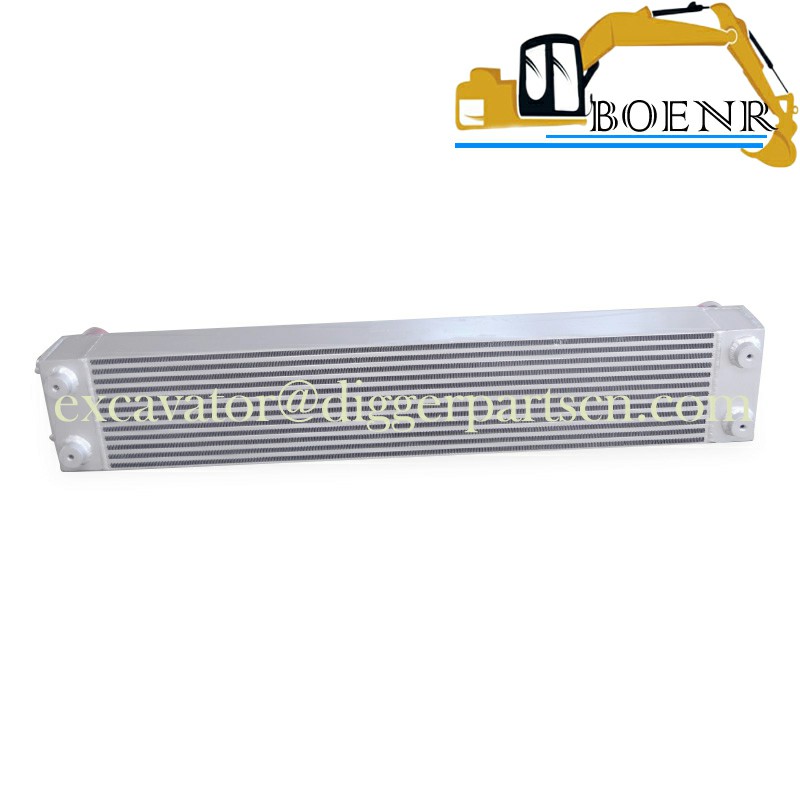

LC05P00043S003 Aircooler Radiator Assembly For SK330-8 SK350-8 SK380-8
SK330-8 SK350-8 SK380-8 Aircooler Radiator Assembly LC05P00043S003
| Part Name | Aircooler Radiator | Part Number | LC05P00043S003 |
| Brand | Kobelco、Kobeki | Applicable Model | SK330-8 SK350-8 SK380-8 |
Weight: 35KG

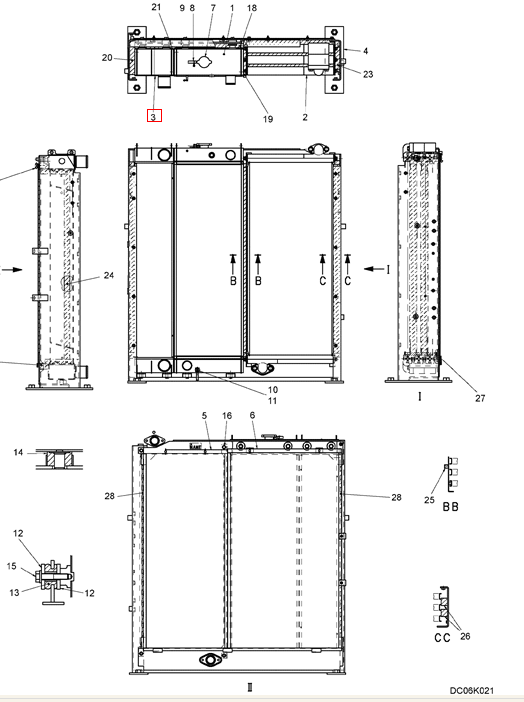

Image: Component Installation Diagram
Parts Catalog
| ITEM | QTY | Part Number | Part Name |
| 28 | 2 | LC05P00043S028 | INSULATOR |
| 27 | 1 | LC05P00043S027 | INSULATOR |
| 26 | 2 | LC05P00043S026 | INSULATOR |
| 25 | 1 | LC05P00043S025 | INSULATOR |
| 24 | 1 | LC05P00043S024 | INSULATOR |
| 23 | 1 | LC05P00043S023 | INSULATOR |
| 22 | 1 | LC05P00043S022 | INSULATOR |
| 21 | 4 | LC05P00043S021 | INSULATOR |
| 20 | 2 | LC05P00043S020 | INSULATOR |
| 19 | 2 | LC05P00043S019 | INSULATOR |
| 18 | 1 | LC05P00043S018 | INSULATOR |
| 17 | 4 | 2452U202S5 | BOLT M06x1.0 |
| 16 | 4 | 2452U377S6 | CAP Screw -- M06x1.0x112mm |
| 15 | 4 | LC05P00043S015 | SCREW ASSY |
| 14 | 4 | YN05P00058S014 | SEAT CUSHION MOUNT, RUBBER |
| 13 | 4 | LC05P00043S013 | SUPPORT MOUNT, RUBBER |
| 12 | 8 | LC05P00043S012 | WASHER |
| 11 | 1 | 2452U416S6 | PIPE |
| 10 | 1 | 2452U221S18 | DRAINCOCK/TAP SUPPLY |
| 9 | 2 | 2453U267S8 | O-RING CLIP |
| 8 | 1 | GB05P00001S006 | HOSE 25.40 mm ID x 2000.00 mm |
| 7 | 1 | YN05P00010S006 | CAP |
| 6 | 1 | LC05P00043S006 | GUARD |
| 5 | 1 | LC05P00043S005 | GUARD |
| 4 | 1 | LC05P00043S004 | SUPPORT |
| 3 | 1 | LC05P00043S003 | COOLER AIR |
| 2 | 1 | LC05P00043S002 | OIL COOLER |
| 1 | 1 | LC05P00043S001 | RADIATOR ASSY |
| LC05P00043F1 | RADIATOR ASSY |
