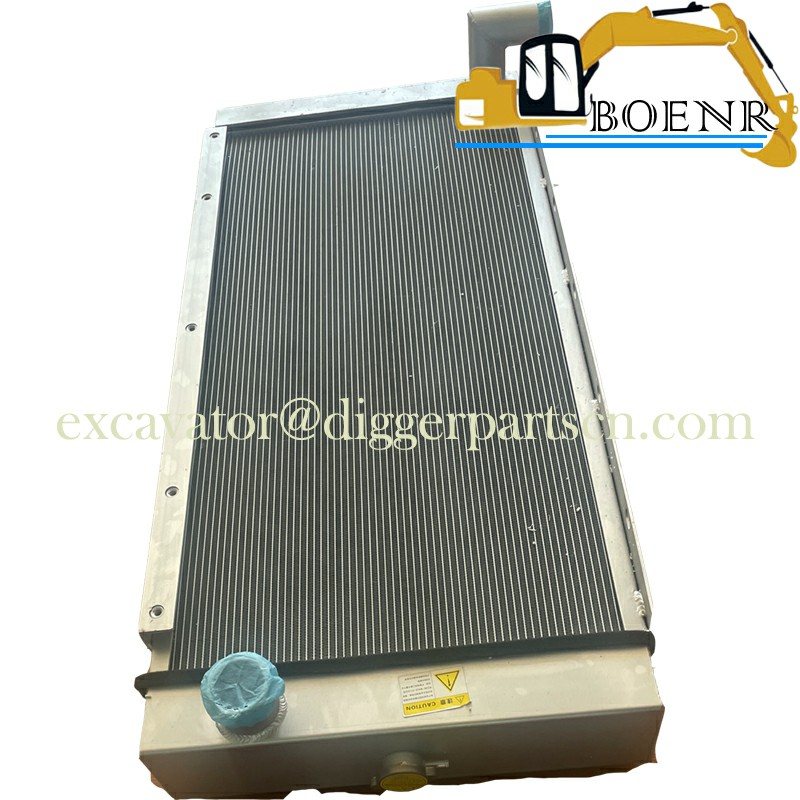

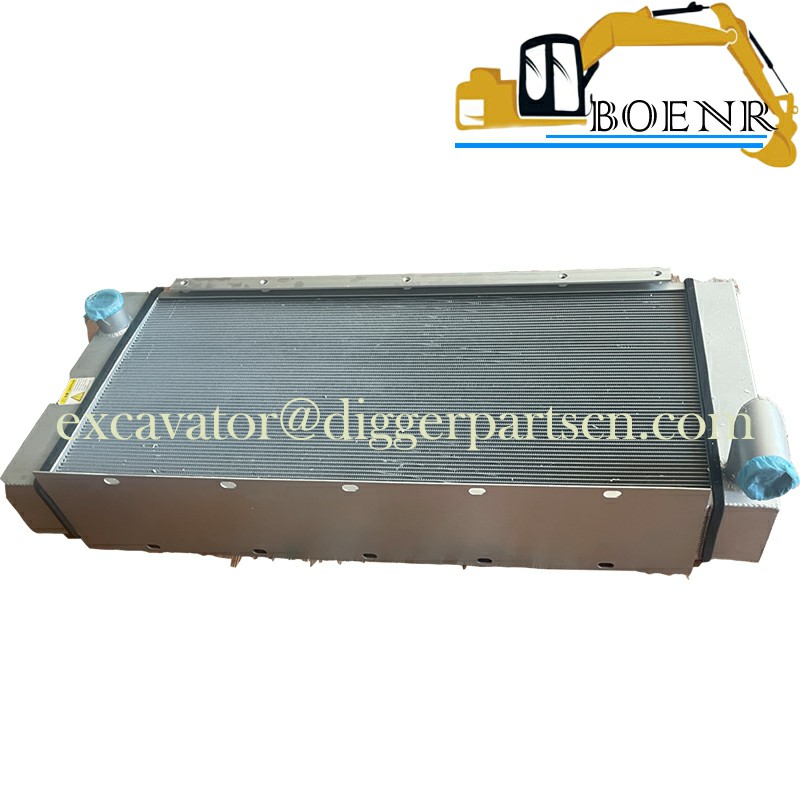

LC05P00010S001 Water Tank Radiator For SK330-6E SK330LC SK480LC
SK330-6E SK330LC SK480LC Water Tank Radiator LC05P00010S001
| Part Name | sensor | Part Number | LC05P00010S001 |
| Brand | Kobeki | Applicable Model | SK330-6E SK330LC SK480LC |
Weight: 85 kg

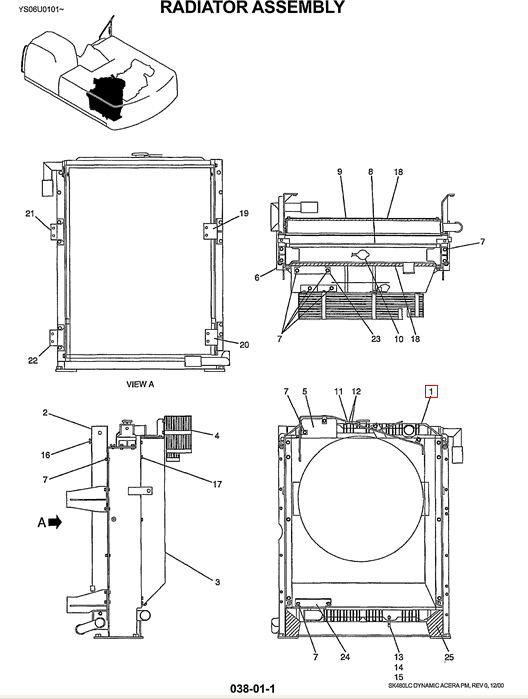

Parts Catalog
| ITEM | QTY | Part Number | Part Name |
| 25 | 2 | LS05P00006S025 | PACKING |
| 24 | 1 | LS05P00006S024 | PLATE |
| 23 | 1 | LC05P00010S023 | PLATE |
| 22 | 1 | LS05P00006S022 | BRACKET |
| 21 | 1 | LS05P00006S021 | U-BRACKET |
| 20 | 1 | LS05P00006S020 | BRACKET |
| 19 | 1 | LS05P00006S019 | U-BRACKET |
| 18 | 2 | LC05P00010S018 | PACKING |
| 17 | 10 | EZ05P00003S008 | SCREW ASSY |
| 16 | 4 | 2452U202S5 | BOLT M06x1.0 |
| 15 | 1 | 2452U377S25 | CLIP |
| 14 | 1 | 2452U255S8 | FLEXIBLE HOSE |
| 13 | 1 | 2452U221S18 | DRAINCOCK/TAP SUPPLY |
| 12 | 2 | 2452U267S8 | CLIP |
| 11 | 1 | 2452U255S5 | FLEXIBLE HOSE |
| 10 | 1 | 2452U221S111 | CAP Radiator |
| 9 | 1 | LS05P00006S009 | GUARD |
| 8 | 1 | LC05P00010S008 | GUARD |
| 7 | 28 | 2452U400S4 | BOLT |
| 6 | 1 | LS05P00006S006 | SUPPORT |
| 5 | 1 | LS05P00006S005 | BRACKET |
| 4 | 1 | LS05P00006S004 | GUARD |
| 3 | 1 | LS05P00006S003 | SHROUD |
| 2 | 1 | LS05P00006S002 | OIL COOLER |
| 1 | 1 | LC05P00010S001 | RADIATOR |
| AR | LS05P00006F1 | RADIATOR |
