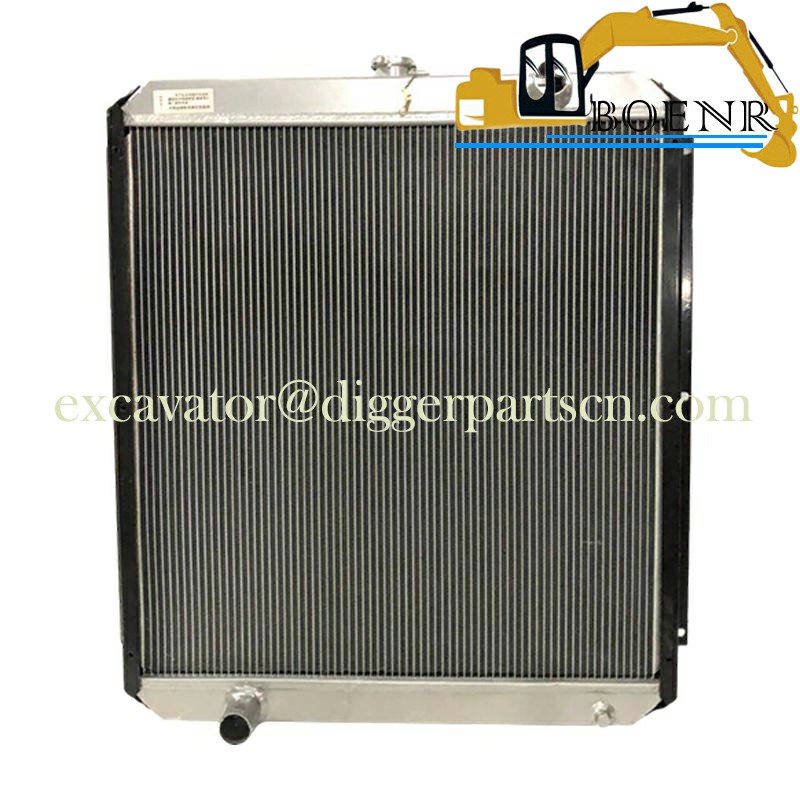

2452U426S1 Water Tank Radiator sk200-3
sk200-3 Water Tank Radiator 2452U426S1
| Part Name | Water Tank | Part Number | 2452U426S1 |
| Brand | kobeki | Applicable Model | sk200-3 |
Weight:12KG

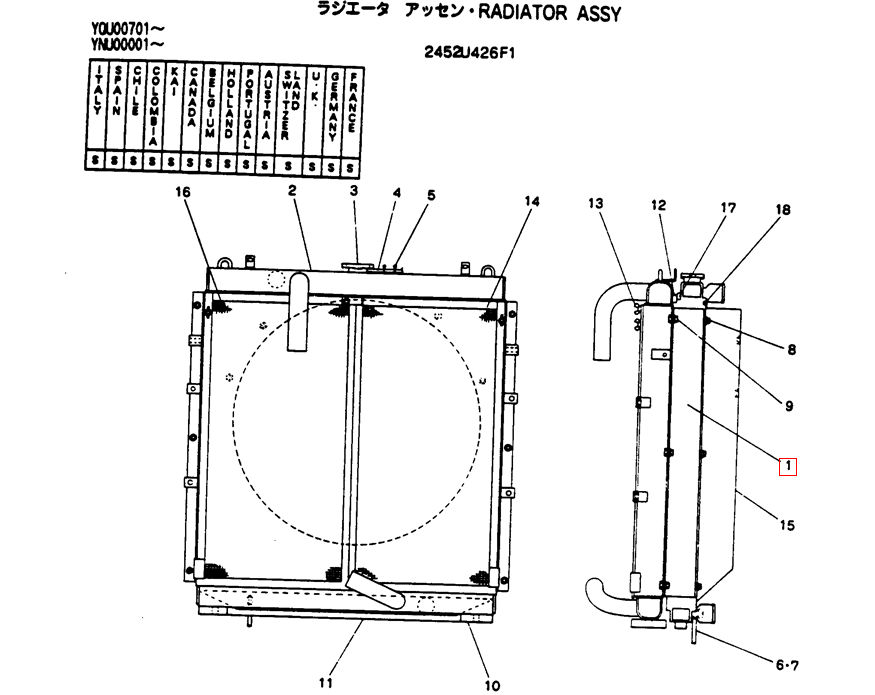

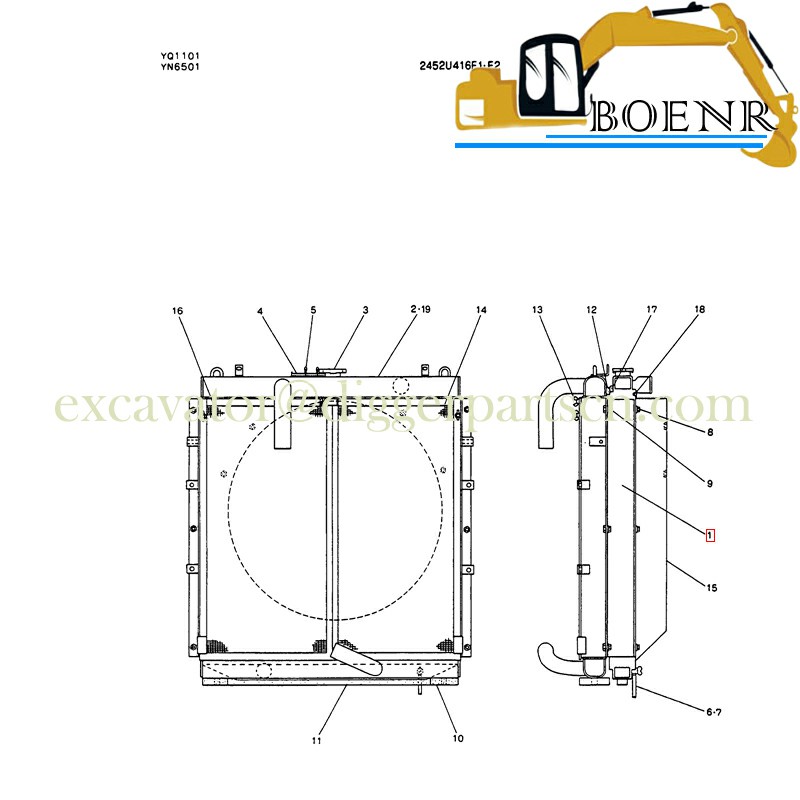

Parts Catalog
| ITEM | QTY | Part Number | Part Name |
| 18 | 2 | 2452U416S18 | PACKING |
| 17 | 1 | 2452U416S17 | PACKING |
| 16 | 1 | 2452U416S16 | PROTECTOR |
| 15 | 1 | 2452U416S15 | SHROUD |
| 14 | 1 | 2452U416S14 | PROTECTOR |
| 13 | 3 | 2452U221S4 | SCREW |
| 12 | 1 | 2452U416S12 | PACKING |
| 11 | 1 | 2452U416S11 | PACKING |
| 10 | 2 | 2452U416S10 | PACKING |
| 9 | 6 | 2452U400S4 | BOLT |
| 8 | 6 | 2452U221S1-2 | BOLT |
| 7 | 1 | 2452U255S7 | COCK |
| 6 | 1 | 2452U416S6 | PIPE |
| 5 | 2 | 2452U221S113 | CLIP |
| 4 | 1 | 2452U416S4 | HOSE |
| 3 | 1 | 2452U221S111 | CAP PRESS |
| 2 | 1 | 2452U416S19 | OIL COOLER |
| 1 | 1 | 2452U426S1 | RADIATOR ASSY |
| 2452U426F1 | RADIATOR |
