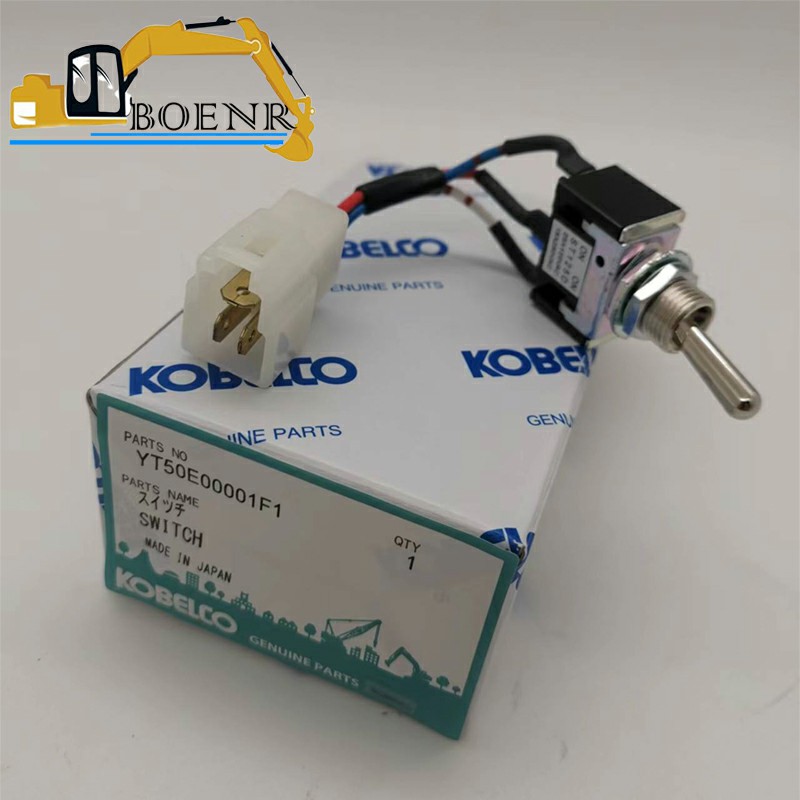

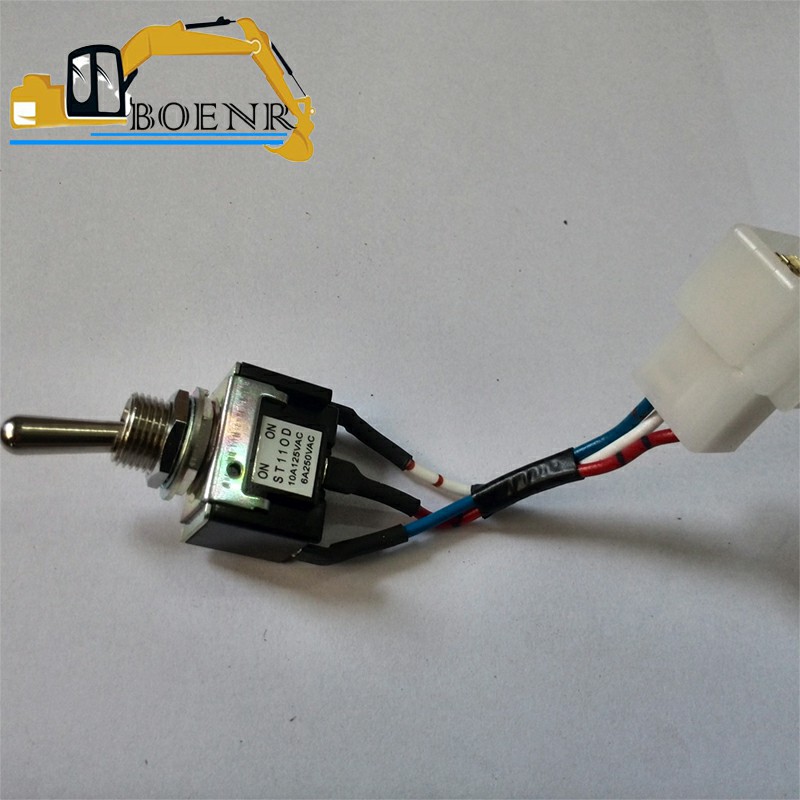

YN50S00047P1 YT50E00001F1 Swing Brake Release Switch For SK200-8 SK210-8 SK210-9 SK215SR SK235SR
SK200-8 SK210-8 SK210-9 SK215SR SK235SR SK250-8 SK260-8 SK260-9 SK295-8 SK350-8 Swing Brake Release Switch YN50S00047P1 YT50E00001F1
| Part Name | Switch | Part Number | YN50S00047P1 YT50E00001F1 |
| Brand | Kobelco | Applicable Model | SK200-8 SK210-8 SK210-9 SK215SR SK235SR SK250-8 SK260-8 SK260-9 SK295-8 SK350-8 |
Weight:0.3 kg

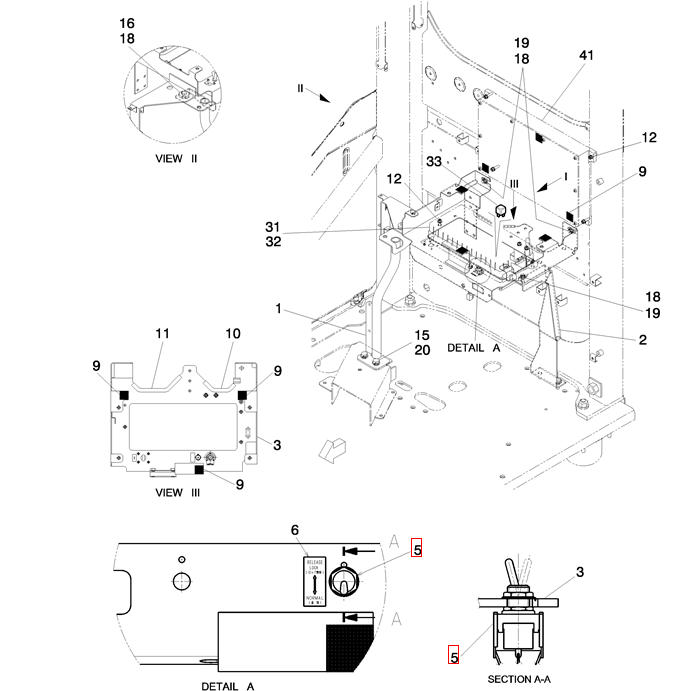

Parts Catalog
| ITEM | QTY | PART NUMBER | PART NAME |
| 1 | YN22E00425F1 | CONTROLLER Without Software | |
| 1 | YN22E00396F1 | CONTROLLER With Software | |
| Controller Assembly YN22E00396F1 | |||
| 33 | 1 | YN24S00010P1 | RELAY |
| 32 | 1 | YN73E01026P2 | DATA PLAQUE |
| 31 | 1 | YN24E00016F2 | RELAY Box Assy |
| RELAY BOX ASSY | |||
| 20 | 0 | NSS | NOT SERVICED SEPARATELY See Ref 15 |
| 19 | 3 | ZM73C08020 | BOLT M08x1.25x20mm (Incls. Washer) |
| 18 | 1 | YN02C02015P1 | WASHER |
| 16 | 1 | ZS18C08020 | SCREW M08x1.25x20mm |
| 15 | 4 | ZM73C10025 | BOLT M10x1.50x25mm (Incls. Washer) |
| 12 | 7 | ZM61C06025 | BOLT M06x1.0x25mm (Incls. Washer & Lockwasher) |
| 11 | 1 | PM22C01020DH | INSULATING PANEL |
| 10 | 1 | PM22C01020D7 | STRIP |
| 9 | 5 | YN22E01334P1 | COLLAR |
| 6 | 1 | YN22M01014P1 | LABEL |
| 5 | 1 | YN50S00047P1 | TOGGLE SWITCH |
| 3 | 1 | YN22E01357P1 | SUPPORT |
| 2 | 1 | YN22E01363P1 | SUPPORT |
| 1 | 1 | YN22E01322P1 | SUPPORT |
