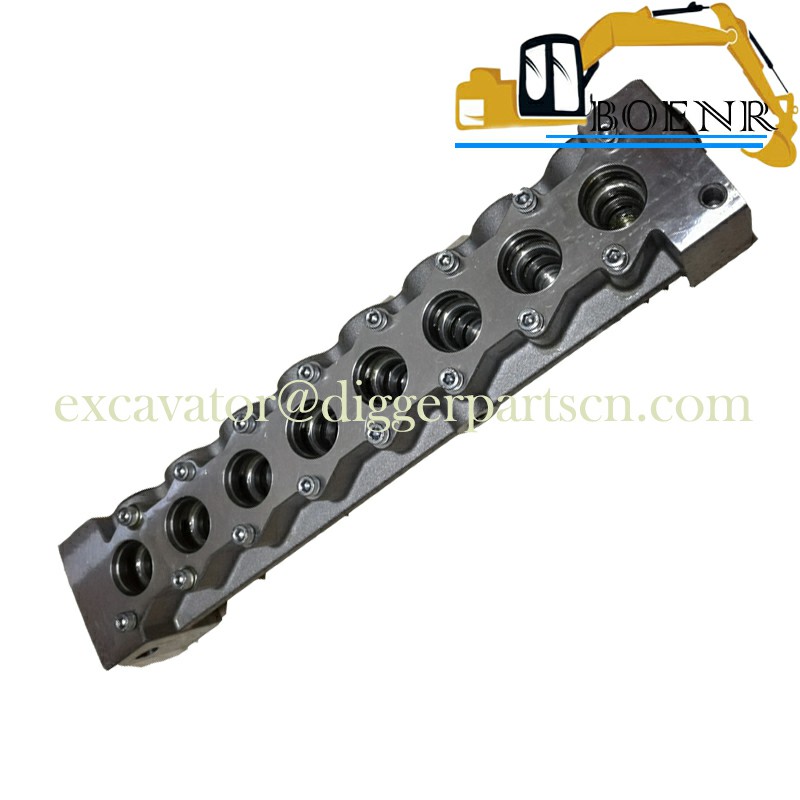

YN35V00047S101 Solenoid Valve Assembly Seat For SK130-8 SK140-8 SK200-8 SK210-8 SK250-8 SK260-8
SK130-8 SK140-8 SK200-8 SK210-8 SK250-8 SK260-8 SK330-8 SK350-8 SK380-8 SK430-8 SK450-8 SK485-8 SK485-9 Solenoid Valve Assembly Seat YN35V00047S101
| Part Name | Seat | Part Number | YN35V00047S101 |
| Brand | Kobeki、Kobelco、KPM | Applicable Model | SK130-8 SK140-8 SK200-8 SK210-8 SK250-8 SK260-8 SK330-8 SK350-8 SK380-8 SK430-8 SK450-8 SK485-8 SK485-9 |
Weight:2.5KG

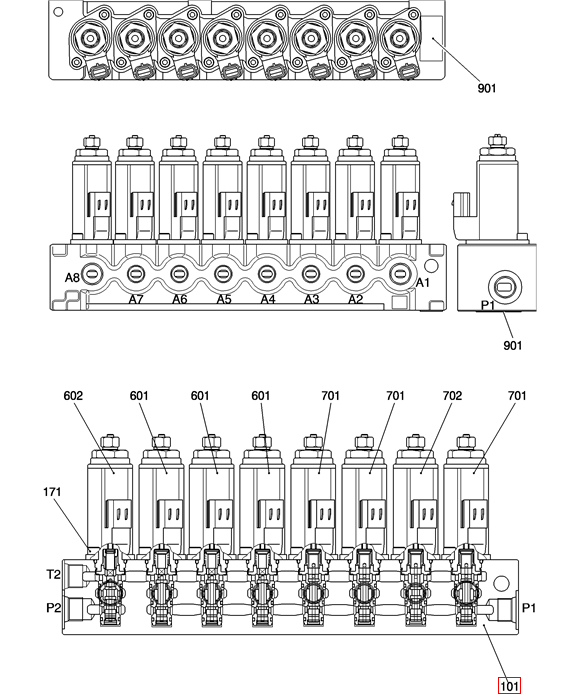

Parts Catalog
| ITEM | QTY | Part Number | Part Name |
| 901 | 1 | YY35V00007S901 | Name Plate |
| 702 | 1 | YN35V00051F1 | VALVE Assy, Solenoid ( See HC854) |
| 701 | 3 | YN35V00050F1 | VALVE Assy, Solenoid ( See HC853) |
| 602 | 1 | YN35V00049F1 | VALVE Assy, Solenoid ( See HC852) |
| 601 | 3 | YN35V00048F1 | VALVE Assy, Solenoid (See HC851) |
| 171 | 16 | YN35V00047S171 | SCREW Cap |
| 101 | 1 | YN35V00047S101 | CASE |
| AR | YN35V00047F1 | HYDRAULIC VALVE Valve Assy, Solenoid |
