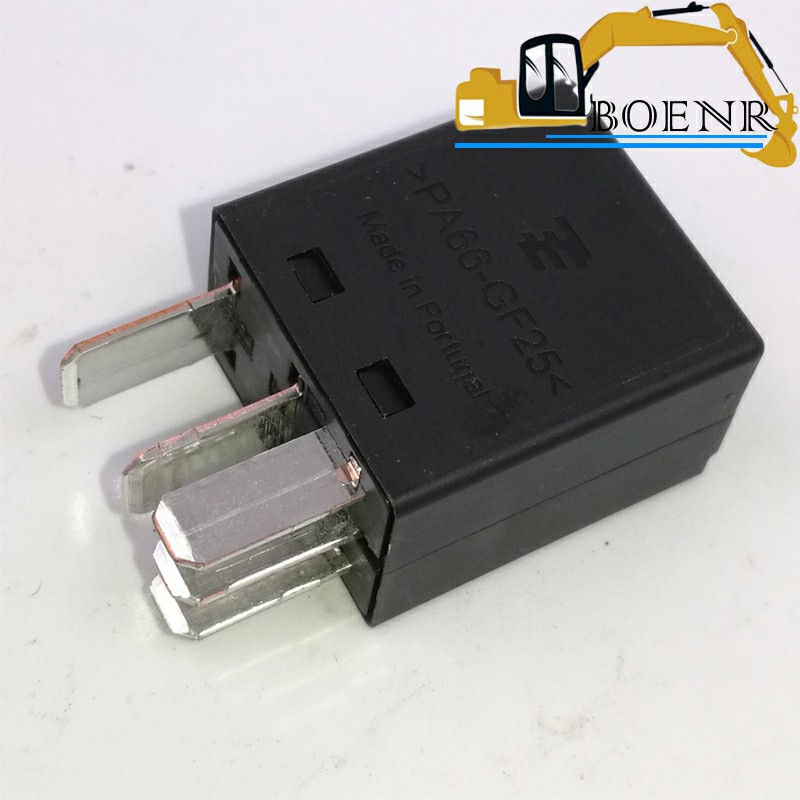

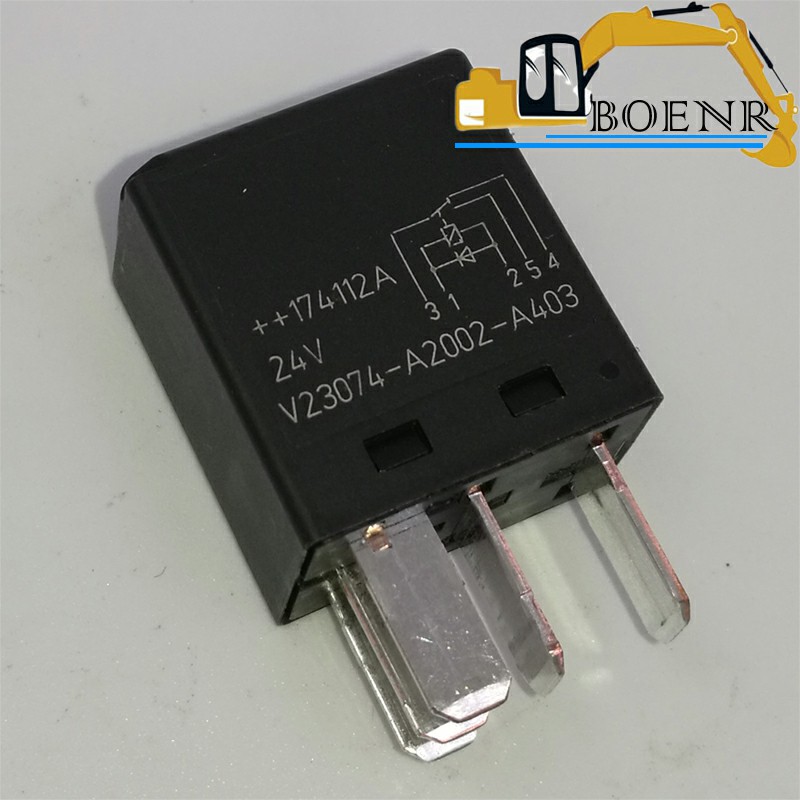

YN24S00010P1 Relay for SK200-8 SK210-8 SK250-8 SK260-8 SK330-8 SK350-8 SK380-8 SK485-8 SK SK485-9
SK200-8 SK210-8 SK250-8 SK260-8 SK330-8 SK350-8 SK380-8 SK485-8 SK485-9 Relay YN24S00010P1
| Part Name | Pilot Pump | Part Number | YN24S00010P1 |
| Brand | Kobelco、KOBEKI | Applicable Model | SK200-8 SK210-8 SK250-8 SK260-8 SK330-8 SK350-8 SK380-8 SK485-8 SK485-9 |
Weight: 2.2KG

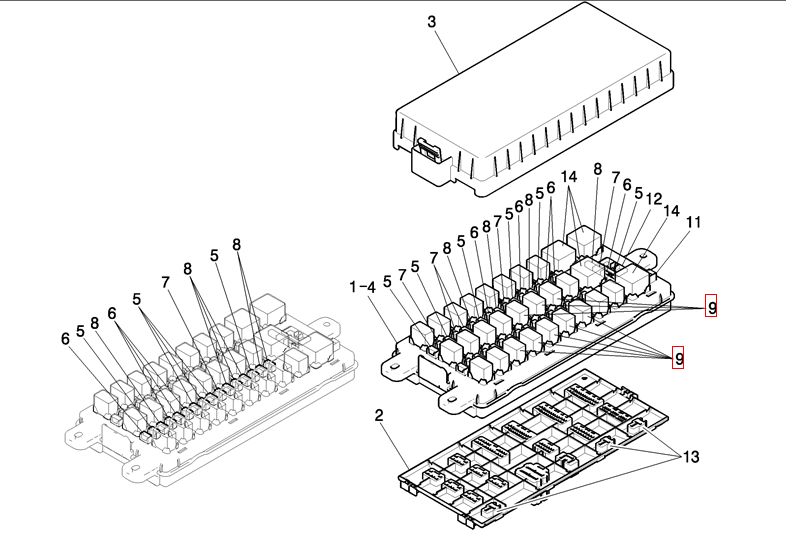

Parts Layout Diagram
Parts Catalog
| ITEM | QTY | PART NAMBER | PART NAME |
| 14 | 4 | YN24S00012P2 | RELAY |
| 13 | 3 | YN24E00016S013 | WIRE CONNECTOR |
| 12 | 1 | YN24E00016S012 | WIRE CONNECTOR |
| 11 | 1 | YN24E00016S011 | HANDLE |
| 9 | 8 | YN24S00010P1 | RELAY |
| 8 | 10 | YN24E00016S008 | FUSE 20 Amp |
| 7 | 6 | YN24E00016S007 | FUSE 15 Amp |
| 6 | 9 | YN24E00016S006 | FUSE 10 Amp |
| 5 | 11 | YN24E00016S005 | FUSE 5 Amp |
| 4 | 1 | YN24E00016S004 | PRINTED CIRCUIT BOARD |
| 3 | 1 | YN24E00016S003 | GUARD |
| 2 | 1 | YN24E00016S002 | BOX |
| 1 | 1 | YN24E00016S001 | BOX |
