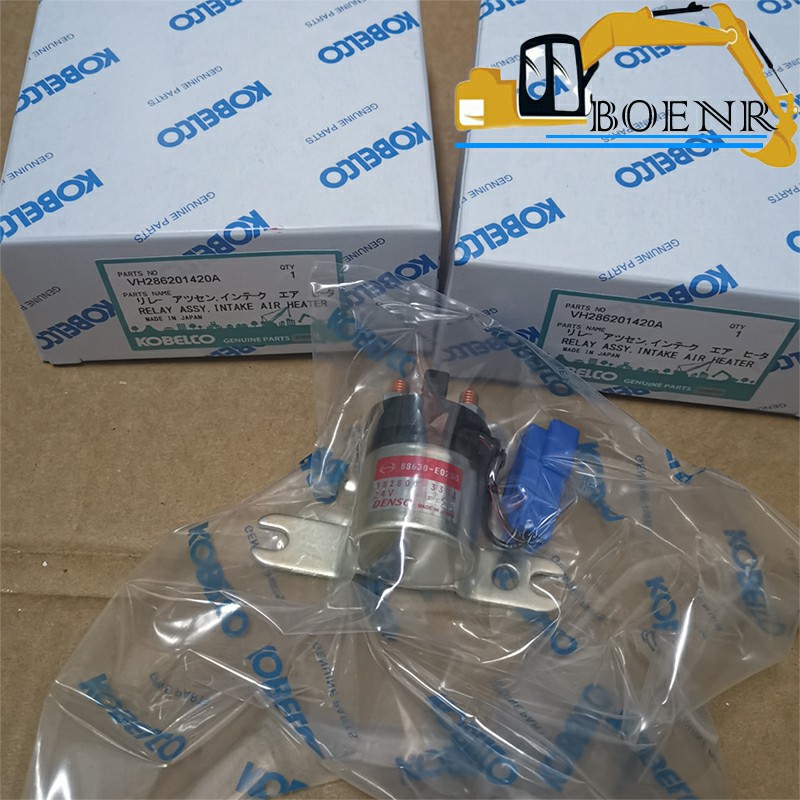

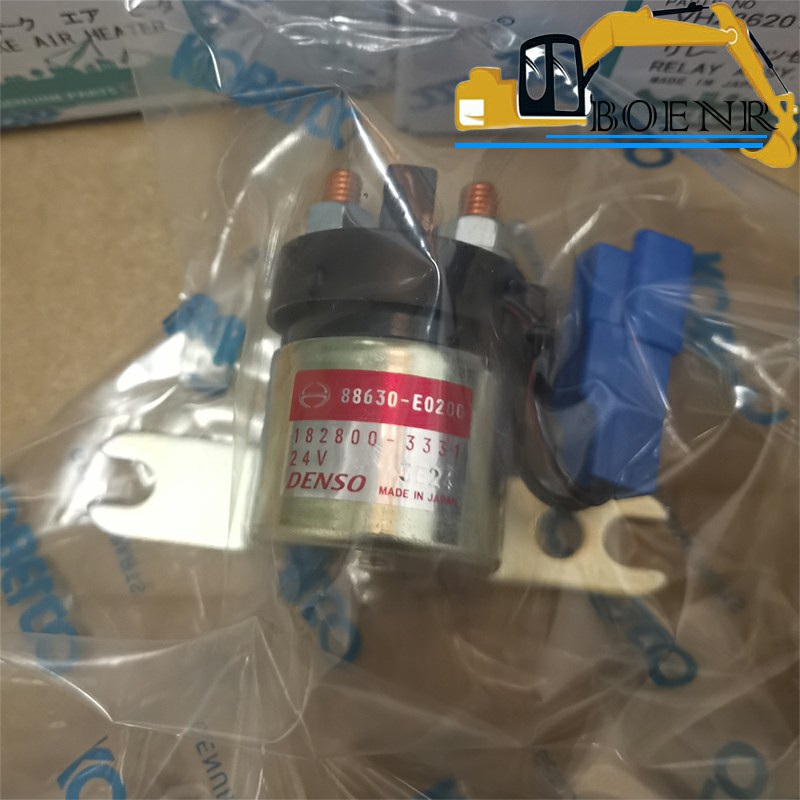

VH286201420A VHS286201420 RELAY For SK200-8 SK210-8 SK250-8 SK260-8 SK350-8 SK350-9 SK380-8
SK200-8 SK210-8 SK250-8 SK260-8 SK350-8 SK350-9 SK380-8 RELAY VH286201420A VHS286201420
| Part Name | Relay | Part Number | VH286201420A VHS286201420 |
| Brand | Kobelco Hino | Applicable Models | SK200-8 SK210-8 SK250-8 SK260-8 SK350-8 SK350-9 SK380-8 SK330-8 |
Weight:0.2 KG

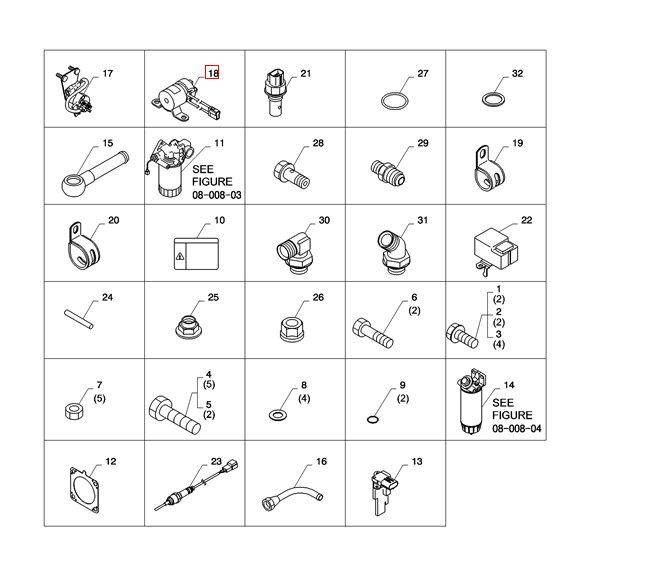

Parts Catalog
| ITEM | QTY | PARTS NO. | PART NAME |
| 32 | 2 | VHSZ43014003 | WASHER Soft |
| 31 | 1 | VHSZ40725006 | ELBOW |
| 30 | 1 | VHSZ40725005 | ELBOW |
| 29 | 1 | VHSZ40410033 | ELEC CONNECTOR |
| 28 | 2 | VHSZ40112001 | BOLT |
| 27 | 1 | VHSZ30119013 | O-RING |
| 26 | 4 | VHSZ17810012 | NUT Flange |
| 25 | 4 | VHSZ17712002 | NUT |
| 24 | 4 | VHSZ11908194 | BOLT |
| 23 | 2 | VH89425E0040 | TEMPERATURE SWITCH Exhaust Gas |
| 22 | 1 | VHS834701230 | CONTROL Assy., Warning Select |
| 21 | 1 | VHS834601510 | SWITCH ASSY Level Warning |
| 20 | 5 | VHS799044410 | CLIP |
| 19 | 1 | VHS799042340 | CLIP |
| 18 | 1 | VHS286201420 | RELAY Assy., Intake Air Heater |
| 17 | 1 | VHS283001271 | RELAY Assy., Start |
| 16 | 1 | VH23816E0160 | PIPE Fuel, No.4 |
| 15 | 1 | VHS237811620 | PIPE Fuel |
| 14 | 1 | VH23300E0260 | FUEL FILTER Assy., See Figure 08-008-04 |
| 13 | 1 | VH22204E0010 | SENSOR Intake Air Flow |
| 12 | 1 | VH17173E0050 | MANIFOLD GASKET Exhaust |
| 11 | 1 | VHS156004110 | FILTER ASSY Oil, See Figure 08-008-03 |
| 10 | 1 | VH11293E0400 | LABEL Engine Caution |
| 9 | 2 | VHSN73200283 | O-RING |
| 8 | 4 | VHSL72301210 | WASHER Soft |
| 7 | 5 | VHSL15100809 | FLANGE NUT |
| 6 | 2 | VHSK31900410 | BOLT |
| 5 | 2 | VHSH78201235 | BOLT |
| 4 | 5 | VHSH78201230 | BOLT |
| 3 | 4 | VHSH55210845 | FLANGE BOLT |
| 2 | 2 | VHSH55210832 | FLANGE BOLT |
| 1 | 2 | VHSH55210820 | FLANGE BOLT |
