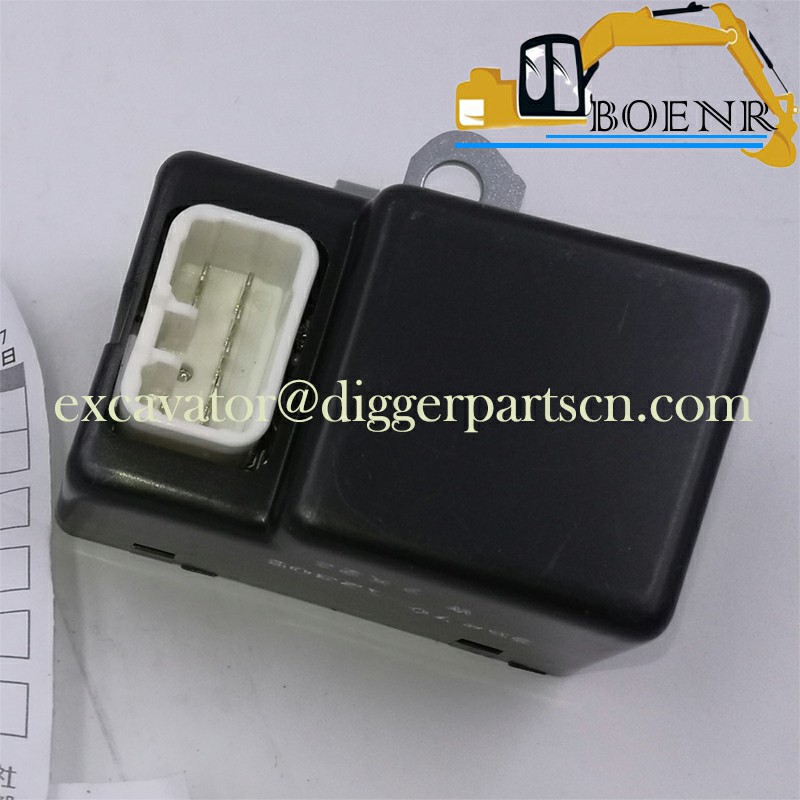

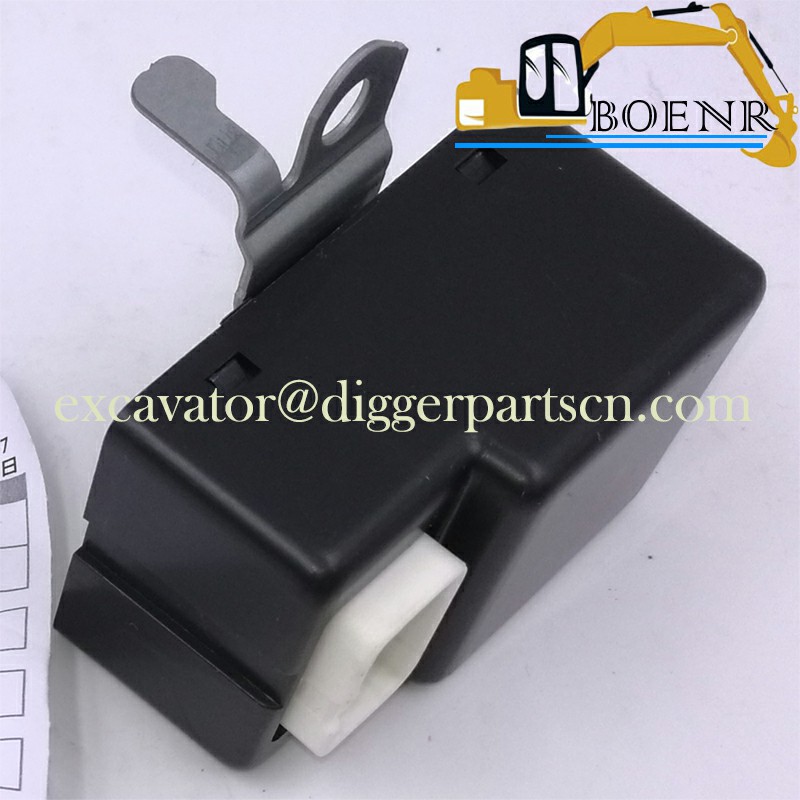

S8347-01230 VH834701230A VHS834701230 Controller For SK200-8 SK210-8 SK250-8 SK260-8 SK330-8 SK350-8
SK200-8 SK210-8 SK250-8 SK260-8 SK330-8 SK350-8 SK380-8 SK485-8 SK460-8 SK350-9 SK485-9 Controller S8347-01230 VH834701230A VHS834701230
| Part Name | Controller | Part Number | S8347-01230 VH834701230A VHS834701230 |
| Brand | Kobelco, Kobeki、Hino | Applicable Model | SK200-8 SK210-8 SK250-8 SK260-8 SK330-8 SK350-8 SK380-8 SK485-8 SK460-8 SK350-9 SK485-9 |
Weight: 0.2 kg

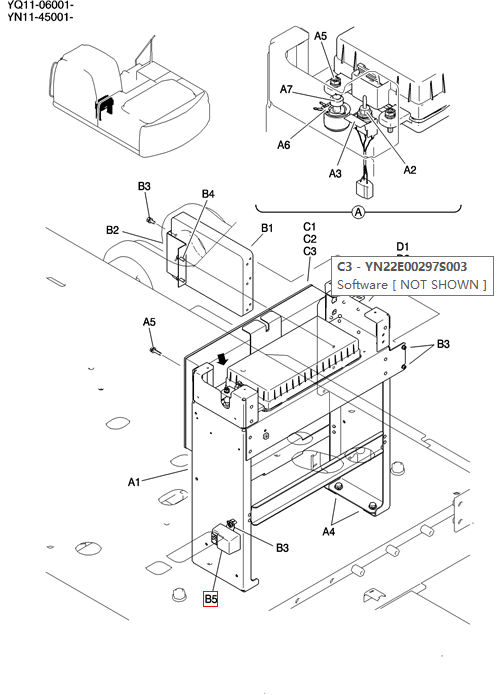

Parts Catalog
| ITEM | QTY | Part Number | Part Name |
| 1 | YN24E00016F2 | RELAY Box Assy (See Fig No.272), ASN YN11-46068 | |
| 1 | YN24E00016F2 | RELAY Box Assy (See Fig No.272), ASN YQ11-06080 | |
| D1 | 1 | YN24E00016F1 | RELAY Box Assy (See Fig No.272), BTW YN11-45001 & YQ11-46067 |
| D1 | 1 | YN24E00016F1 | RELAY Box Assy (See Fig No.272), BTW YQ11-06001 & YQ11-06079 |
| D2 | 1 | YN73E01024P2 | LABEL |
| AR | YN24E00020F1 | RELAY | |
| C5 | 1 | YN22E00193S005 | [ NO SHOW YQ11-06217- ] |
| C4 | 1 | YN22E00193S004 | [ NO SHOW YQ11-06127 ] |
| C3 | 1 | YN22E00193S003 | [NO SHOW YQ11-06039 ] |
| AR | YN22E00193F4 | CONTROL Assy, ASN YN11-47385 | |
| AR | YN22E00193F4 | CONTROL Assy, ASN YQ11-06217 | |
| C2 | 1 | YN22E00193S002 | NO SHOW YQ11-06001 ] |
| C1 | 1 | YN22E00214F1 | CONTROL Assy |
| AR | YN22E00193F3 | CONTROLLER , BTW YN11-46541 & YQ11-47384 | |
| AR | YN22E00193F3 | CONTROLLER , BTW YQ11-06127 & YQ11-06216 | |
| AR | YN22E00193F2 | CONTROL Assy, BTW YN11-45412 & YQ11-46540 | |
| AR | YN22E00193F2 | CONTROL Assy, BTW YQ11-06039 & YQ11-06126 | |
| AR | YN22E00193F1 | CONTROL Assy , BTW YN11-45001 & YQ11-45411 | |
| AR | YN22E00193F1 | CONTROL Assy , BTW YQ11-06001 & YQ11-06038 | |
| B5 | 1 | VH834701230A | CONTROL |
| B1 | 1 | VH89661E0010 | CONTROL |
| B4 | 3 | ZM61C06016 | BOLT Sems |
| B3 | 4 | ZM61C05012 | BOLT Sems |
| B2 | 1 | YN22E01237P1 | BRACKET |
| AR | YN22E00220F1 | CONTROL Instal | |
| A7 | 1 | YN52S00052P1 | POTENTIOMETER |
| A6 | 1 | YN22E01249P3 | LABEL |
| A5 | 7 | ZM61C06025 | BOLT Sems |
| A4 | 4 | ZM73C08020 | BOLT Sems |
| A3 | 1 | YN22M01014P1 | LABEL |
| 1 | YN50S00047P1 | TOGGLE SWITCH , ASN YN11-45459 | |
| 1 | YN50S00047P1 | TOGGLE SWITCH , ASN YQ11-06040 | |
| A2 | 1 | YT50E00001F1 | SWITCH Assy, BTW YN11-45001 & YQ11-45458 |
| A2 | 1 | YT50E00001F1 | SWITCH Assy, BTW YQ11-06001 & YQ11-06039 |
| A1 | 1 | YN22E01230P3 | SUPPORT |
| AR | YN22E00219F1 | Controller Instal | |
| AR | YN22E00218F1 | Controller Instal |
