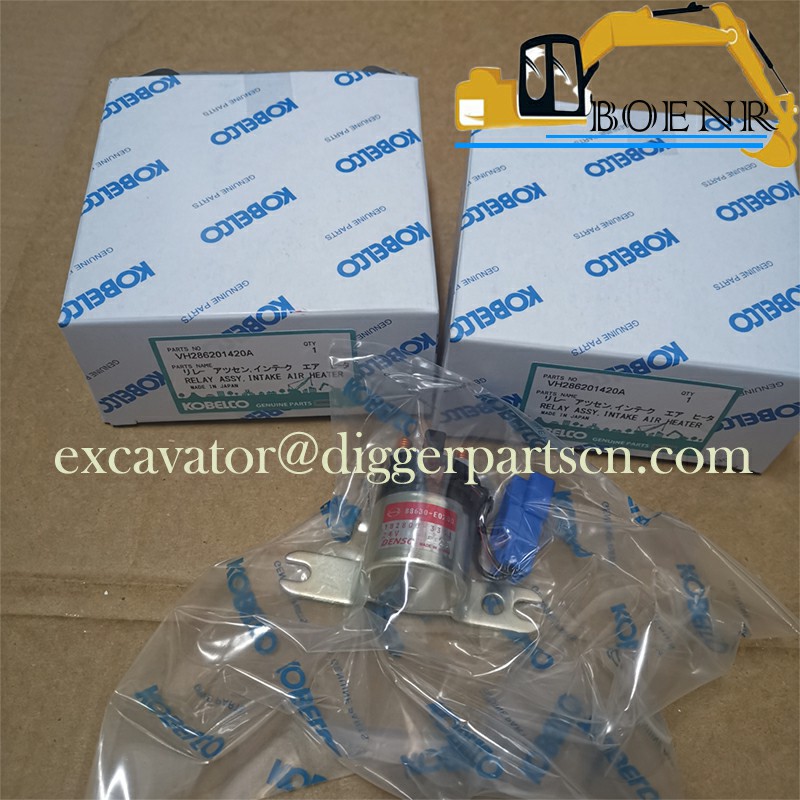

VH286201420 28620-1420A 88630-E0200 J05E Engine intake air heater relay For SK200-8 SK210-8 SK215SR
SK200-8 SK210-8 SK215SR SK235SR J05E Engine intake air heater relay VH286201420 28620-1420A 88630-E0200
| Part Name | relay | Part Number | VH286201420 28620-1420A 88630-E0200 |
| Brand | Kobelco , kobeki、Hino、Denso | Applicable Model | SK200-8 SK210-8 SK215SR SK235SR |
Weight: 0.3KG

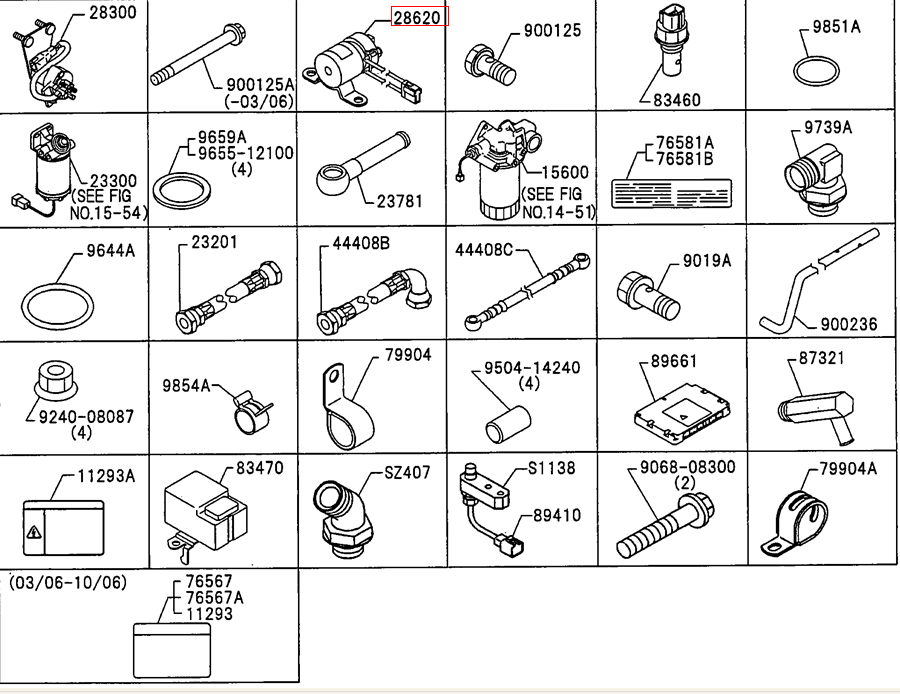

Parts Catalog
| ITEM | QTY | Part Number | Part Name |
| SZ407 | 1 | VHSZ40725006 | ELBOW |
| S1138 | 1 | VHS1138E0010 | ADAPTER Flywheel Housing Speed Sensor, Start Year: 06/01/2003 |
| 9854A | 1 | VH985428101A | CLIP |
| 9851A | 1 | VH985119116A | O-RING |
| 9739A | 4 | VH973925105A | ELBOW |
| 9659A | 4 | VH965914104A | WASHER Soft |
| 9644A | 4 | VH964402835A | O-RING |
| 9655-12100 | 4 | VH965512100A | WASHER Soft |
| 9504-14240 | 4 | VH950414240A | PIN Straight |
| 9240-08087 | 4 | VH924008087A | NUT |
| 9068-08300 | 2 | VH906808300A | BOLT |
| 9019A | 2 | VH901912108A | BOLT |
| 900236 | 1 | VH900236446A | HOSE Vent |
| 900125A | 2 | VH900125223A | BOLT , Start Year: 06/01/2002 |
| 900125 | 2 | VH900125233A | BOLT |
| 89661 | 1 | VH89661E0010 | CONTROL Fuel Inj |
| 89410 | 1 | VH894101290A | SENSOR Assy, Speed |
| 87321 | 1 | VH873211010A | CENTER JOINT Water Hose Through |
| 83470 | 1 | VH834701230A | CONTROL Assy, Warning Select |
| 83460 | 1 | VH834601510A | SWITCH Assy, Level Warning |
| 79904A | 1 | VH799042390A | CLIP Sub Assy |
| 79904 | 4 | VH799042370A | CLIP Sub Assy |
| 76581B | 1 | VH765818990A | PLATE Caution Complete (Fra Arb) |
| 76581A | 1 | VH765818980A | PLATE Caution Complete (Esp Chn) |
| 76567A | 1 | VH765672500A | LABEL Caution Eng (English), Years: 06/01/2003-06/01/2010 |
| 76567 | 1 | VH765671940A | LABEL Caution Eng (English), Years: 06/01/2003-06/01/2010 |
| 44408C | 1 | VH444082140A | HOSE Sub Assy, Oil |
| 44408B | 1 | VH444082130A | HOSE Sub Assy, Oil |
| 28620 | 1 | VH286201420A | RELAY Assy, Intake Air Heater |
| 28300 | 1 | VH283001271A | RELAY Assy, Start |
| 23781 | 2 | VH237811620A | PIPE Fuel |
| 23300 | 1 | VH233002800A | FILTER ASSY Fuel (See Fig No. 15-54) |
| 23201 | 1 | VH23201E0010 | HOSE Sub-Assy |
| 15600 | 1 | VH156004110A | FILTER ASSY Oil (See Fig No. 14-51) |
| 11293A | 1 | VH11293E0400 | LABEL Engine Caution |
| 11293 | 1 | VH11293E0170 | LABEL Engine Caution, Years: 06/01/2003-06/01/2010 |
