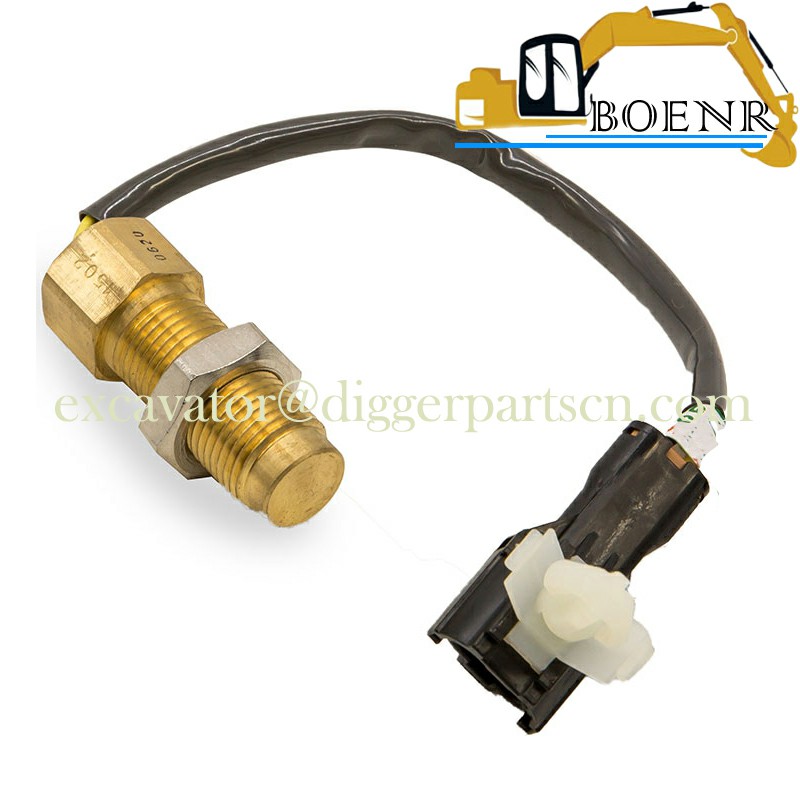

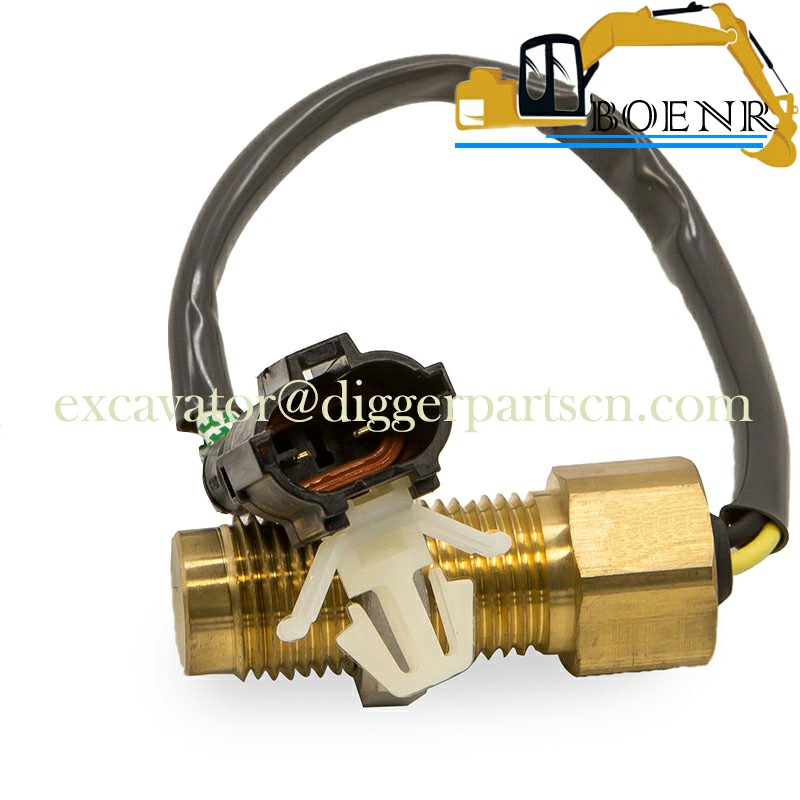

MC867505 VAMC867505 6D24 Engine Speed Sensor For SK480LC SK480LC-6E SY465 SK450-6 SK480-6
SK480LC SK480LC-6E SY465 SK450-6 SK480-6 6D24 Engine Speed Sensor MC867505 VAMC867505
| Part Name | sensor | Part Number | MC867505 VAMC867505 |
| Brand | Kobelco, Kobeki | Applicable Model | SK480LC SK480LC-6E SY465 SK450-6 SK480-6 |
Weight: 0.1 kg

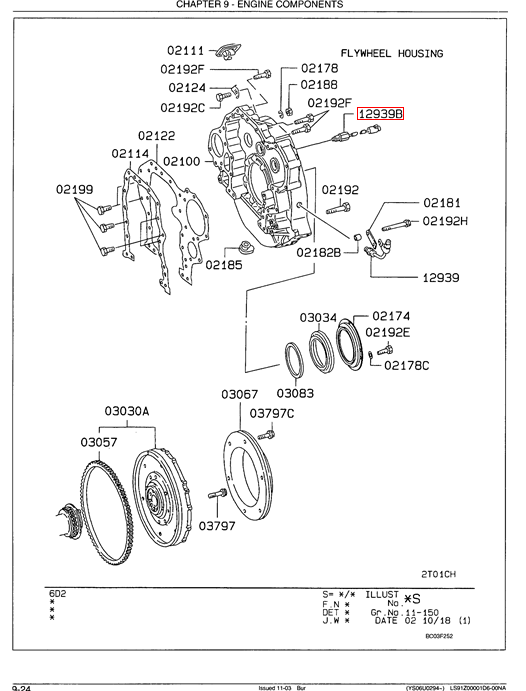

Parts Catalog
| ITEM | QTY | PART NUMBER | PART NAME |
| 12939B | 1 | VAMC867505 | SENSOR , ASN 0210.1 |
| 12939 | 1 | VAMC849577 | SENSOR ENG SPEED, ASN 0210.1 |
| 03797C | 8 | VAMH000936 | BOLT BOLT, FLYWHEEL, FLANGE, 10X30, ASN 0210.1 |
| 03797 | 8 | VAME052691 | BOLT FLYWHEEL, FLANGE, 16X50.5, ASN 0210.1 |
| 03083 | 1 | VAME352391 | RETAINER RING, CRANKSHAFT RR OIL SLINGER, ASN 0210.1 |
| 03067 | 1 | VAME440110 | FLYWHEEL FLYWEIGHT, FLYWHEEL, ASN 0210.1 |
| 03057 | 1 | VAMD351296 | RING GEAR, FLYWHEEL, N=143, ASN 0210.1 |
| 03034 | 1 | VAME351469 | SEAL OIL SLINGER, CRANKSHAFT, RR, ASN 0210.1 |
| 03030A | 1 | VAME440189 | FLYWHEEL ASSY, ASN 0210.1 |
| 02199 | 9 | VAMS146051 | BOLT, ENG RR PLATE, 12X20, ASN 0210.1 |
| 02192H | 1 | VAMH000871 | FLANGE BOLT BOLT, FLYWHEEL HOUSING, FLANGE, 10X100, ASN 0210.1 |
| 02192F | 2 | VAMS146059 | BOLT, FLYWHEEL HOUSING, FLANGE, 12X60, ASN 0210.1 |
| 02192E | 4 | VAMF240050 | BOLT BOLT, FLYWHEEL HOUSING, WASHER ASSEMBLED, 8X14, ASN 0210.1 |
| 02192C | 1 | VAMF100031 | BOLT BOLT, FLYWHEEL HOUSING, 6X25, ASN 0210.1 |
| 02192BB | 3 | VAMF300841 | SCREW BOLT, FLYWHEEL HOUSING, WASHER ASSEMBLED, 10X20, ASN 0210.1 |
| 02192 | 8 | VAMS146065 | BOLT, FLYWHEEL HOUSING, FLANGE, 12X90, ASN 0210.1 |
| 02188 | 1 | VAMF430004 | NUT NUT, FLYWHEEL HOUSING, 6, ASN 0210.1 |
| 02185 | 1 | VA3091201400 | PLUG PLUG, FLYWHEEL HOUSING, RUBBER, 29, ASN 0210.1 |
| 02182B | 1 | VA3123005900 | SPACER SPACER, FLYWHEEL HOUSING, T=10, ASN 0210.1 |
| 02181 | 1 | VAMH023121 | HOUSING STAY, FLYWHEEL HOUSING, ASN 0210.1 |
| 02178C | 4 | VAMF450005 | WASHER FLYWHEEL HOUSING, PLAIN, 8, ASN 0210.1 |
| 02178 | 1 | VAMF450404 | WASHER WASHER, FLYWHEEL HOUSING, SPRING, 6, ASN 0210.1 |
| 02174 | 1 | VAME152584 | OIL SEAL FLYWHEEL HOUSING OIL SEAL, ASN 0210.1 |
| 02124 | 1 | VAME061699 | POINTER FLYWHEEL HOUSING ENG TIMING, ASN 0210.1 |
| 02122 | 1 | VAME052661 | PLATE PLATE, CYLINDER BLOCK, RR, ASN 0210.1 |
| 02115 | 1 | VA3111204200 | GASKET GASKET, FLYWHEEL HOUSING RR COVER, ASN 0210.1 |
| 02114 | 1 | VAME150048 | GASKET ENG RR PLATE, CYLINDER BLOCK SIDE, ASN 0210.1 |
| 02113 | 1 | VA3111204100 | COVER COVER, FLYWHEEL HOUSING, RR, ASN 0210.1 |
| 02111 | 1 | VAME151267 | COVER FLYWHEEL HOUSING TIMING POINTER, ASN 0210.1 |
| 02100 | 1 | VAME152614 | HOUSING, FLYWHEELL, ASN 0210.1 |
MC86705 Flywheel Speed Sensor (Mitsubishi 6D24)
Fits: Kobelco SK480LC-6E, Sany SY465H-9 Excavators
Symptoms When This Sensor Fails:
No start / hard start
Tachometer shows 0 and does not move after starting
Engine runs rough, lacks power, cannot rev up
Occasional stalling, difficult to restart after stalling
