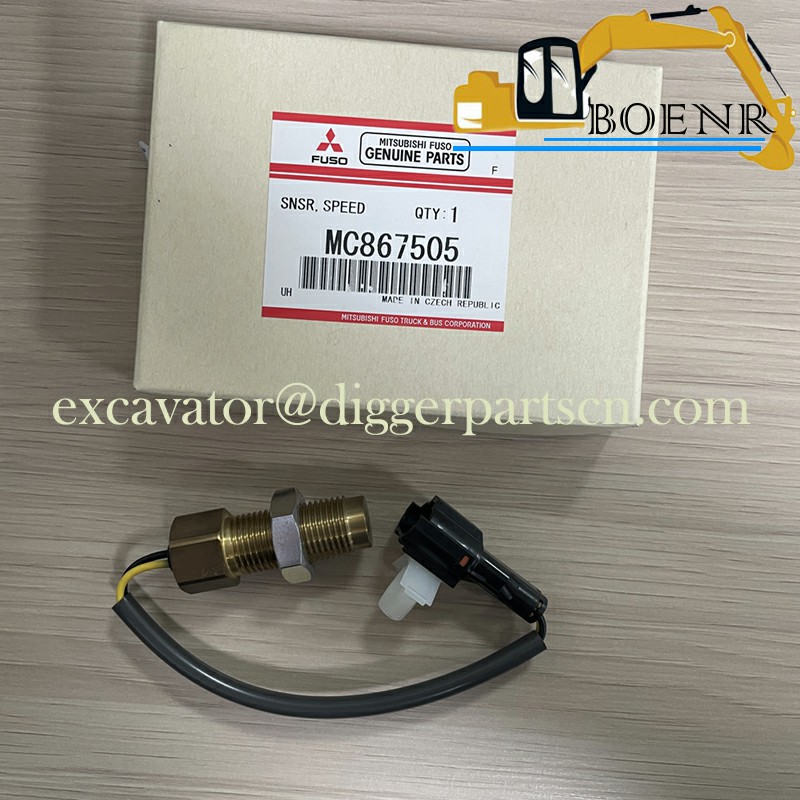

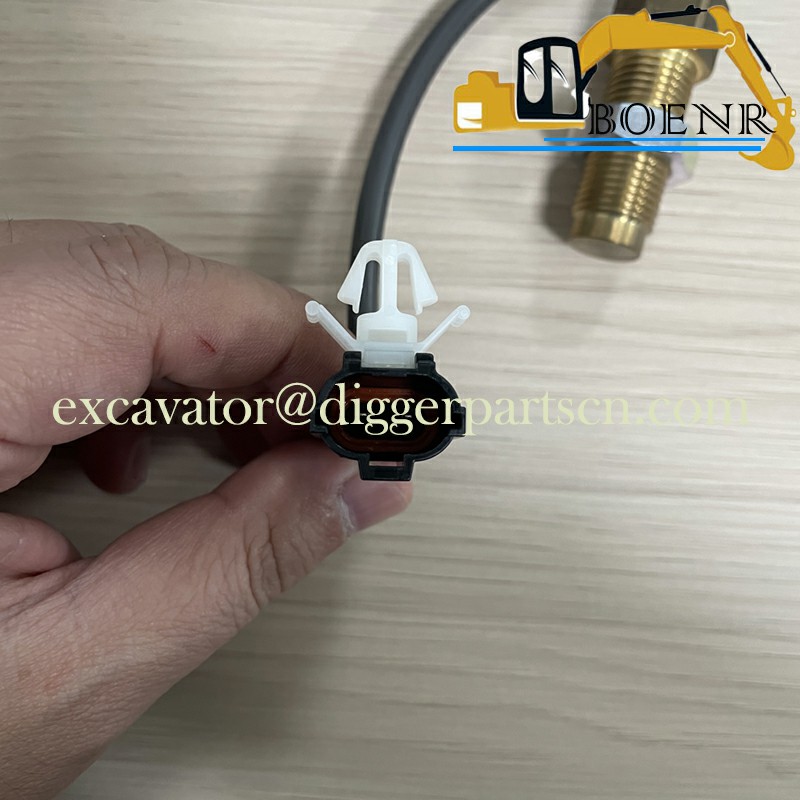

VAMC867505 MC867505 6D24 Engine Speed Sensor For SK480-6E SK480LC
SK480-6E SK480LC 6D24 Engine Speed Sensor VAMC867505 MC867505
| Part Name | Speed Sensor | Part Number | VAMC867505 MC867505 |
| Brand | Kobeki | Applicable Model | SK480-6E SK480LC |
Weight: 0.5 kg

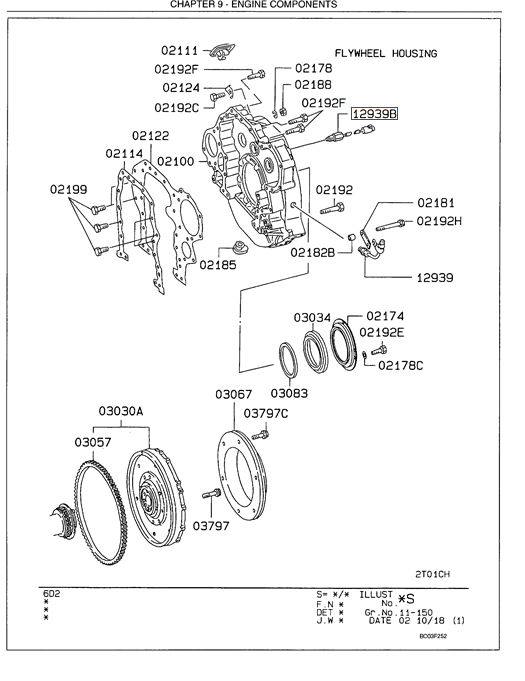

Parts Catalog
| ITEM | QTY | Part Number | Part Name |
| 12939B | 1 | VAMC867505 | SENSOR Speed sensor Engine controller |
| 12939 | 1 | VAMC849577 | SENSOR Speed sensor for Guage Cluster |
| 03797C | 8 | VAMH000936 | BOLT BOLT, FLYWHEEL, FROM-UP TO: 0007.1-, MODEL TYPE: ALL, Remarks: FLANGE, 10X30 |
| 03797 | 8 | VAME052691 | BOLT BOLT, FLYWHEEL, FROM-UP TO: 0007.1-, MODEL TYPE: ALL, Remarks: FLANGE, 16X50.5 |
| 03067 | 1 | VAME440110 | FLYWHEEL FLYWEIGHT, FLYWHEEL, FROM-UP TO: 0007.1-, MODEL TYPE: ALL |
| 03057 | 1 | VAME062828 | RING GEAR RING GEAR, FLYWHEEL, FROM-UP TO: 0007.1-, MODEL TYPE: ALL, Remarks: N=143 |
| 03034 | 1 | VA3092020100 | SLINGER OIL SLINGER, CRANKSHAFT, RR, FROM-UP TO: 0007.1-, MODEL TYPE: ALL |
| 03030A | 1 | VAME440189 | FLYWHEEL FLYWHEEL ASSY, FROM-UP TO: 0007.1, MODEL TYPE: ALL |
| 02199C | 5 | VAMS146051 | BOLT, ENG RR PLATE, FROM-UP TO: 0007.1-, MODEL TYPE: ALL, Remarks: 12X20 |
| 02199B | 4 | VAMH000733 | BOLT, ENG RR PLATE, FROM-UP TO: 0007.1-, MODEL TYPE: ALL, Remarks: FLANGE, 12X20 |
| 02192H | 1 | VAMH000871 | FLANGE BOLT BOLT, FLYWHEEL HOUSING, FROM-UP TO: 0007.1-, MODEL TYPE: ALL, Remarks: FLANGE, 10X100 |
| 02192F | 2 | VAMS146059 | BOLT, FLYWHEEL HOUSING, FROM-UP TO: 0007.1-, MODEL TYPE: ALL, Remarks: FLANGE, 12X60 |
| 02192E | 4 | VAMF240050 | BOLT BOLT, FLYWHEEL HOUSING, FROM-UP TO: 0007.1-, MODEL TYPE: ALL, Remarks: WASHER ASSEMBLE D, 8X14 |
| 02192C | 1 | VAMF100031 | BOLT BOLT, FLYWHEEL HOUSING, FROM-UP TO: 0007.1-, MODEL TYPE: ALL, Remarks: 6X25 |
| 02192BB | 3 | VAMF300841 | SCREW BOLT, FLYWHEEL HOUSING, FROM-UP TO: 0007.1-, MODEL TYPE: ALL, Remarks: WASHER ASSEMBLE D, 10X20 |
| 02192 | 8 | VAMS146065 | BOLT, FLYWHEEL HOUSING, FROM-UP TO: 0007.1-, MODEL TYPE: ALL, Remarks: FLANGE, 12X90 |
| 02188 | 1 | VAMF430004 | NUT NUT, FLYWHEEL HOUSING, FROM-UP TO: 0007.1-, MODEL TYPE: ALL, Remarks: 6 |
| 02185 | 1 | VA3091201400 | PLUG PLUG, FLYWHEEL HOUSING, FROM-UP TO: 0007.1-, MODEL TYPE: ALL, Remarks: RUBBER, 29 |
| 02182B | 1 | VA3123005900 | SPACER SPACER, FLYWHEEL HOUSING, FROM-UP TO: 0007.1-, MODEL TYPE: ALL, Remarks: T=10 |
| 02181 | 1 | VAMH023121 | HOUSING STAY, FLYWHEEL HOUSING, FROM-UP TO: 0007.1-, MODEL TYPE: ALL |
| 02178C | 4 | VAMF450005 | WASHER WASHER, FLYWHEEL HOUSING, FROM-UP TO: 0007.1-, MODEL TYPE: ALL, Remarks: PLAIN, 8 |
| 02178 | 1 | VAMF450404 | WASHER WASHER, FLYWHEEL HOUSING, FROM-UP TO: 0007.1-, MODEL TYPE: ALL, Remarks: SPRING, 6 |
| 02174 | 1 | VAME152584 | OIL SEAL RETAINER, FLYWHEEL HOUSING OIL SEAL, FROM-UP TO: 0007.1-, MODEL TYPE: ALL |
| 02124 | 1 | VAME061699 | POINTER POINTER, FLYWHEEL HOUSING ENG TIMING, FROM-UP TO: 0007.1-, MODEL TYPE: ALL |
| 02122 | 1 | VAME052661 | PLATE PLATE, CYLINDER BLOCK, RR, FROM-UP TO: 0007.1-, MODEL TYPE: ALL |
| 02115 | 1 | VA3111204200 | GASKET GASKET, FLYWHEEL HOUSING RR COVER, FROM-UP TO: 0007.1-, MODEL TYPE: ALL |
| 02114 | 1 | VAME150048 | GASKET GASKET, ENG RR PLATE, FROM-UP TO: 0007.1-, MODEL TYPE: ALL, Remarks: CYLINDER BLOCK SIDE |
| 02113 | 1 | VA3111204100 | COVER COVER, FLYWHEEL HOUSING, RR, FROM-UP TO: 0007.1-, MODEL TYPE: ALL |
| 02111 | 1 | VA3121202300 | COVER COVER, FLYWHEEL HOUSING TIMING POINTER, FROM-UP TO: 0007.1-, MODEL TYPE: ALL |
| 02100 | 1 | VAME152614 | HOUSING, FLYWHEEL, FROM-UP TO: 0007.1-, MODEL TYPE: ALL |
