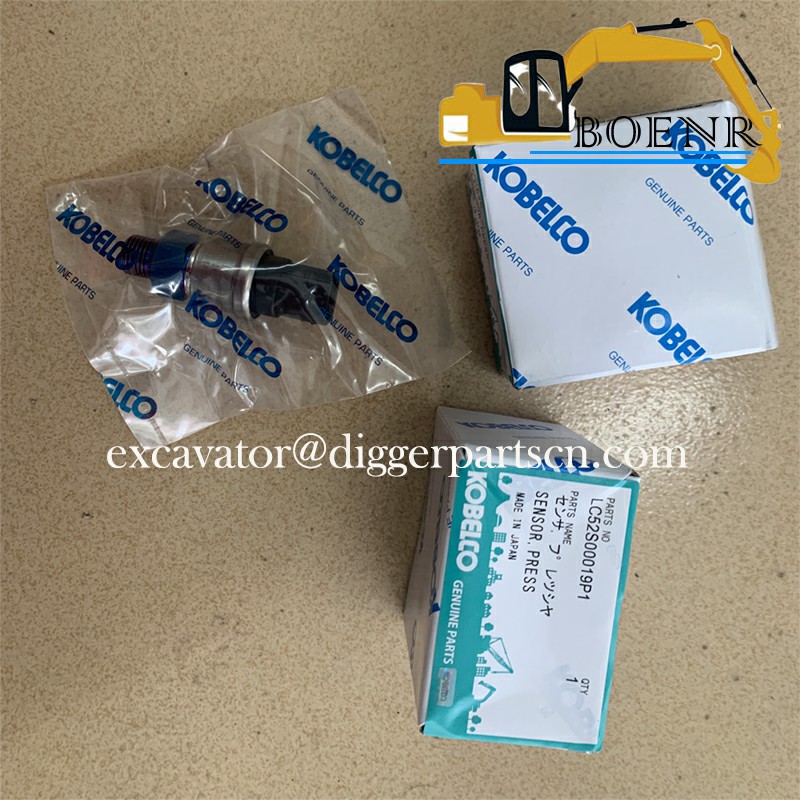

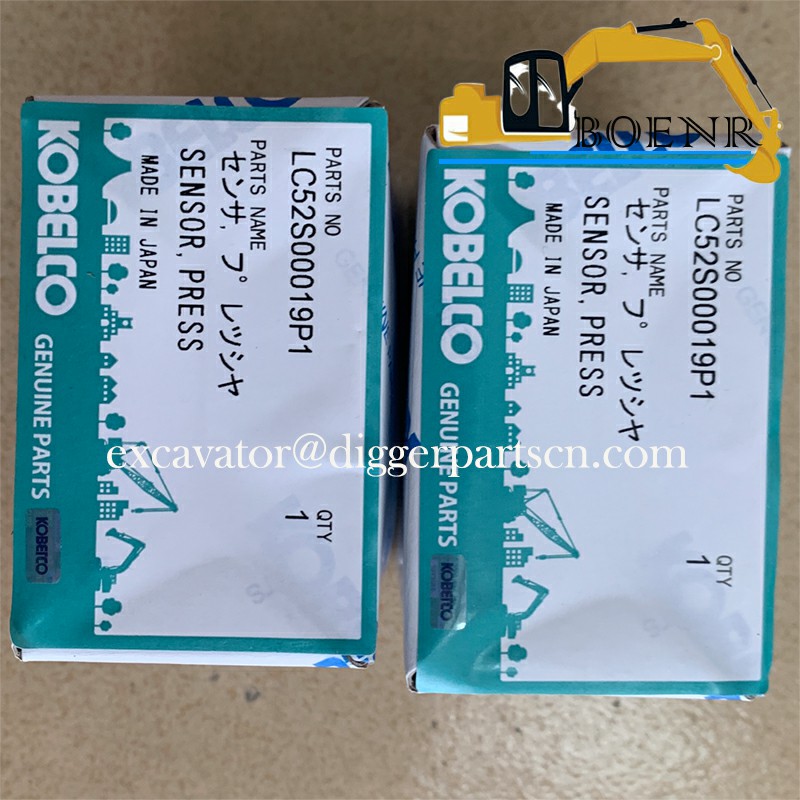

LC52S00019P1 Pressure Sensor Switch For SK200-8 SK210-9 SK210LC-8 SK260-9 SK380-8 SK485-8
SK200-8 SK210-9 SK210LC-8 SK260-9 SK380-8 SK485-8 Pressure Sensor Switch LC52S00019P1
| Part Name | Pressure Sensor Switch | Part Number | LC52S00019P1 |
| Brand | Kobelco、KOBEKI | Applicable Model | SK200-8 SK210-9 SK210LC-8 SK260-9 SK380-8 SK485-8 |
Weight: 0.3KG

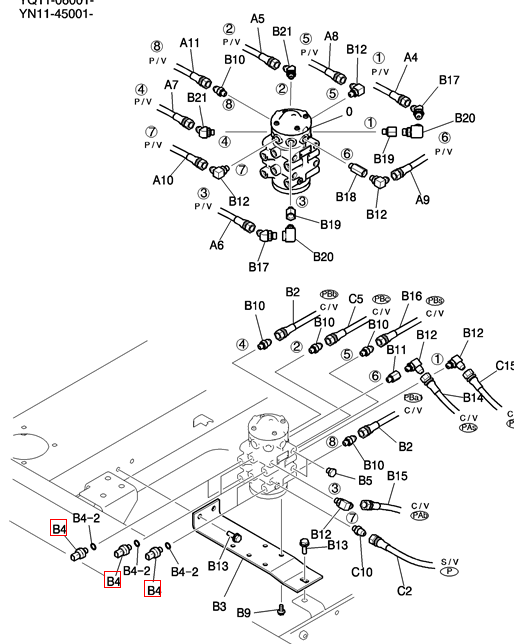

Parts Catalog
| ITEM | QTY | PARTS NO. | PART NAME |
| C4 | 1 | 2420R537D140 | HOSE ASSY. |
| C3 | 1 | 2444Z2338 | ELBOW |
| C2 | 1 | 2420R537D125 | HOSE |
| C1 | 1 | 2420R537D230 | FLEXIBLE HOSE |
| AR | YN64H00215F1 | Control, Multi | |
| B21 | 2 | 2444T3288 | ELBOW |
| B20 | 2 | 2444Z3155 | ELBOW |
| B19 | 2 | 2444Z2516 | HYD CONNECTOR |
| B18 | 1 | 2444T2524 | HYD CONNECTOR |
| B17 | 2 | ZH42X06000 | ELBOW |
| B16 | 1 | 2420R537D210 | HOSE 9.60 mm ID x 2100.00 mm |
| B15 | 1 | 2420R537D135 | FLEXIBLE HOSE |
| B14 | 1 | 2420R537D120 | HOSE ASSY. |
| B13 | 3 | ZM73C10030 | BOLT Sems |
| B12 | 6 | 2444Z2338 | ELBOW |
| B11 | 1 | 2444Z2525 | HYD CONNECTOR |
| B10 | 5 | 2444Z2337 | ELEC CONNECTOR |
| B9 | 4 | ZM73C08020 | BOLT Sems |
| B8 | 2 | ZM73C10020 | BOLT Sems |
| B7 | 1 | YN64H01289P1 | CLAMP Support |
| B5 | 2 | ZE72X04000 | PLUG |
| B4-2 | 1 | ZD12P01100 | O-RING |
| 6 | LC52S00019P1 | SENSOR Press (L.P) Incls. O-Ring ZD12P01100, ASN YQ11-06106 | |
| 6 | LC52S00019P1 | SENSOR Press (L.P) Incls. O-Ring ZD12P01100, ASN YQ11-06106 | |
| B4 | 6 | YX52S00013P1 | SENSOR Press (L.P), BTW YN11-45001 & YN11-46329 |
| B4 | 6 | YX52S00013P1 | SENSOR Press (L.P), BTW YQ11-06001 & YQ11-06105 |
| B3 | 1 | LC64H01113P1 | BRACKET |
| B2 | 2 | 2420R537D220 | HOSE |
| AR | YN64H00214F1 | Control, Multi | |
| 0 | 1 | YN30V00117F1 | VALVE Assy, Selector , See (C.P.M) |
| AR | YN64H00212F1 | Control, Multi | |
| A18 | 2 | YN68H01106P1 | COVER |
| A17 | 4 | PY01P01043D8 | CLIP |
| A16 | 2 | PH03M01250P1 | BOOT |
| A15 | 8 | ZW16P06000 | WASHER |
| A14 | 8 | ZS28C06025 | SCREW Cap |
| A13 | 10 | ZH22X06000 | HYD CONNECTOR |
| A12 | 2 | HH25X04004G2 | HYD CONNECTOR |
| A11 | 1 | HX23L06165CG | HOSE |
| A10 | 1 | HX23L06160CB | HOSE |
| A9 | 1 | HX23L06195CR | HOSE |
| A8 | 1 | HX23L06170CH | HOSE |
| A7 | 1 | HX23L06195CH | HYDRAULIC HOSE |
| A6 | 1 | YN68H01105D3 | HOSE |
| A5 | 1 | HX23L06190CB | HYDRAULIC HOSE |
| A4 | 1 | HX23L06190CR | HOSE |
| 2 | LS68H01016D1 | HOSE , ASN YN11-48566 | |
| 2 | LS68H01016D1 | HOSE , ASN YQ11-06341 | |
| A3 | 2 | 2420R349D135 | HOSE , BTW YN11-45001 & YN11-48565 |
| A3 | 2 | 2420R349D135 | HOSE , BTW YQ11-06001 & YQ11-06340 |
| A2 | 2 | 2420R537D135 | FLEXIBLE HOSE |
| A1 | 2 | YN30V00111F1 | HYDRAULIC VALVE Assy, Pilot , See (C.P.M) |
| AR | YN68H00131F1 | Control Lines, Remote |
