YT02P00010F1 LG02P00001F1 4LE2 Engine Assy for SK70SR SK75-8
SK70SR SK75-8 4LE2 Engine Assy YT02P00010F1 LG02P00001F1
| Part Name | Engine | Part Number | YT02P00010F1 LG02P00001F1 |
| Brand | ISUZU Kobelco | Applicable Model | SK70SR SK75-8 |
Weight: 246 kg

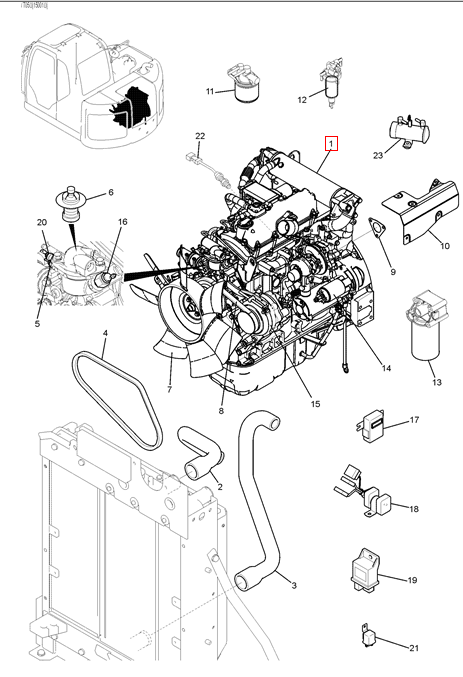

Parts Catalog
| ITEM | QTY | Part Number | Part Name |
| 23 | 1 | VI8970415212 | FUEL PUMP |
| 22 | 1 | VI1815105130 | SENSOR |
| 21 | 1 | VI5825500300 | RELAY |
| 20 | 1 | VI8970633010 | SENSOR |
| 19 | 1 | VI8980305730 | TIMER |
| 18 | 1 | VI1825530391 | RELAY |
| 17 | 1 | VI8980305740 | CONTROLLER |
| 16 | 1 | VI8971256001 | SWITCH |
| 15 | 1 | VI8971822892 | GENERATOR |
| 14 | 1 | VI8980723151 | STARTER MOTOR |
| 13 | 1 | VI8980756760 | ELEMENT |
| 12 | 1 | VI8972133810 | ELEMENT |
| 11 | 1 | VI8971725491 | ELEMENT |
| 10 | 1 | VI0916147080 | WASHER cOVER |
| 9 | 1 | VI8980044530 | PULLEY Gasket |
| 8 | 1 | VI8980490330 | BELT |
| 7 | 1 | VI8972876961 | FAN |
| 6 | 1 | VI8973617700 | THERMOSTAT |
| 5 | 1 | VI8970785920 | THERMOSTAT |
| Isuzu Parts | |||
| 4 | 1 | YN20M01494D7 | BELT V-Belt (Air Conditioner) -- 1054mm Long (41-1/2 in) |
| 3 | 1 | YT05P01239P1 | RADIATOR HOSE |
| 2 | 1 | YT05P01065P1 | RADIATOR HOSE |

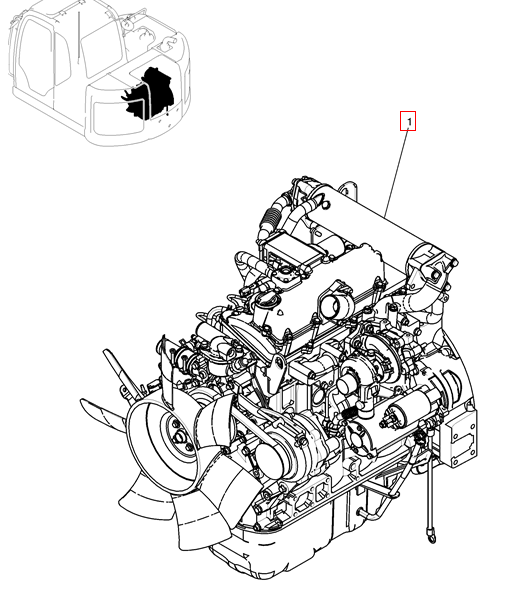

| 1 | 1 | YT02P00010F1 | ENGINE Assembly -- See Figure 09-00-00 |
