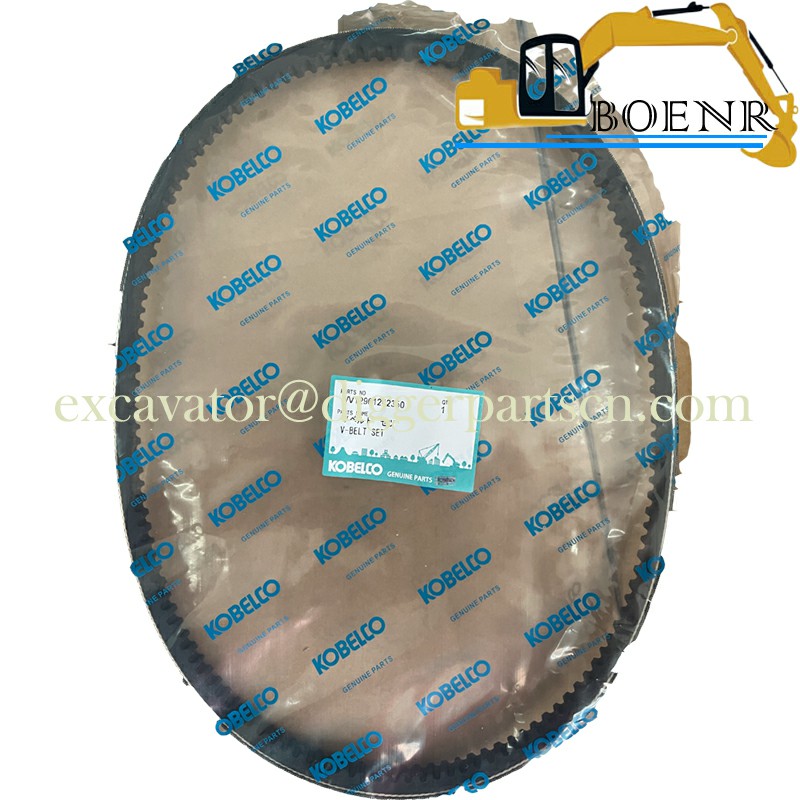

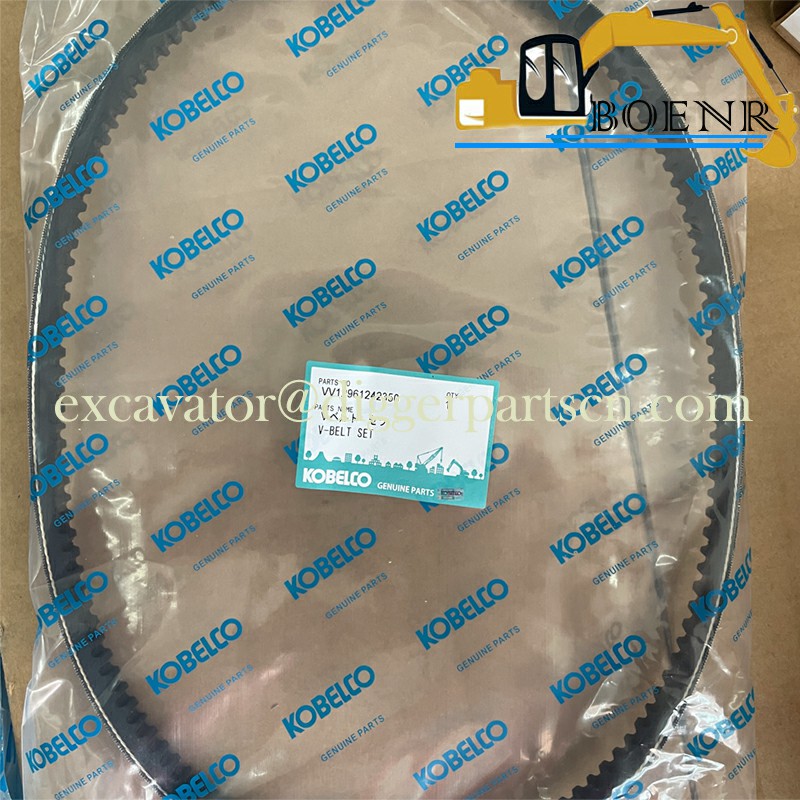

VV12961242350 Cooling Fan V-belt For SK30SR SK50SR SK27SR SK35SR SK55SR
SK30SR SK50SR SK27SR SK35SR SK55SR Cooling Fan V-belt VV12961242350
| Part Name | V-belt | Part Number | VV12961242350 |
| Brand | Kobelco, Kobeki | Applicable Model | SK30SR SK50SR SK27SR SK35SR SK55SR |
Weight: 0.6 kg

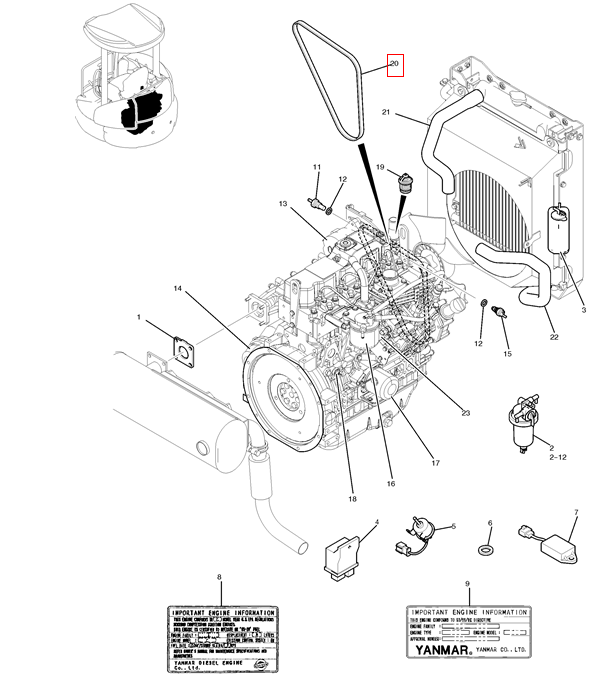

Parts Catalog
| ITEM | QTY | Part Number | Part Name |
| 23 | 1 | VV11923377932 | SOLENOID Stop (Fuel Shut-Off) -- See Figure 08-012 |
| 20 | 1 | VV12961242350 | BELT V-BELT (A38) -- See Figure 08-010 |
| 19 | 1 | VV12915549801 | THERMOSTAT 71°C (160°F) -- See Figure 08-010 |
| 18 | 1 | VV11425039450 | PRESSURE SWITCH (0.5kg) Lubrication Oil -- See Figure 08-009 |
| 17 | 1 | VV12915035160 | ENGINE OIL FILTER OIL -- See Figure 08-009 |
| 16 | 1 | VV11980255801 | FUEL FILTER See Figure 08-014 |
| 15 | 1 | VV12125044901 | SWITCH THERMOSTAT 110°C (230°F) -- See Figure 08-010 |
| 14 | 1 | VV12913677011 | STARTER MOTOR See Figure 08-015 |
| 13 | 1 | VV11962677210 | ALTERNATOR ASSEMBLY -- See Figure 08-016 |
| 12 | 2 | VV12446544950 | PACKING See Figure 08-01 & 08-017 |
| 9 | 1 | VV12941807821 | Decal, Yanmar diesel engine information |
| 8 | 1 | VV11982207731 | Decal, Important engine information |
| 7 | 1 | VV12921177920 | SWITCH TIMER -- See Figure 08-016 |
| 6 | 1 | VV12915049360 | PACKING See Figure 08-010 & 08-017 |
| 5 | 1 | VV12961252100 | FUEL PUMP See Figure 08-014 |
| 4 | 1 | VV11980277200 | RELAY See Figure 08-016 |
| 3 | 1 | VV12146844520 | ASSEMBLY, WATER -- See Figure 08-010 |
| 2-12 | 1 | VV11980255710 | FILTER STRAINER WATER SEPARATOR -- See Figure 01-013 & 08-014 |
| 2 | 1 | VV12990655700 | SEPARATOR ASSEMBLY, WATER -- See Figure 01-013 & 08-014 |
| 1 | 1 | VV12993013201 | GASKET MUFFLER -- See Figure 08-006 & 08-017 |
| YANMAR DIESEL PARTS | |||
| 22 | 1 | PH05P01153P1 | HOSE RADIATOR |
| 21 | 1 | PH05P01221P1 | HOSE RADIATOR |
| 11 | 1 | PA24S00003P1 | SENSOR See Figure 01-006 & 05-002 |
| 9 | 1 | PX20T01008P1 | Decal, Yanmar diesel engine information |
| 8 | 1 | PY20T01087P1 | LABEL Decal, Important engine information |
| 6 | 1 | PA13E01027P1 | PACKING See Figure 01-006 & 05-002 |
| 5 | 1 | PW22P00001P1 | FUEL PUMP See Figure 01-013 |
| 3 | 1 | PU01P01024F1 | RESERVOIR ASSEMBLY, WATER -- See Figure 01-007 & 05-003 |
| 2 | 1 | PH02P01056P1 | SEPARATOR ASSEMBLY, WATER -- See Figure 01-013 |
| 1 | 1 | PH12P01056P1 | GASKET See Figure 01-012 |
| AR | PH02P00015F1 | ENGINE ASSEMBLY (4TNV88-BXYB) |
