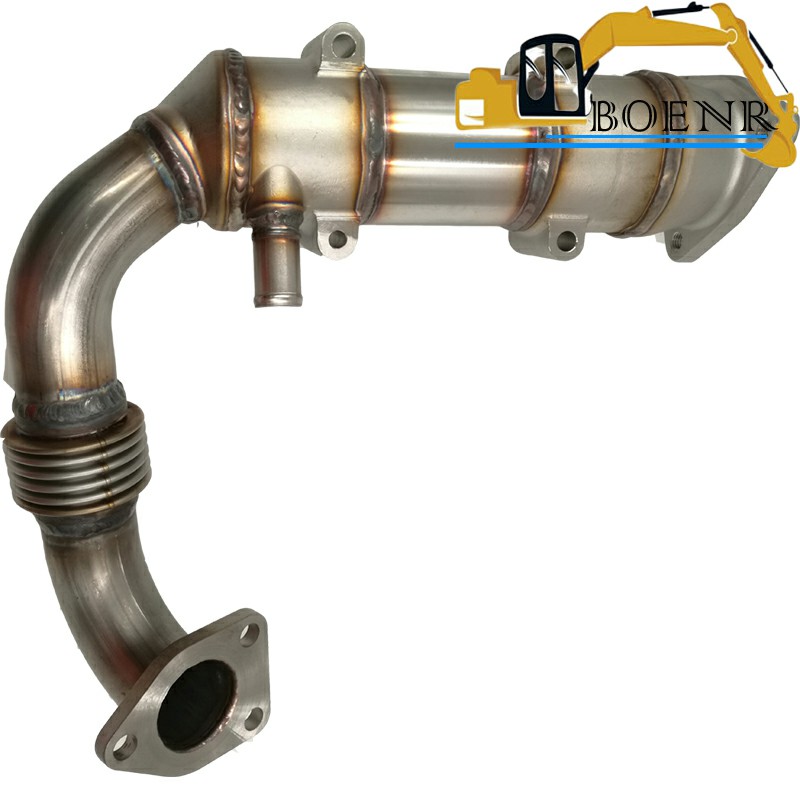

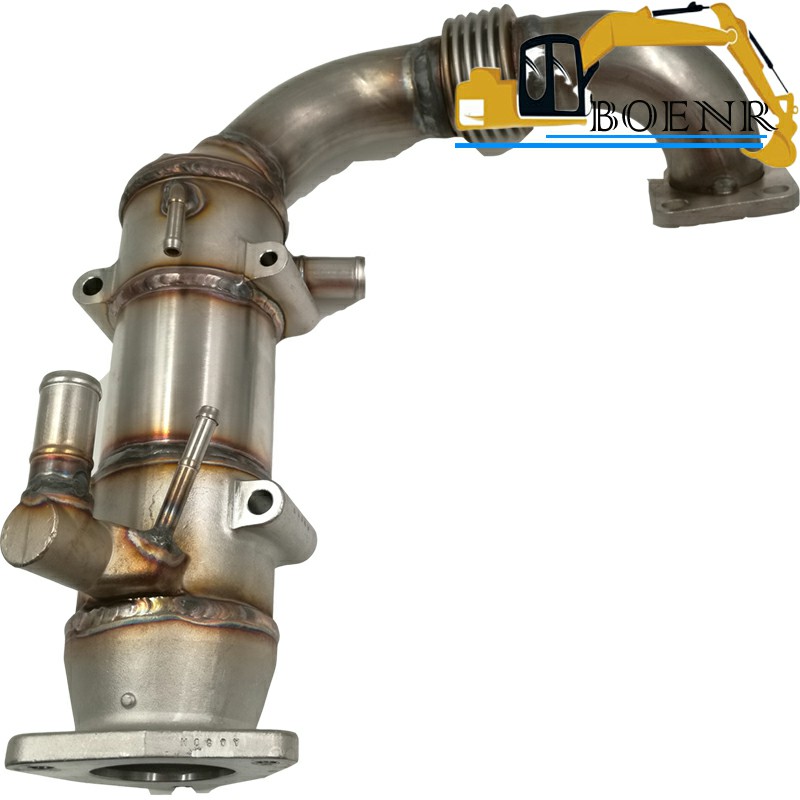

VH173091090A VH25608E0150 VHS173091090 J08E Engine EGR Cooler For SK350-8 SK380-8 SK330-8 SK350-10
SK350-8 SK380-8 SK330-8 SK350-10 SK380-10 J08E Engine EGR Cooler VH173091090A VH25608E0150 VHS173091090
| Part Name | EGR Cooler | Part Number | VH173091090A VH25608E0150 VHS173091090 |
| Brand | Kobelco、Hino | Applicable Model | SK350-8 SK380-8 SK330-8 SK350-10 SK380-10 |
Weight: 5 KG

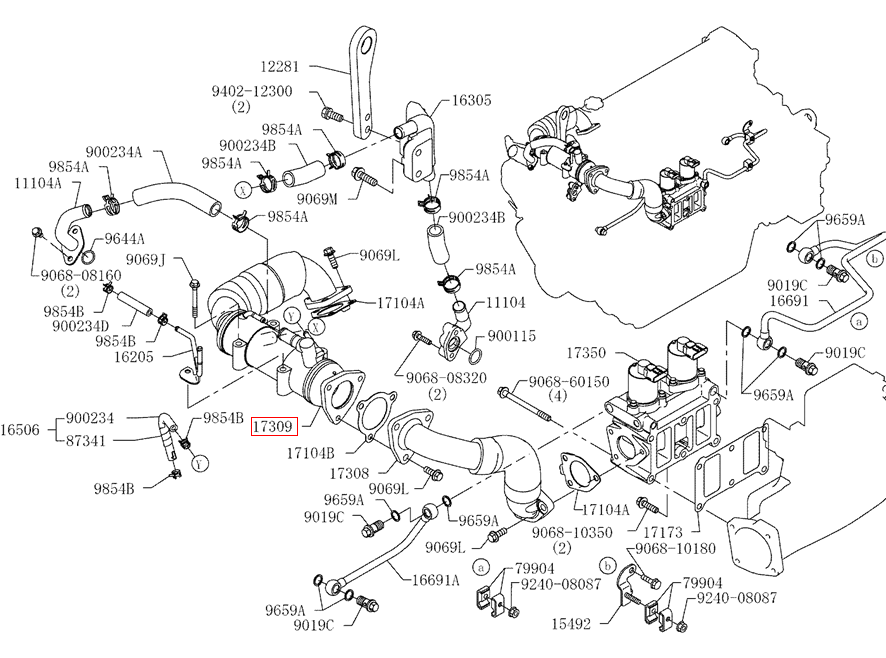

Parts Layout Drawing
Parts Catalog
| ITEM | QTY | PART NUMBER | PART Name |
| 9854B | 4 | 985413112A | CLIP |
| 9854A | 6 | 985426103A | CLIP |
| 9659A | 8 | VH965916105B | WASHER SOFT |
| 9644A | 1 | VH964402135A | O-RING |
| 9402-12300 | 2 | VH940212300A | BOLT BOLT, W/WASHER |
| 9359A | 2 | VH935910127A | STUD |
| 9331-10700 | 2 | VH933110700A | STUD |
| 9321-08300 | 2 | VH932108300A | STUD |
| 9311-08300 | 7 | VH931108300A | STUD |
| 9260-08220 | 3 | VH926008220A | WASHER PLAIN |
| 9241-10107 | 2 | VH924110107A | NUT |
| 9240-08087 | 2 | VH924008087A | NUT |
| 9240-08087 | 5 | VH924008087A | NUT |
| 9209A | 18 | VH920910141A | NUT |
| 9069R | 2 | VH906910176A | BOLT FLANGE |
| 9069P | 2 | VH906910117A | BOLT FLANGE |
| 9069M | 2 | VH906912122A | BOLT FLANGE |
| 9069L | 9 | VH906910175A | BOLT FLANGE |
| 9069J | 4 | VH906908132A | BOLT FLANGE |
| 9068-60400 | 2 | VH906860400A | BOLT FLANGE |
| 9068-60150 | 4 | VH906860150A | BOLT FLANGE |
| 9068-10450 | 2 | VH906810450A | BOLT FLANGE |
| 9068-10350 | 2 | VH906810350A | BOLT FLANGE |
| 9068-10180 | 1 | VH906810180A | BOLT FLANGE |
| 9068-10000 | 2 | VH906810000A | BOLT FLANGE |
| 9068-08550 | 5 | VH906808550A | BOLT FLANGE |
| 9068-08320 | 2 | VH906808320A | BOLT FLANGE |
| 9068-08320 | 4 | VH906808320A | BOLT FLANGE |
| 9068-08160 | 2 | VH906808160A | BOLT FLANGE |
| 9068-08000 | 5 | VH906808000A | BOLT FLANGE |
| 9029A | 2 | VH902910199B | BOLT |
| 9019C | 4 | VH901916340A | BOLT |
| 9019A | 3 | VH901908216A | BOLT |
| 900234D | 1 | VH900234547A | HOSE WATER |
| 900234B | 2 | VH900234545A | HOSE WATER |
| 900234A | 1 | VH900234544A | HOSE WATER |
| 900234 | 1 | VH900234543A | HOSE WATER |
| 900116 | 18 | VH900116442A | SPACER |
| 900115 | 1 | VH900115342A | GASKET |
| 87341 | 1 | VH873411421A | INSULATOR WATER HOSE |
| 79904 | 4 | VH799042180A | CLIP ASSY |
| 17350 | 1 | VH173501250A | CONTROL VALVE ASSY, ENGINE |
| 17309 | 1 | VH173091090C | CORE-ENGINE COOLER SUB ASSY, ENGINE |
| 17308 | 1 | VH173081310A | PIPE SUB ASSY, ENGINE |
| 17173 | 1 | VH171731860B | GASKET EXH MFLD |
| 17171A | 1 | VH171712310A | GASKET INTAKE MFLD |
| 17171 | 1 | VH171712200A | GASKET INTAKE MFLD |
| 17152 | 1 | VH171522580A | BRACKET EXH MFLD |
| 17136 | 1 | VH171365492A | BRACKET INTAKE PIPE |
| 17113 | 1 | VH171138490A | PIPE INTAKE |
| 17111 | 1 | VH171114632A | BRACKET MANIFOLD, INTAKE |
| 17105 | 1 | VH171051150A | BRACKET MANIFOLD SUB ASSY, EXHAUST |
| 17104B | 1 | VH171042000A | GASKET SUB ASSY, EXH MFLD |
| 17104A | 2 | VH171041990A | GASKET SUB ASSY, EXH MFLD |
| 17104 | 6 | VH171041610A | GASKET SUB ASSY, EXH MFLD |
| 17044 | 1 | VH170444610A | INSULATOR SUB ASSY, EXH |
| 17031 | 1 | VH170318024A | PIPE SUB ASSY, INTAKE |
| 16691A | 1 | VH166913750A | PIPE COOLANT |
| 16691 | 1 | VH166913322A | PIPE COOLANT |
| 16506 | 1 | VH165061561A | HOSE SUB ASSY, RAD |
| 16305 | 1 | VH163051050B | PIPE SUB ASSY, COOLANT |
| 16205 | 1 | VH162051330B | PIPE SUB ASSY, AIR ESCAPE |
| 15492 | 1 | VH154929400A | HOLDER CLIP |
| 12281 | 1 | VH122812251B | HANGER ENGINE |
| 11104A | 1 | VH111041110B | PIPE SUB ASSY, WATER |
| 11104 | 1 | VH111041101A | PIPE SUB ASSY, WATER |
