VHS171712000 VH171712000A Gasket For SK200-8 SK210-8 SK250-8 SK260-8 SK235SR
SK200-8 SK210-8 SK250-8 SK260-8 SK235SR Gasket VHS171712000 VH171712000A
| Part Name | Gasket | Part Number | VHS171712000 VH171712000A |
| Brand | Kobelco Kobeki Hino | Applicable Models | SK200-8 SK210-8 SK250-8 SK260-8 SK2215SR |
Weight:0.45 KG

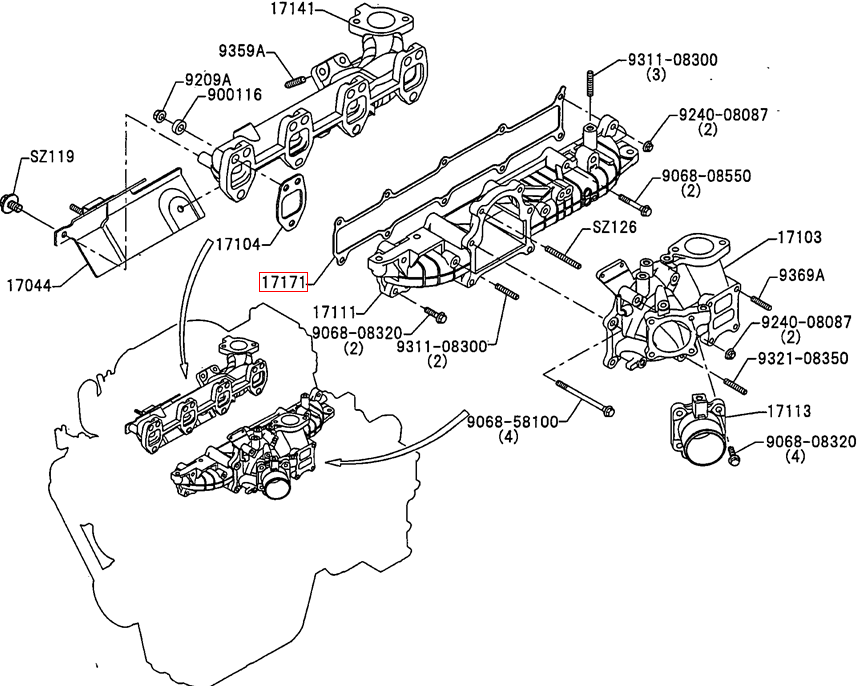

Parts Catalog
| ITEM | QTY | PART NUMBER | PART NAME |
| 2 | VHSZ92034317 | HOSE Water, Start Year: 06/01/2010 | |
| SZ920 | 2 | VH900234594A | HOSE Water, Years: 06/01/2002-06/01/2009 |
| SZ126 | 2 | VHSZ12608008 | STUD Hex Lobular |
| SZ119 | 5 | VHSZ11908216 | BOLT W/Washer |
| 9854C | 4 | VH985422104A | CLIP |
| 9854B | 6 | VH985413112A | CLIP |
| 9854A | 2 | VH985412101A | CLIP |
| 9659B | 2 | VH965914104A | WASHER Soft |
| 9659A | 2 | VH965912111A | WASHER Soft |
| 9369A | 2 | VH936908111A | STUD |
| 9359A | 4 | VH935910133A | STUD |
| 9321-08350 | 1 | VH932108350A | STUD |
| 9311-08300 | 5 | VH931108300A | STUD |
| 9240-08087 | 8 | VH924008087A | NUT |
| 9209A | 2 | VH920910202A | NUT |
| 9209A | 12 | VH920910202A | NUT |
| 9069D | 1 | VH906910124A | BOLT Flange |
| 9069C | 2 | VH906912111A | BOLT Flange (L=55) |
| 9069B | 2 | VH906910175A | BOLT Flange |
| 9068-58450 | 1 | VH906858450A | BOLT Flange |
| 9068-58100 | 4 | VH906858100A | BOLT Flange |
| 9068-10280 | 2 | VH906810280A | BOLT Flange |
| 9068-08650 | 1 | VH906808650A | BOLT Flange |
| 9068-08550 | 2 | VH906808550A | BOLT Flange |
| 9068-08320 | 6 | VH906808320A | BOLT Flange |
| 9068-08160 | 2 | VH906808160A | BOLT Flange |
| 9029A | 1 | VH902912180A | BOLT |
| 9019B | 1 | VH901914184A | BOLT |
| 900239 | 1 | VH900239694A | HOSE Air |
| 900234C | 1 | VH900234572A | HOSE Water |
| 900234B | 1 | VH900234556A | HOSE Water |
| 900234A | 1 | VH900234555A | HOSE Water |
| 900116 | 12 | VH900116442A | SPACER (T=8.0) |
| 900115 | 1 | VH900115342A | GASKET |
| 79904A | 2 | VH799043870A | CLIP Sub Assy, Years: 06/01/2002-06/01/2003 |
| 79904 | 2 | VH799042460A | CLIP Sub Assy |
| 25620 | 1 | VH25620E0130 | VALVE Assy, Egr, No. 1, Start Year: 06/01/2004 |
| 21576 | 2 | VH21576E0020 | CLIP , Start Year: 06/01/2004 |
| 17458 | 1 | VH174582860A | BRACKET Exh Pipe |
| 17350 | 1 | VH173501261A | VALVE Assy, Egr, Years: 06/01/2002-06/01/2003 |
| 17309 | 1 | VH173091120A | COOLER Sub Assy, Egr |
| 17308 | 1 | VH173081330A | PIPE Sub Assy, Egr |
| 17173 | 1 | VH171731850A | GASKET Exh Mfld |
| 17171 | 1 | VH171712000A | GASKET Intake Mfld |
| 17141 | 1 | VH171416570A | MANIFOLD Exh |
| 17113 | 1 | VH171138560A | PIPE Intake |
| 17111 | 1 | VH171114661A | MANIFOLD Intake |
| 17104A | 3 | VH171042010A | GASKET Sub Assy, Exh Mfld |
| 17104 | 4 | VH171041610A | GASKET Sub Assy, Exh Mfld |
| 17103 | 1 | VH17103E0060 | PIPE Sub-Assy, Intake |
| 17044A | 1 | VH170444750A | INSULATOR Sub Assy, Exh |
| 17044 | 1 | VH170445501A | INSULATOR Sub Assy, Exh |
| 1 | VH16332E0100 | PIPE Water Outlet, No.1, Start Year: 06/01/2010 | |
| 16332 | 1 | VH16332E0031 | Water Outlet, No.1, Years: 06/01/2002-06/01/2009 |
| 1 | VH16322E0140 | PIPE Water Inlet, Start Year: 06/01/2010 | |
| 16322 | 1 | VH16322E0031 | Water Inlet, Years: 06/01/2002-06/01/2009 |
| 16268 | 1 | VH16268E0010 | PIPE Water By-Pass |
