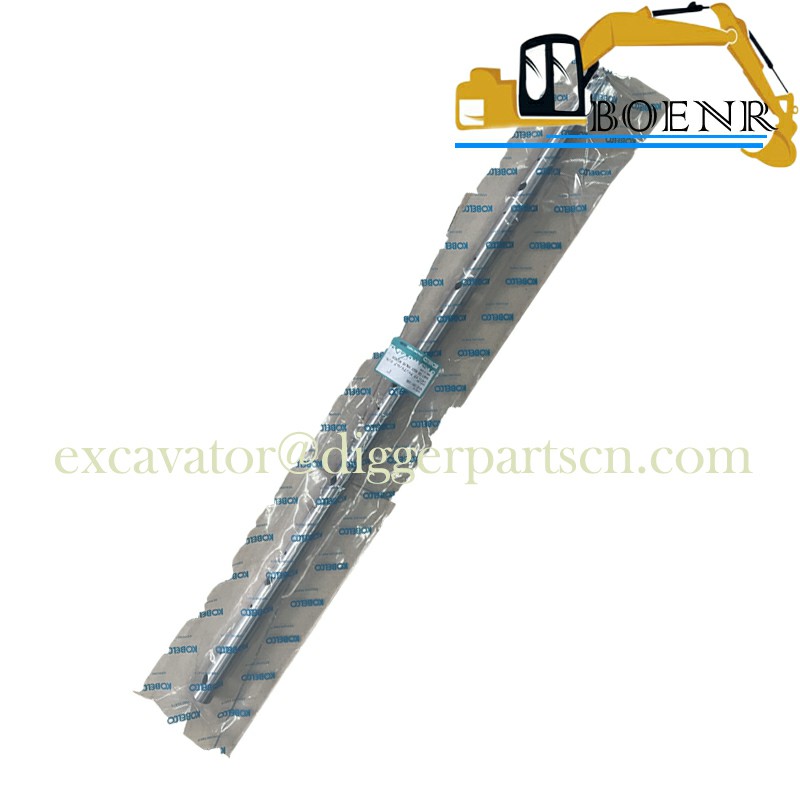

S1390-11390 VHS139011390 VH139011390A J08E Engine Valve Rocker Arm Rocker Assembly For SK330-8 SK350
SK330-8 SK350-8 Sk380-8 J08E Engine Valve Rocker Arm Rocker Assembly S1390-11390 VHS139011390 VH139011390A
| Part Name | Valve Rocker | Part Number | S1390-11390 VHS139011390 VH139011390A |
| Brand | Kobelco , kobeki、Hino | Applicable Model | SK330-8 SK350-8 Sk380-8 |
Weight: 2KG

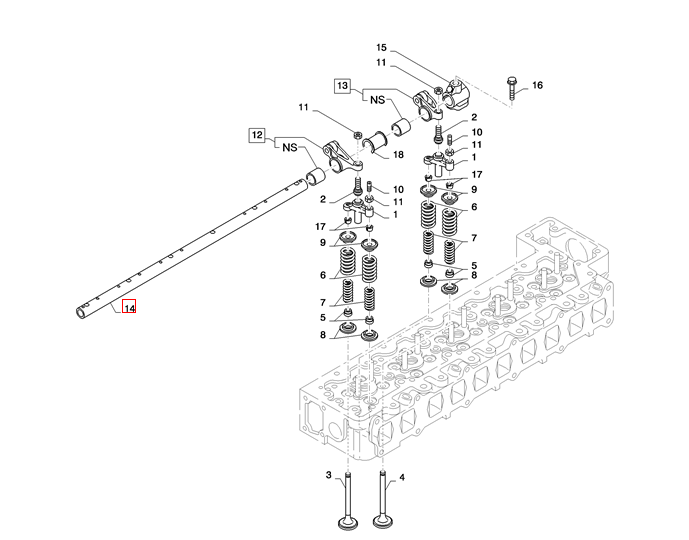

Parts Catalog
| ITEM | QTY | PARTS NO. | PART NAME |
| 18 | 6 | VHSZ91029116 | COLLAR |
| 17 | 48 | VHSZ91026013 | LOCK VALVE Spg. Retainer |
| 16 | 7 | VHSZ10910057 | FLANGE BOLT |
| 15 | 7 | VH13951E0030 | SUPPORT Valve Rocker |
| 14 | 1 | VHS139011390 | SHAFT Sub Assy., Valve Rocker |
| 13 | 6 | VH13802E0010 | ROCKER ARM Valve, No.2 |
| 12 | 6 | VH13801E0070 | ROCKER ARM Valve, No.1 |
| 11 | 13 | VHS137881030 | NUT Valve Adj. Screw |
| 10 | 1 | VHS137871210 | SCREW Valve Adj. |
| 9 | 24 | VHS137351470 | SEAT Valve Spg., Upr. |
| 8 | 24 | VH13734E0020 | VALVE SEAT Valve Spring |
| 7 | 1 | VHS137321500 | SPRING Valve, Inner |
| 6 | 1 | VHS137311610 | SPRING Valve, Outer |
| 5 | 24 | VHS137191470 | SEAL Valve Stem Oil |
| 4 | 12 | VHS137151733 | VALVE Exh., Std. |
| 3 | 12 | VHS137111632 | VALVE Intake, Std. |
| 2 | 12 | VHS137091030 | SCREW Sub Assy., Valve Adj. |
| 1 | 1 | VHS137061080 | CROSS Head Sub Assy. |
