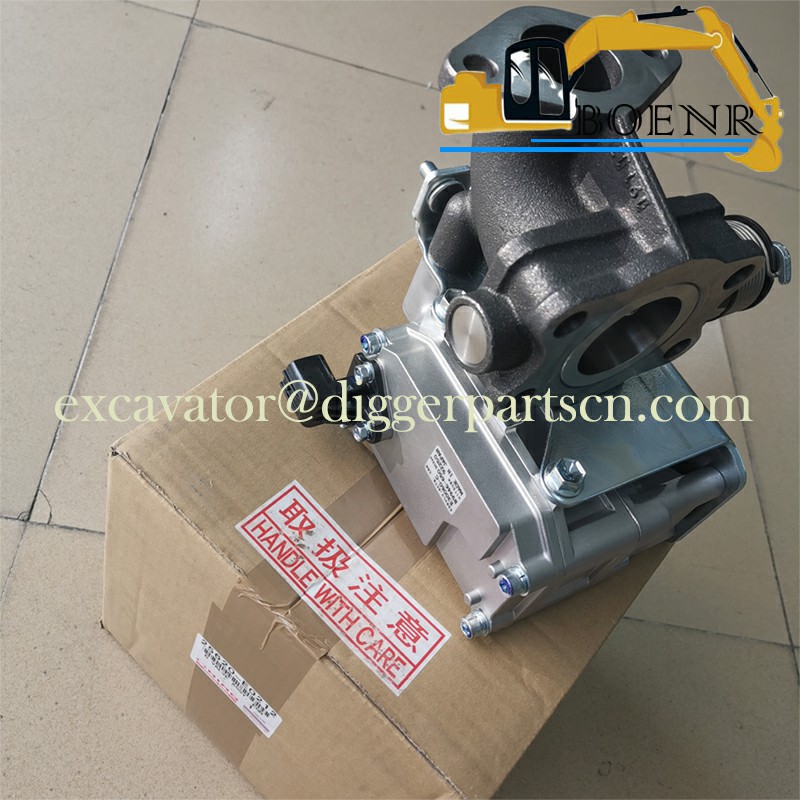

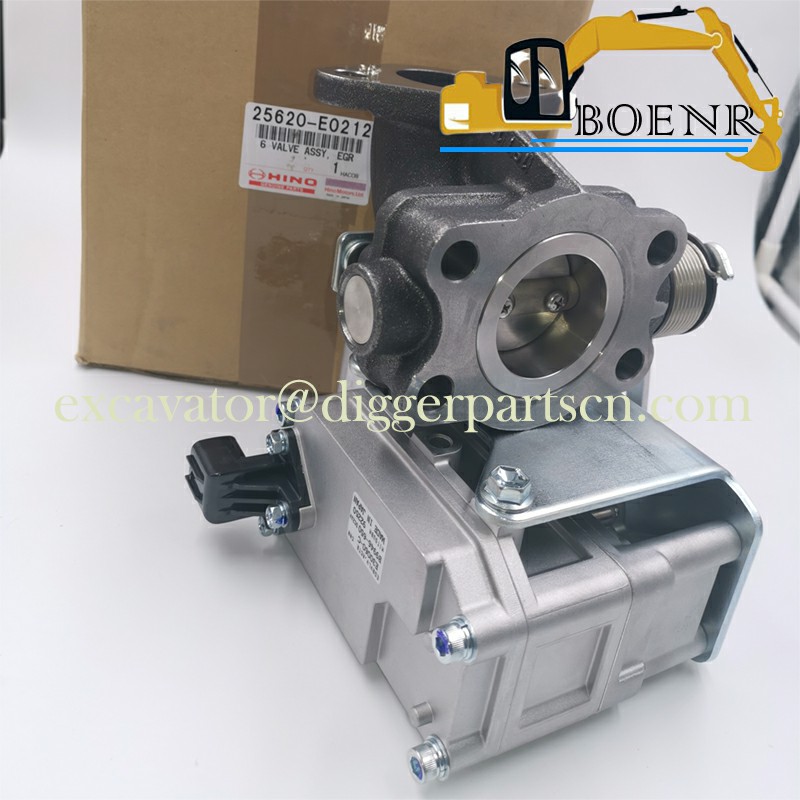

VH25620E0100 VH25620E0212 2560-E0212 P11C EGR valve For SK485-8 SK430-8 SK485-8
SK485-8 SK430-8 SK480-8 P11C Engine EGR valve VH25620E0100 VH25620E0212 2560-E0212
| Part Name | EGR valve | Part Number | VH25620E0100 VH25620E0212 2560-E0212 |
| Brand | Kobelco、Hino | Applicable Model | SK485-8 SK430-8 SK485-8 |
Weight:5KG

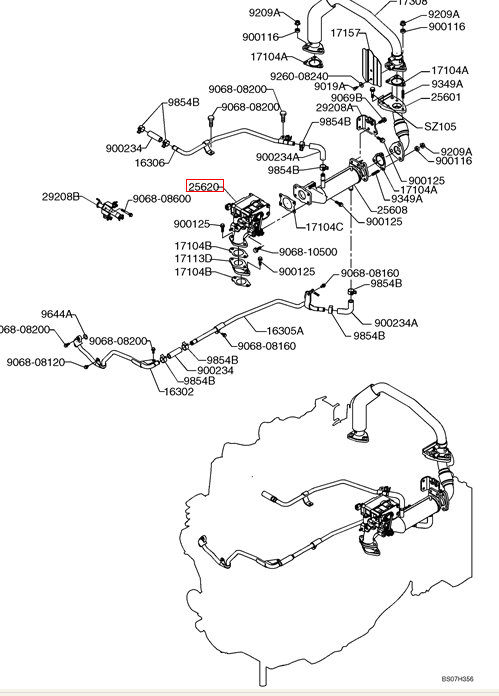

Parts Catalog
| ITEM | QTY | PART NUMBER | PART NAME |
| SZ105 | 2 | VHSZ10510029A | FLANGE BOLT Bolt, Flange |
| 9854B | 8 | VH985421103A | CLIP Clip |
| 9644A | 1 | VH964401925A | O-RING O-Ring |
| 9349A | 6 | VH934900139A | Stud |
| 9260-08240 | 2 | VH926008240A | WASHER Washer, Plain |
| 9209A | 29 | VH920910202A | NUT |
| 9069B | 2 | VH906910175A | BOLT L=28 |
| 9068-10500 | 4 | VH906810500A | FLANGE BOLT Bolt, Flange |
| 9068-08600 | 1 | VH906808600A | BOLT Flange |
| 9068-08200 | 5 | VH906808200A | BOLT |
| 9068-08160 | 2 | VH906808160A | BOLT |
| 9068-08120 | 1 | VH906808120A | BOLT |
| 9019A | 2 | VH901908216A | BOLT |
| 900234A | 2 | VH900234530A | HOSE Hose, Water |
| 900234 | 2 | VH900234529A | HOSE Hose, Water |
| 900125 | 14 | VH900125236A | BOLT Bolt |
| 900116 | 31 | VH900116442A | SPACER (8.0) |
| 29208B | 1 | VH292082680A | BRACKET Bracket Assembly |
| 29208A | 1 | VH292082670A | BRACKET Bracket Assembly |
| 25620 | 1 | VH25620E0100 | VALVE Valve Assembly, EGR |
| 25608 | 1 | VH25608E0170 | COOLER Cooler Assembly, EGR |
| 25601 | 1 | VH25601E0030 | PIPE Tube, EGR |
| 17308 | 1 | VH173081282A | PIPE Tube, EGR |
| 17157 | 1 | VH171572070A | INSULATOR Insulator, Exhaust Manifold Heat |
| 17113D | 1 | VH17113E0B70 | PIPE Tube, Intake |
| 17104C | 1 | VH171042090A | GASKET Gasket, Exhaust Manifold |
| 17104B | 2 | VH171041910A | GASKET Gasket, Exhaust Manifold |
| 17104A | 3 | VH171041960A | GASKET Gasket, Exhaust Manifold |
| 16306 | 1 | VH16306E0120 | PIPE Tube, Water Outlet |
| 16305A | 1 | VH163051020B | PIPE Tube, Coolant |
| 16302 | 1 | VH16302E0260 | PIPE Tube, Water Inlet |
