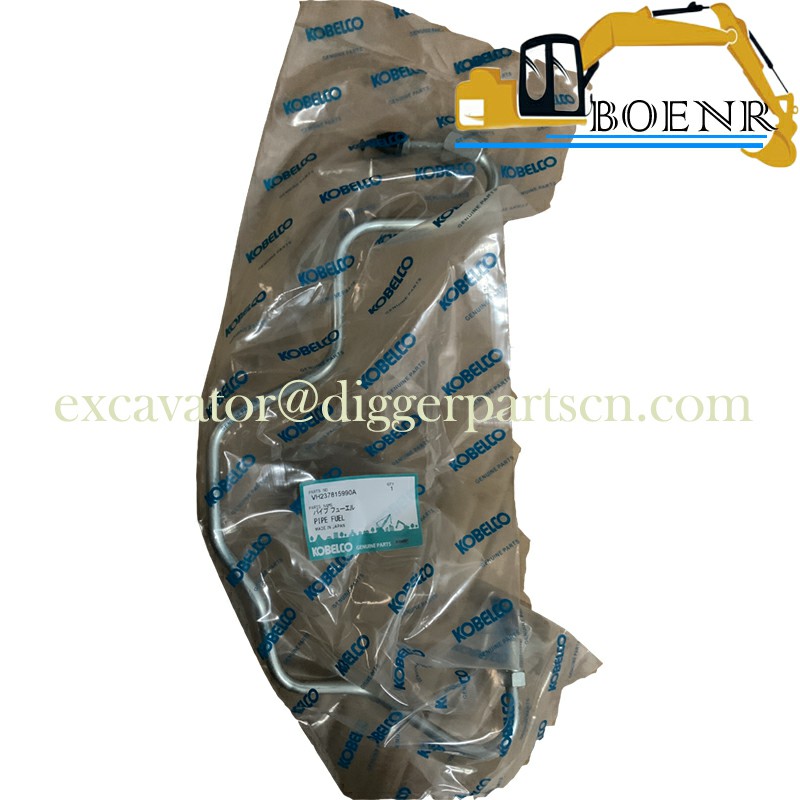

VH237815990A VHS237815990 J08E Engine high pressure fuel pipe For SK330-8 SK350-8 SK380-8
SK330-8 SK350-8 SK380-8 J08E Engine high pressure fuel pipe VH237815990A VHS237815990
| Part Name | fuel pipe | Part Number | VH237815990A VHS237815990 |
| Brand | Kobelco、Kobeki | Applicable Model | SK330-8 SK350-8 SK380-8 |
Weight:0.5KG

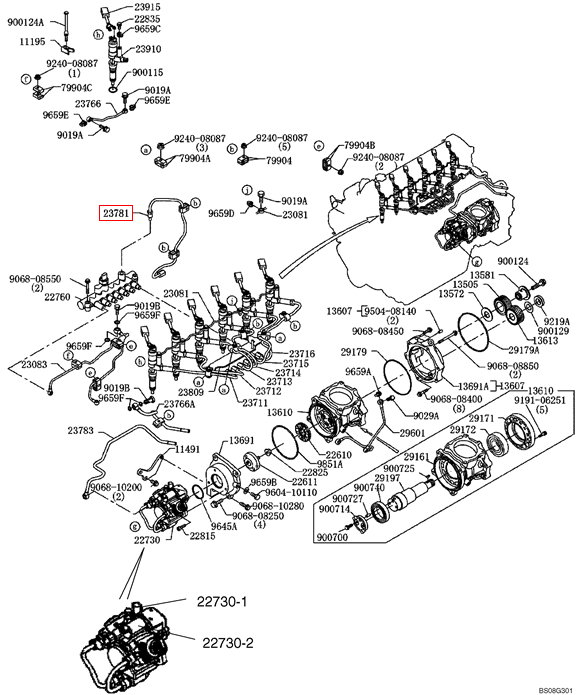

Parts Catalog
| ITEM | QTY | PARTS NO. | PART NAME |
| 9851A | 1 | SZ301-01054 | O-RING |
| 9659F | 4 | 965914104A | WASHER SOFT |
| 9659E | 2 | 965908119A | WASHER SOFT |
| 9659D | 1 | 965908118A | WASHER SOFT |
| 9659C | 6 | 965908120A | WASHER SOFT |
| 9659B | 1 | 965910105A | WASHER SOFT |
| 9659A | 3 | SZ430-10011 | WASHER SOFT |
| 9645A | 1 | SN732-10493 | O-RING |
| 9604-10110 | 1 | 9604-10110 | PLUG |
| 9504-08140 | 2 | 950408140A | PIN STRAIGHT |
| 9240-08087 | 11 | 924008087A | NUT |
| 9219A | 1 | 921924129A | NUT |
| 9191-06251 | 5 | 91910-6251A | FLANGE |
| 9068-10280 | 1 | SH552-11028 | BOLT FLANGE |
| 9068-10200 | 2 | 906810200A | BOLT FLANGE |
| 9068-08550 | 4 | 906808550A | BOLT FLANGE |
| 9068-08450 | 1 | SH552-10845 | BOLT FLANGE |
| 9068-08400 | 8 | SH552-10840 | BOLT FLANGE |
| 9068-08250 | 4 | 9068-08250 | BOLT FLANGE |
| 9029A | 3 | 902910261A | BOLT |
| 9019B | 2 | 901914184A | BOLT |
| 9019A | 3 | 901908316A | BOLT |
| 900740 | 1 | 900740116A | BEARING |
| 900727 | 1 | 900727136A | PIN |
| 900725 | 1 | 900725103A | KEY |
| 900714 | 1 | 900714113A | COLLAR |
| 900700 | 2 | 900700327A | BOLT |
| 900129 | 1 | SZ910-29033 | COLLAR |
| 900124 | 6 | SZ910-24278 | BOLT BOLT |
| 900115 | 6 | SZ910-15047 | GASKET O-RING |
| 79904C | 2 | 799041240A | CLIP |
| 79904B | 4 | 799043390A | CLIP |
| 79904A | 6 | 799043870A | CLIP |
| 79904 | 10 | 799043860A | CLIP |
| 29601 | 1 | S2960-12151 | PIPE ASSY. SUB ASSY, OIL |
| 29197 | 1 | 291971570A | CRANKSHAFT |
| 29179A | 1 | S2917-91160 | O-RING |
| 29179 | 1 | S2917-91150 | O-RING |
| 29172 | 1 | 291721220A | BEARING |
| 29171 | 1 | 291711360A | TAPERED ROLLER BEARING HOLDER |
| 29161 | 1 | 291611490A | BLOCK CYL |
| 23915 | 6 | 239151180A | VALVE INJECTOR |
| 23670-E0010C | CORE-INJECTION NOZZLE Return Number, For N.A. Only | ||
| AR | 23670-E0010R | REMAN-INJECTION NOZZLE SK350-8 ACERA MARK 8, TIER 3, 10/06-, Reman For New P/N's 239101430A & 23670-E0010, N.A. Only | |
| 23910 | 6 | 239101430A | FUEL SYSTEM INJECTOR ASSY, COMMON-RAIL |
| 23809 | 1 | 238091794A | BRACKET SUB ASSY, FUEL PIPE |
| 23783 | 1 | 237832720A | PIPE FUEL |
| 23781 | 1 | 237815990A | PIPE FUEL |
| 23766A | 1 | 237663410A | PIPE THROUGH FEED |
| 23766 | 1 | 237662860A | PIPE THROUGH FEED |
| 23716 | 1 | 23716-2390A | INJECTION PIPE INJ, NO 6 |
| 23715 | 1 | 23715-2390A | INJECTION PIPE INJ, NO 5 |
| 23714 | 1 | 23714-2580A | INJECTION PIPE INJ, NO 4 |
| 23713 | 1 | 23713-2560A | INJECTION PIPE INJ, NO 3 |
| 23712 | 1 | 23712-2630A | INJECTION PIPE INJ, NO 2 |
| 23711 | 1 | 23711-2660A | INJECTION PIPE INJ, NO 1 |
| 23083 | 1 | 230832332A | PIPE SUB ASSY, THROUGH FEED |
| LEAKAGE | |||
| 23081 | 1 | 23081-2640A | SUB ASSY, NOZZLE |
| 22835 | 6 | 228351570A | BOLT |
| 22825 | 1 | 22825-2570 | NUT |
| 22815 | 3 | S2281-53740 | BOLT |
| 22760 | 1 | 22760-1241 | RAIL ASSY. COMMON-RAIL ASSY |
| 22730-2 | 1 | S2273-11071 | SECTION |
| 22730-1 | 1 | NSS | NOT SERVICED SEPARATELY SENOR, FUEL TEMPATURE |
| 22730 | 1 | 22100-E0021 | PUMP High Pressure |
| 22611 | 1 | S2261-12421 | FLANGE COUPLING |
| 22610 | 1 | S2261-01910 | COUPLING ASSY |
| 13691A | 1 | 13691-1830A | BRG HOLDER |
| 13691 | 1 | 11334-E0060 | CASE BRG HOLDER |
| 13613 | 1 | S1361-32241 | GEAR INJ PUMP DRIVE |
| 13610 | 1 | S1361-02260 | SHAFT ASSY. ASSY, INJ PUMP Drive |
| 13607 | 1 | 13607-E0010 | CASE ASSY. SUB ASSY, BRG HOLDER |
| 13581 | 1 | S1358-11702 | SHAFT IDLE GEAR |
| 13572 | 1 | S1357-21490 | PLATE IDLE GEAR THRUST |
| 13505 | 1 | S1350-52552 | GEAR SUB ASSY, IDLE |
| 11491 | 1 | S1149-12570 | BRACKET INJ. PUMP |
| 11195 | 6 | S1119-51180 | CLAMP NOZZLE HOLDER |
