VH233002800A Fuel Filter Assembly For SK200-8 SK210-8 SK250-8 SK260-8 SK350-8 SK380-8
SK200-8 SK210-8 SK250-8 SK260-8 SK350-8 SK380-8 Fuel Filter Assembly VH233002800A
| Part Name | Fuel Filter Assy | Part Number | VH233002800A |
| Brand | Kobeki、Kobelco、Hino | Applicable Model | SK200-8 SK210-8 SK250-8 SK260-8 SK350-8 SK380-8 |
Weight:2.5KG

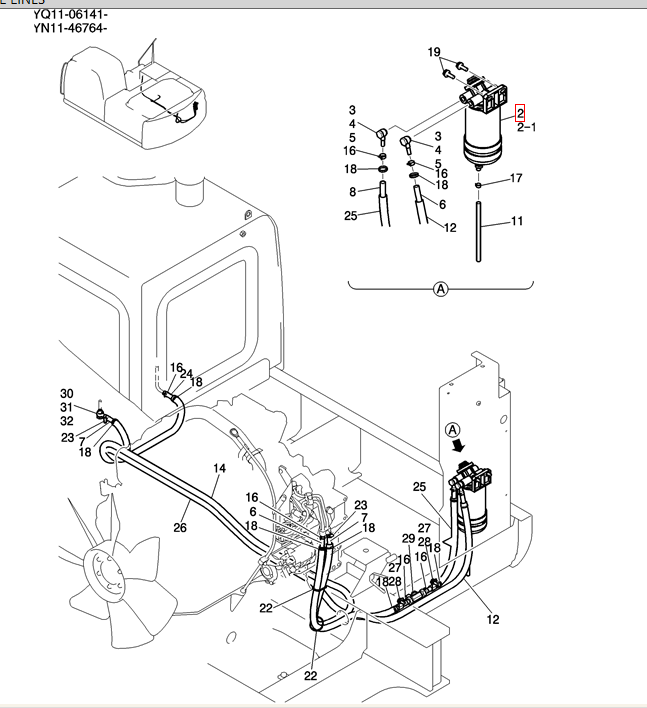

Parts Catalog
| ITEM | QTY | PARTS NO. | PART NAME |
| 32 | 2 | YN21P01058P1 | PACKING |
| 31 | 1 | YN21P01057P1 | BOLT Eye |
| 30 | 1 | YN21P01056P1 | TUBE |
| 29 | 1 | YN25V00004P1 | VALVE Stop |
| 28 | 2 | ZC46X16011 | CLIP |
| 27 | 2 | ZM73C10020 | BOLT Sems |
| 26 | 1 | HX81X19220DX | TUBE |
| 25 | 1 | HX81X19040DX | TUBE |
| 24 | 1 | HX11F06230DX | HOSE |
| 23 | 2 | ZC16X01800 | CLIP |
| 22 | 2 | PY01P01043D3 | CLIP |
| 19 | 2 | ZM73C10030 | BOLT Sems |
| 18 | 8 | PY01P01043D2 | CLIP |
| 17 | 1 | PH05P01088D6 | CLIP |
| 16 | 6 | PH05P01088D7 | CLIP |
| 14 | 1 | HX81X19240DX | TUBE |
| 12 | 1 | HX81X19150DX | TUBE |
| 11 | 1 | HX11Y06022DX | FLEXIBLE HOSE |
| 8 | 1 | HX11F06052DX | HOSE |
| 7 | 1 | HX11F06250DY | HOSE |
| 6 | 1 | YN21P01041P1 | HOSE |
| 5 | 4 | VHSZ43014003 | WASHER Soft |
| 4 | 2 | VHSZ91024430 | BOLT |
| 3 | 2 | VH237811620A | PIPE Fuel |
| 2-1 | 1 | YN30T01002P1 | ELEMENT Filter Hino pn VH23390E0010 |
| 2 | 1 | VH233002800A | FILTER ASSY |
| AR | YN21P00022F1 | Fuel |
