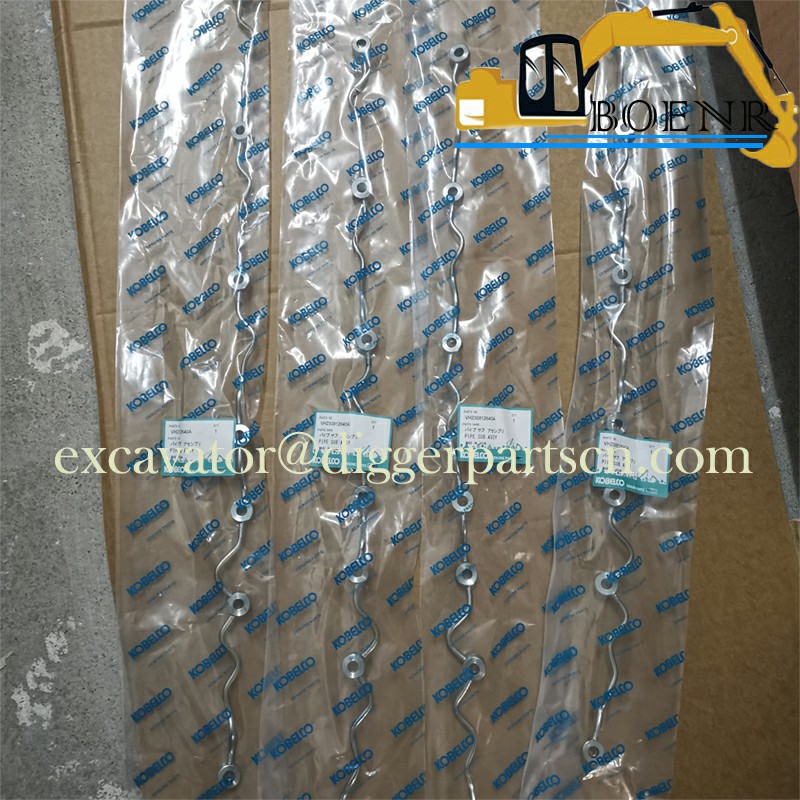

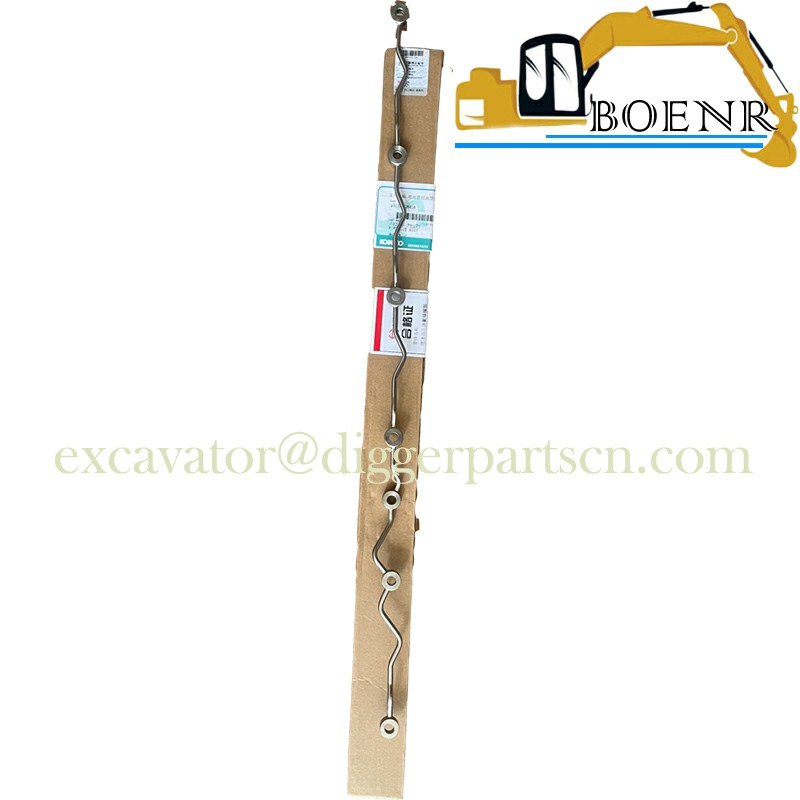

VH230812640A VH230812050A 23708-E0100 J08E engine Injector Overflow Pipe For SK330-8 SK350-8 SK380-8
SK330-8 SK350-8 SK380-8 J08E engine Injector Overflow Pipe VH230812640A VH230812050A 23708-E0100
| Part Name | Pipe | Part Number | VH230812640A VH230812050A 23708-E0100 |
| Brand | Kobelco, Kobeki, Hino | Applicable Model | SK330-8 SK350-8 SK380-8 |
Weight: 2KG

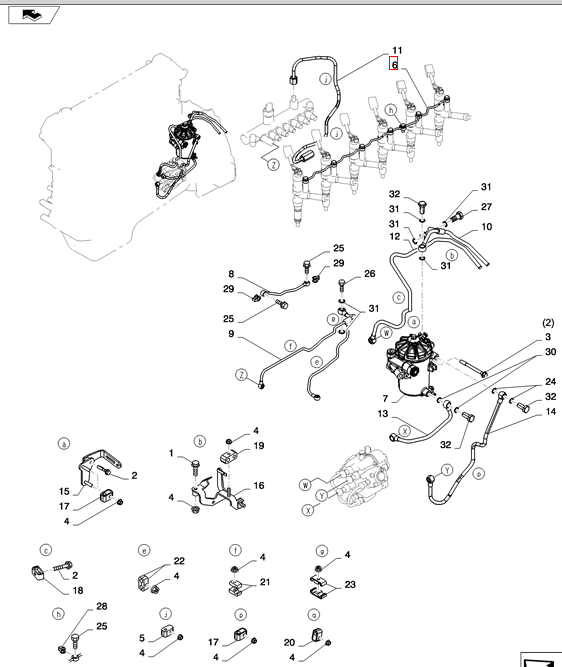

Parts Catalog
| ITEM | QTY | PART NUMBER | PART NAME |
| 32 | 4 | VHSZ91024452 | BOLT |
| 31 | 4 | VHSZ43014003 | WASHER Soft |
| 30 | 1 | VHSZ43010011 | WASHER Soft |
| 29 | 2 | VHSZ43008013 | WASHER Soft |
| 28 | 1 | VHSZ43008012 | WASHER Soft |
| 27 | 1 | VHSZ40114031 | BOLT |
| 26 | 2 | VHSZ40114004 | BOLT |
| 25 | 3 | VHSZ40108003 | BOLT Union |
| 24 | 5 | VHSZ20914017 | WASHER Soft |
| 23 | 2 | VHS799041320 | |
| 22 | 2 | VHS799041250 | CLIP |
| 21 | 2 | VHS799041240 | CLIP Sub Assy. |
| 20 | 2 | VHS799041220 | CLIP Sub Assy. |
| 19 | 2 | VHS799041740 | CLIP |
| 18 | 2 | VHS799041320 | |
| 17 | 4 | VHS799041220 | CLIP Sub Assy. |
| 16 | 1 | VH61086E0210 | BRACKET, SUPPORTING Fuel Inlet Pipe |
| 15 | 1 | VH61086E0010 | BRACKET, SUPPORTING Fuel Inlet Pipe |
| 14 | 1 | VH23814E0270 | PIPE Fuel Delivery |
| 13 | 1 | VH23814E0500 | PIPE Fuel Delivery |
| 12 | 1 | VH23811E0790 | PIPE Fuel, No.1 |
| 11 | 1 | VH23811E0600 | PIPE Fuel, No.1 |
| 10 | 1 | VH23803E0640 | PIPE Fuel Return |
| 9 | 1 | VH23803E0390 | PIPE Fuel Return |
| 8 | 1 | VHS237662860 | PIPE Through Feed |
| 1 | VH23304EV030 | ELEMENT Element - not shown | |
| 7 | 1 | VH23300E0351 | FUEL FILTER Assembly |
| 6 | 1 | VHS230812640 | PIPE Sub Assy., Nozzle Leakage |
| 5 | 4 | VH21576E0010 | CLIP |
| 4 | 14 | VHSL15010808 | NUT |
| 3 | 2 | VHSH55216005 | FLANGE BOLT |
| 2 | 9 | VHSH55210840 | FLANGE BOLT |
| 1 | 1 | VHSH55210832 | FLANGE BOLT |
