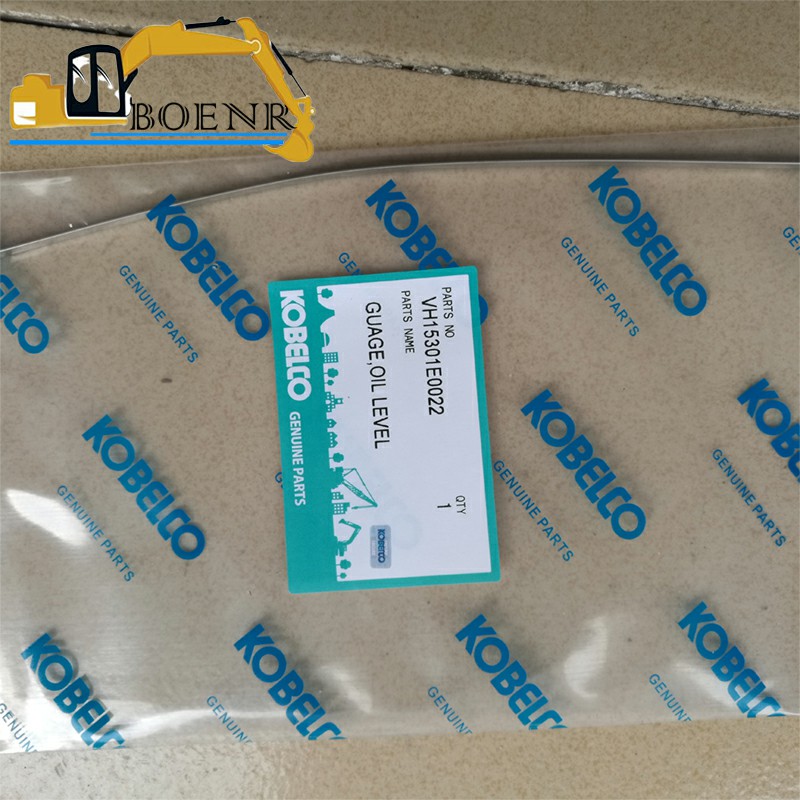

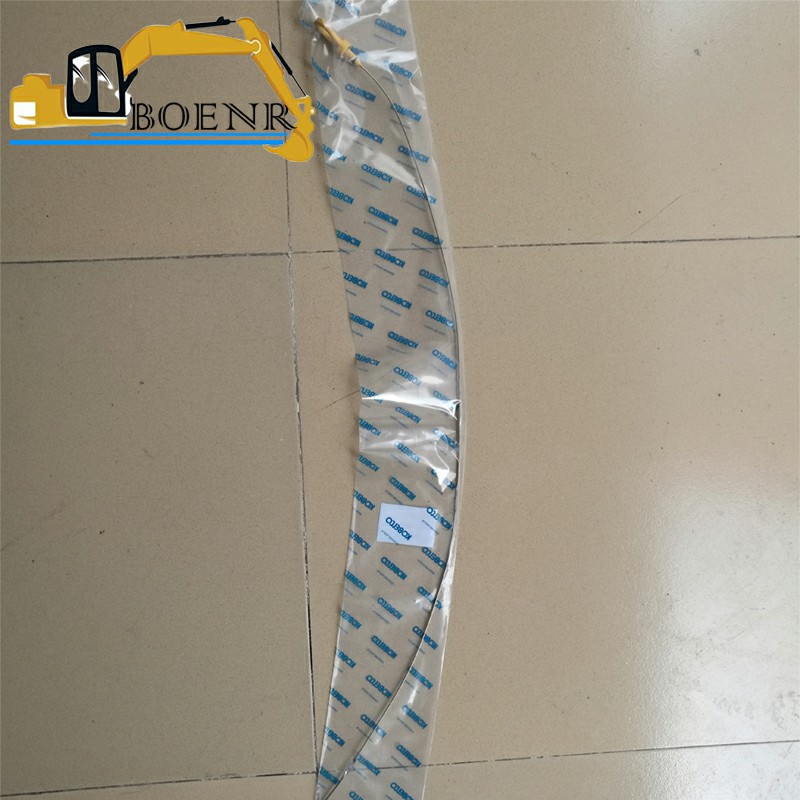

VH15301E0022 VH15301E0020 Level Gauge For SK200-8 SK210-8 SK215SR SK235SR-2 SK250-8 SK260-8

SK200-8 SK210-8 SK215SR SK235SR-2 SK250-8 SK280-8 Level Gauge VH15301E0022 VH15301E0020

Part Name	Oil Pump	Part Number	VH15301E0022 VH15301E0020
Brand	Kobelco 、kobeki	Applicable Model	SK200-8 SK210D-8 SK215SRLC SK235SR-2

Weight: 2.5KG

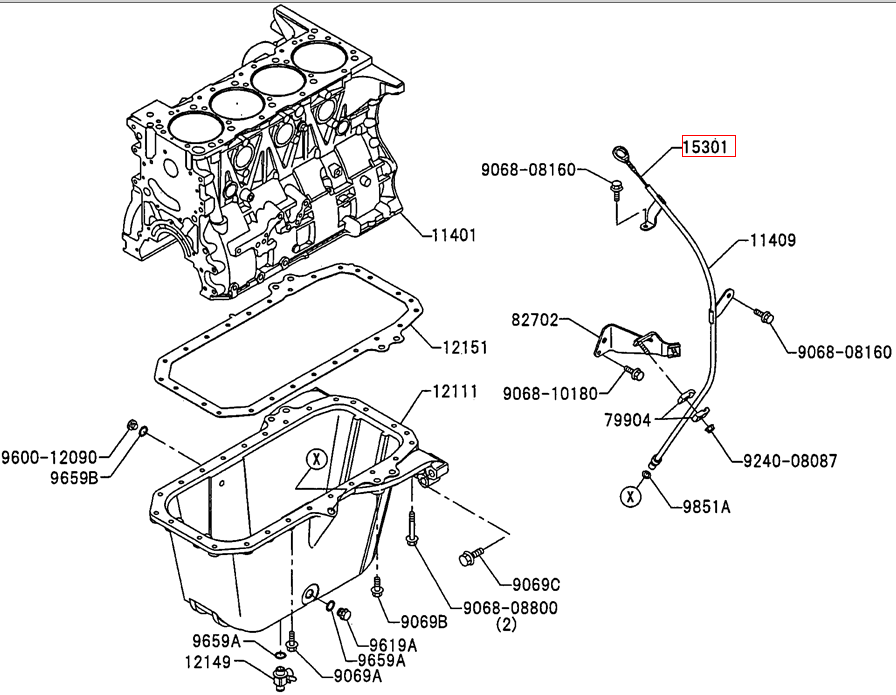

Parts Catalog

ITEM	QTY	PART NUMBER	Description
9851A	1	VH985110138A	O-RING
9659B	1	VH965912111A	WASHER Soft
9659A	2	VH965918105A	WASHER Soft
9639A	3	VH963942104A	PLUG Expansion
9633-50160	4	VH963350160A	PLUG Sealing
9633-30160	1	VH963330160A	PLUG Sealing
9633-26160	4	VH963326160A	PLUG Sealing
9633-22160	2	VH963322160A	PLUG Sealing
9633-17120	5	VH963317120A	PLUG Sealing
9619A	1	VH961918113A	PLUG
9600-12090	1	VH960012090A	PLUG
9509B	2	VH950908123A	PIN
9509A	11	VH950908122A	PIN
9240-08087	1	VH924008087A	NUT
9069C	4	VH906914105A	BOLT Flange (L=60)
9069B	4	VH906912122A	BOLT Flange (L=40)
9069A	24	VH906908181A	BOLT Flange
9068-10180	1	VH906810180A	BOLT Flange
9068-08800	2	VH906808800A	BOLT Flange
9068-08160	2	VH906808160A	BOLT Flange
82702	1	VH82702E0E80	BRACKET Sub Assy, Wiring Harness
79904	2	VH799041220A	CLIP Sub Assy
15605	4	VH156051250A	VALVE Sub Assy, Oil Check
15301	1	VH15301E0020	LEVEL GAUGE Sub-Assy, Oil Level
15117	1	VH151171170A	BUSHING Body Oil Pump
12151	1	VH12151E0020	GASKET Oil Pan
12149	1	VH121491030A	VALVE Oil Drain
12111	1	VH12111E0061	PAN Pan.Oil
11521	10	VH115211261A	BOLT Bearing Cap
11467	4	VH114673220A	LINER Cyl, S/S (C)
11467	4	VH114673210A	LINER Cyl, S/S (B)
11467	4	VH114673200A	LINER Cyl, S/S (A)
11409	1	VH11409E0190	GUIDE Sub Assy, Oil Level Gage
11408	4	VH114081400A	PIPE Sub Assy, Oil Jet
11401	1	VH11401E0701	BLOCK Block Sub Assy, Cyl
