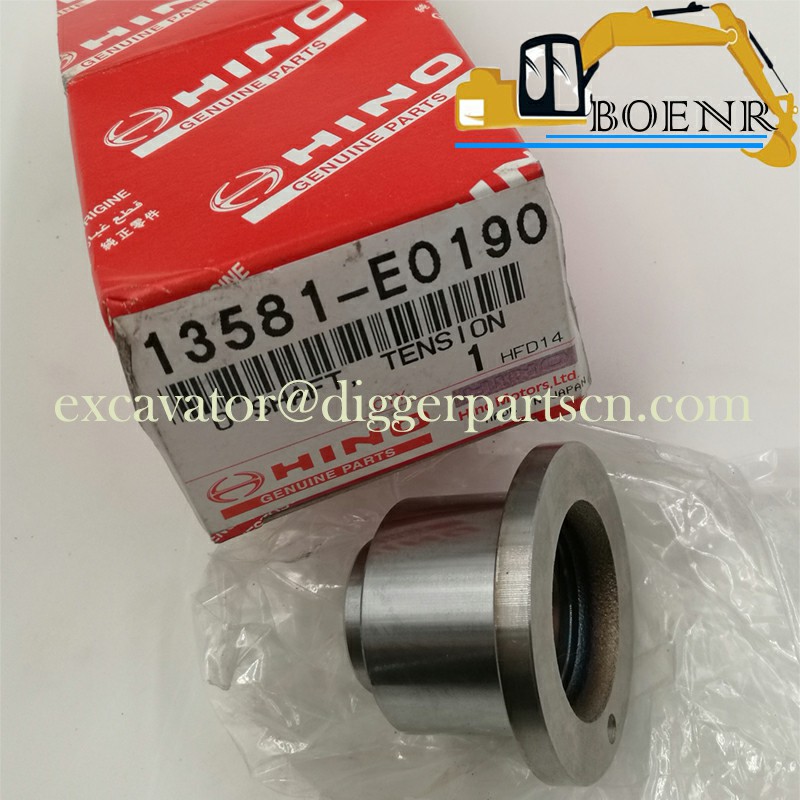

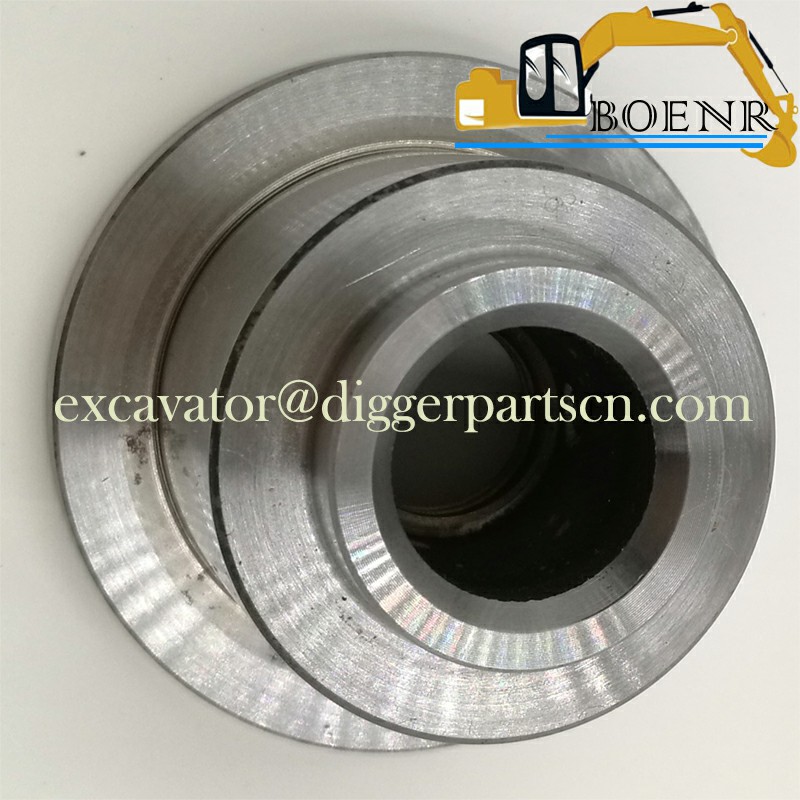

VH135811711A VH13581E0190 13581-E0190 J05E J08e Engine Idle Gear For SK200-8 SK210-8 SK250-8 SK260-8
SK200-8 SK210-8 SK250-8 SK260-8 SK330-8 SK380-8 J05E J08e Engine Idle Gear VH135811711A VH13581E0190 13581-E0190 VHS135811711
| Part Name | Gear | Part Number | VH135811711A VH13581E0190 13581-E0190 VHS135811711 |
| Brand | Kobelco, Kobeki、Hino | Applicable Model | SK200-8 SK210-8 SK250-8 SK260-8 SK330-8 SK380-8 |
Weight: 0.5 kg

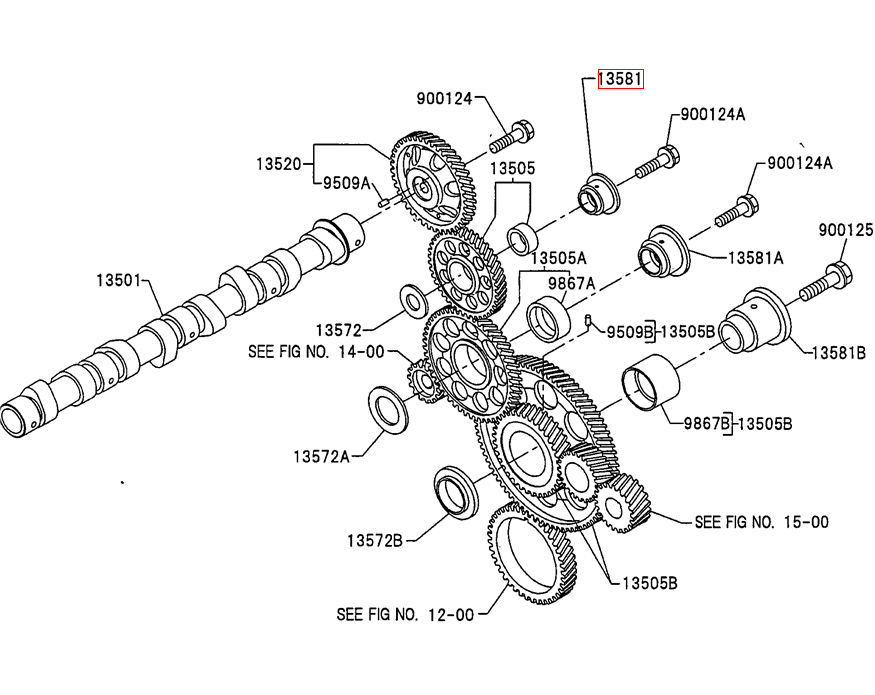

Parts Catalog
| ITEM | QTY | PARTS NO. | PART NAME |
| 9867B | 1 | VH986757106A | BUSHING |
| 9867A | 1 | VH986750134A | BUSHING |
| 9509B | 1 | VH950906124A | PIN |
| 9509A | 1 | VH950906123A | PIN |
| 900125 | 1 | VH900125101A | BOLT |
| 900124A | 2 | VH900124502A | BOLT |
| 900124 | 1 | VH900124503A | BOLT |
| 13581B | 1 | VH135811440A | SHAFT Idle Gear |
| 13581A | 1 | VH135811530A | SHAFT Idle Gear |
| 13581 | 1 | VH135811711A | SHAFT Idle Gear |
| 13572B | 1 | VH135721271A | PLATE Idle Gear Thrust |
| 13572A | 1 | VH135721230A | PLATE Idle Gear Thrust |
| 13572 | 1 | VH135721250A | PLATE Idle Gear Thrust |
| 13520 | 1 | VH135201090A | GEAR Assy, Camshaft |
| 13505B | 1 | VH135052521A | GEAR Sub Assy, Idle |
| 13505A | 1 | VH135052292A | GEAR Sub Assy, Idle |
| 13505 | 1 | VH135052360A | GEAR Sub Assy, Idle |
| 13501 | 1 | VH135011610A | CAMSHAFT Sub Assy |
