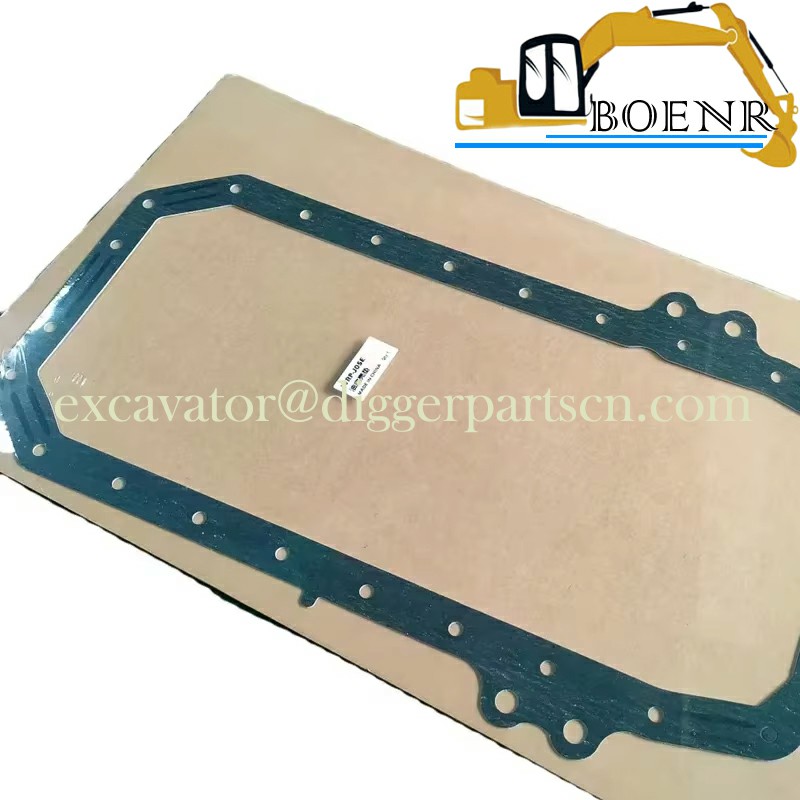

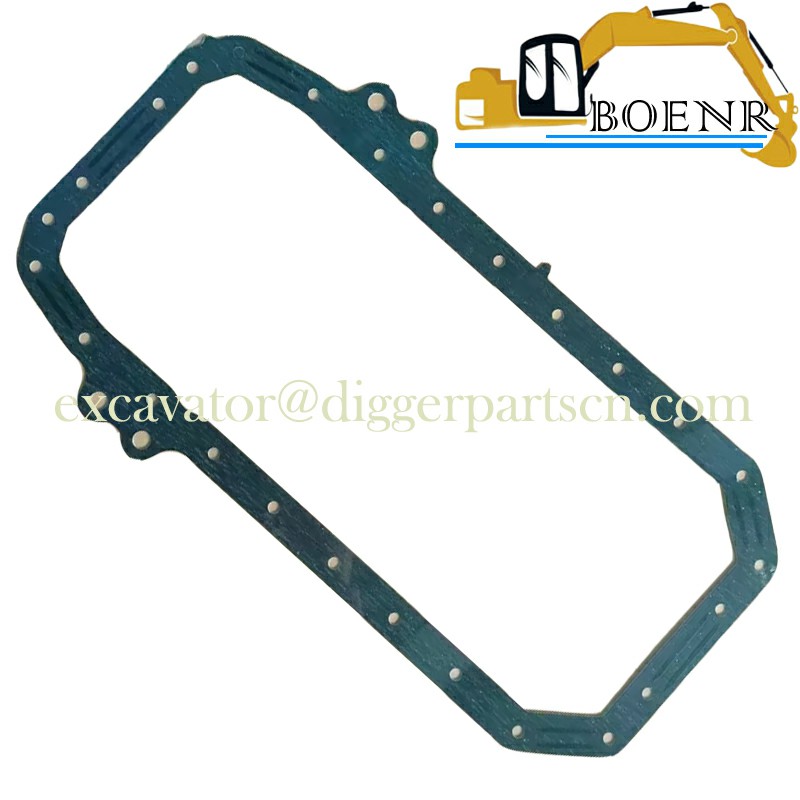

VH12151E0020 J05E Engine Oil Pan Gasket For SK200-8 SK250-8 SK260-8 SK210-8 SK210-10 SK250-10
SK200-8 SK250-8 SK260-8 SK210-8 SK210-10 SK250-10 J05E Engine Oil Pan Gasket VH12151E0020
| Part Name | Gasket | Part Number | VH12151E0020 |
| Brand | Kobeki、Kobelco、Hino | Applicable Model | SK200-8 SK250-8 SK260-8 SK210-8 SK210-10 SK250-10 |
Weight:0.5KG

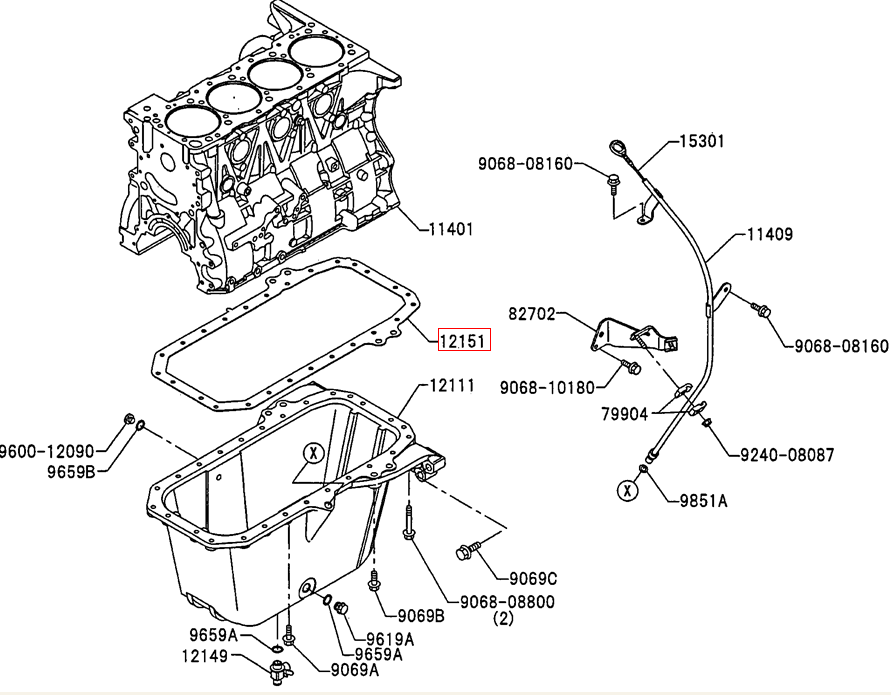

Parts Catalog
| ITEM | QTY | Part Number | Part Name |
| 9851A | 1 | VH985110138A | O-RING |
| 9659B | 1 | VH965912111A | WASHER Soft |
| 9659A | 2 | VH965918105A | WASHER Soft |
| 9639A | 3 | VH963942104A | PLUG Expansion |
| 9633-50160 | 4 | VH963350160A | PLUG Sealing |
| 9633-30160 | 1 | VH963330160A | PLUG Sealing |
| 9633-26160 | 4 | VH963326160A | PLUG Sealing |
| 9633-22160 | 2 | VH963322160A | PLUG Sealing |
| 9633-17120 | 5 | VH963317120A | PLUG Sealing |
| 9619A | 1 | VH961918113A | PLUG |
| 9600-12090 | 1 | VH960012090A | PLUG |
| 9509B | 2 | VH950908123A | PIN |
| 9509A | 11 | VH950908122A | PIN |
| 9240-08087 | 1 | VH924008087A | NUT |
| 9069C | 4 | VH906914105A | BOLT Flange (L=60) |
| 9069B | 4 | VH906912122A | BOLT Flange (L=40) |
| 9069A | 24 | VH906908181A | BOLT Flange |
| 9068-10180 | 1 | VH906810180A | BOLT Flange |
| 9068-08800 | 2 | VH906808800A | BOLT Flange |
| 9068-08160 | 2 | VH906808160A | BOLT Flange |
| 82702 | 1 | VH82702E0E80 | BRACKET Sub Assy, Wiring Harness |
| 79904 | 2 | VH799041220A | CLIP Sub Assy |
| 15605 | 4 | VH156051250A | VALVE Sub Assy, Oil Check |
| 15301 | 1 | VH15301E0020 | LEVEL GAUGE Sub-Assy, Oil Level |
| 15117 | 1 | VH151171170A | BUSHING Body Oil Pump |
| 12151 | 1 | VH12151E0020 | GASKET Oil Pan |
| 12149 | 1 | VH121491030A | VALVE Oil Drain |
| 12111 | 1 | VH12111E0061 | PAN Pan.Oil |
| 11521 | 10 | VH115211261A | BOLT Bearing Cap |
| 11467 | 4 | VH114673220A | LINER Cyl, S/S (C) |
| 11467 | 4 | VH114673210A | LINER Cyl, S/S (B) |
| 11467 | 4 | VH114673200A | LINER Cyl, S/S (A) |
| 11409 | 1 | VH11409E0190 | GUIDE Sub Assy, Oil Level Gage |
| 11408 | 4 | VH114081400A | PIPE Sub Assy, Oil Jet |
| 11401 | 1 | VH11401E0701 | BLOCK Block Sub Assy, Cyl |
