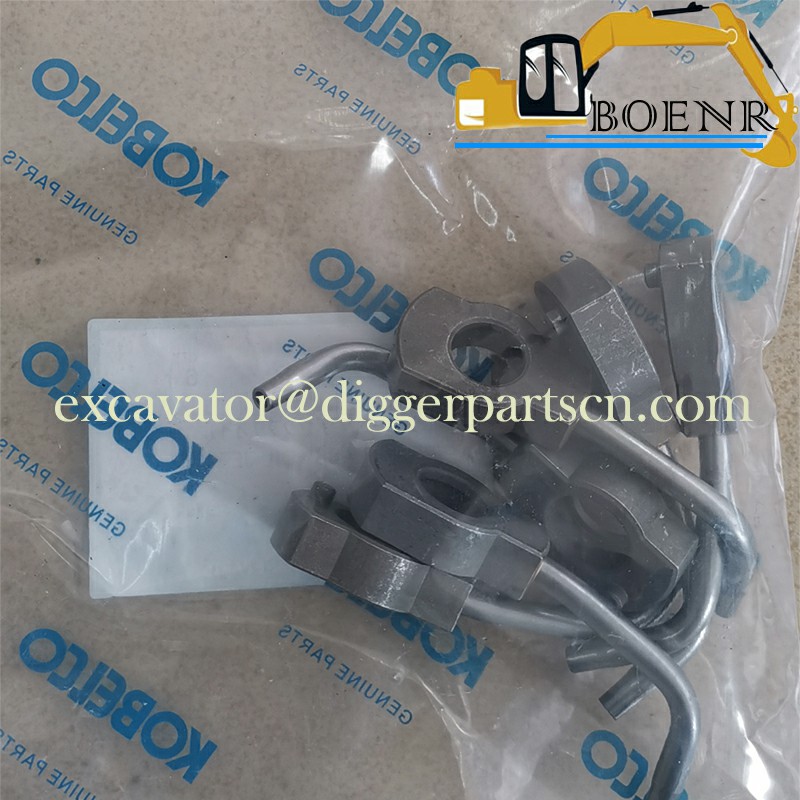

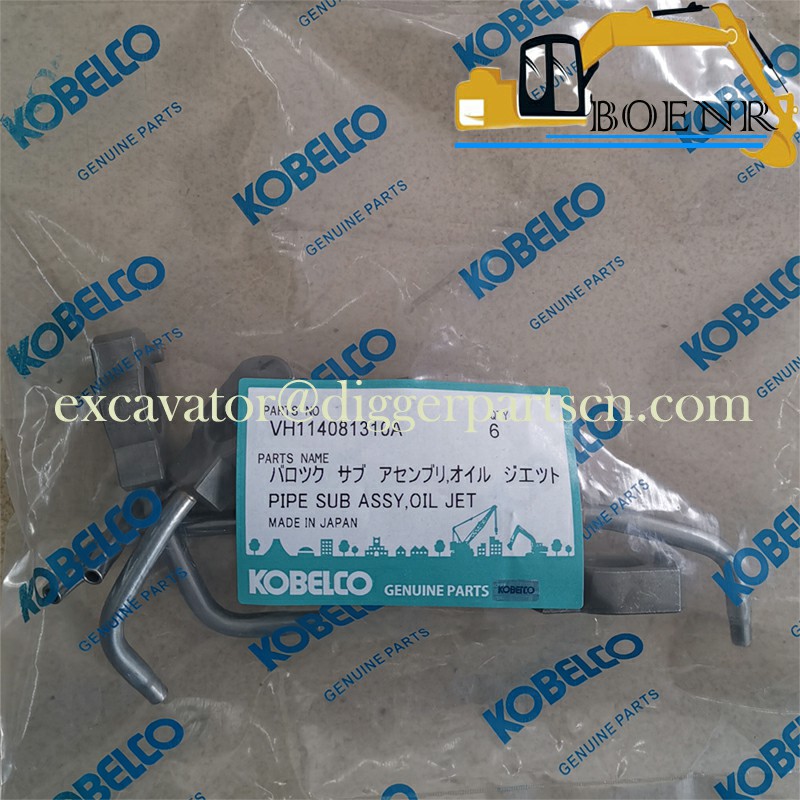

VH114081310A VHS114081310 VH11413E0070 P11C engine Oil Jet pipe For SK430-8 SK450-8 SK480-8 SK485-8
SK430-8 SK450-8 SK480-8 SK485-8 P11C engine Oil Jet pipe VH114081310A VHS114081310 VH11413E0070
| Part Name | Pipe | Part Number | VH114081310A VHS114081310 VH11413E0070 |
| Brand | Kobelco, Kobeki Hino | Applicable Model | SK430-8 SK450-8 SK480-8 SK485-8 |
Weight: 0.2 kg

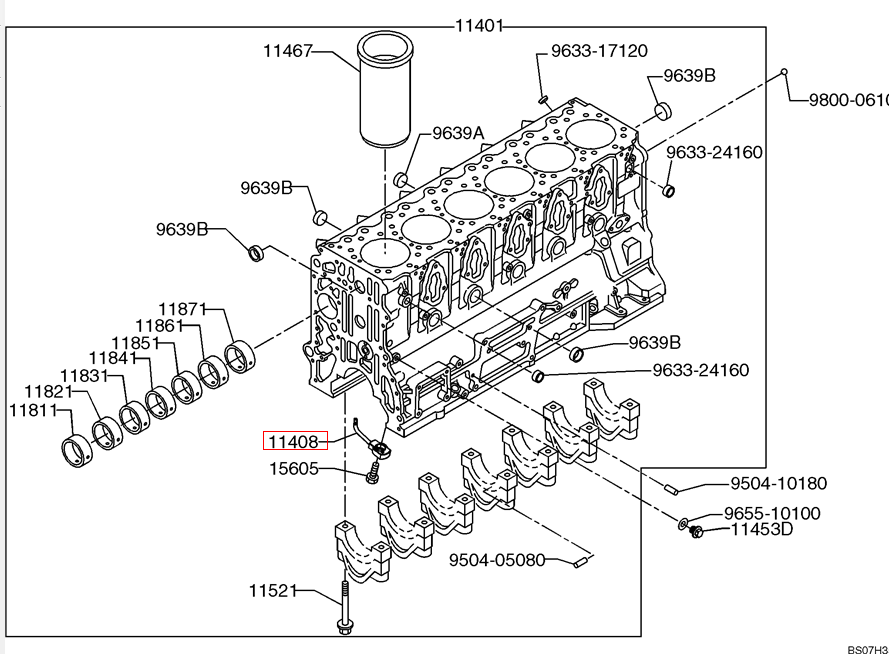

Parts Catalog
| ITEM | QTY | Part Number | Part Name |
| 9800-06100 | 3 | VH980006100A | BALL Steel |
| 9655-10100 | 1 | VH965510100A | WASHER Plug, Sealing |
| 9639B | 13 | VH963940105A | EXPANSION PLUG Plug, Expansion |
| 9639A | 1 | VH963936106A | EXPANSION PLUG Plug, Expansion |
| 9633-24160 | 2 | VH963324160A | PLUG Plug, Sealing |
| 9633-17120 | 12 | VH963317120A | PLUG Sealing |
| 9504-10180 | 2 | VH950410180A | PIN Pin, Straight |
| 9504-05080 | 4 | VH950405080A | PIN Pin, Straight |
| 15605 | 6 | VH156051250B | VALVE Assembly, Oil Check |
| 11871 | 1 | VH118711050A | CAMSHAFT BEARING Bearing, # 7 Camshaft |
| 11861 | 1 | VH118611040A | CAMSHAFT BEARING Bearing, # 6 Camshaft |
| 11851 | 1 | VH118511050A | CAMSHAFT BEARING Bearing, # 5 Camshaft |
| 11841 | 1 | VH118411020A | CAMSHAFT BEARING Bearing, # 4 Camshaft |
| 11831 | 1 | VH118311060A | CAMSHAFT BEARING Bearing, # 3 Camshaft |
| 11821 | 1 | VH118211070A | CAMSHAFT BEARING Bearing, # 2 Camshaft |
| 11811 | 1 | VH118111070A | CAMSHAFT BEARING Bearing, # 1 Camshaft |
| 11521 | 14 | VH115211172B | BOLT Bolt, Bearing Cap |
| 11467 | 6 | VH114673150A | LINER Liner, Service Size Cylinder |
| 11467 | 6 | VH114673140A | LINER Liner, Service Size Cylinder |
| 11467 | 6 | VH114673130A | LINER Liner, Service Size Cylinder |
| 11453D | 1 | VH114531200A | PLUG Plug Main Hole |
| 11408 | 6 | VH114081310A | PIPE Pipe Assembly, Oil Jet |
| 11401 | 1 | VH11401E0720 | CYLINDER BLOCK Block Assembly, Cylinder |
