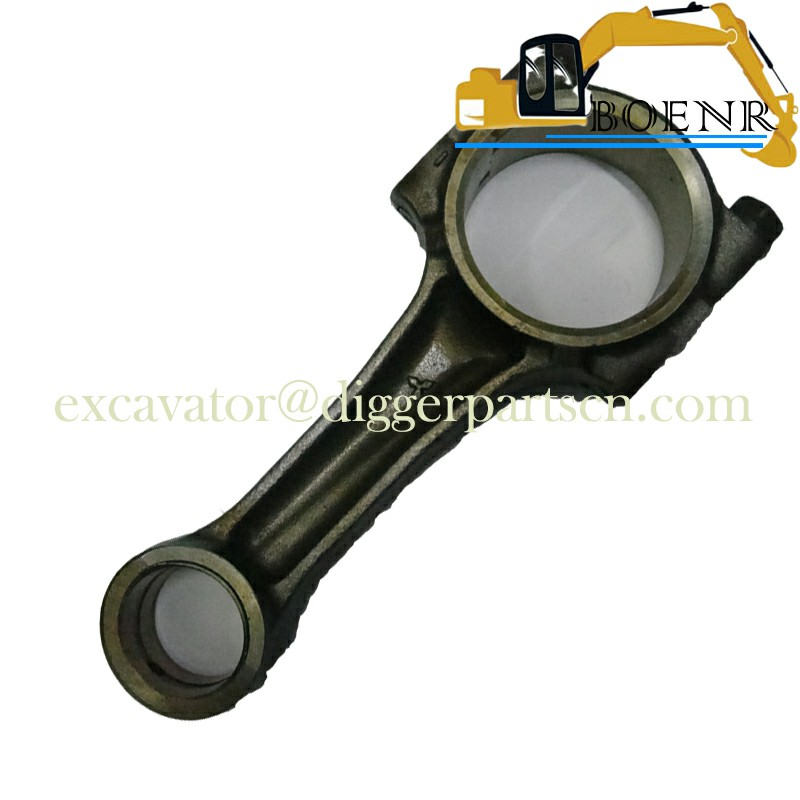

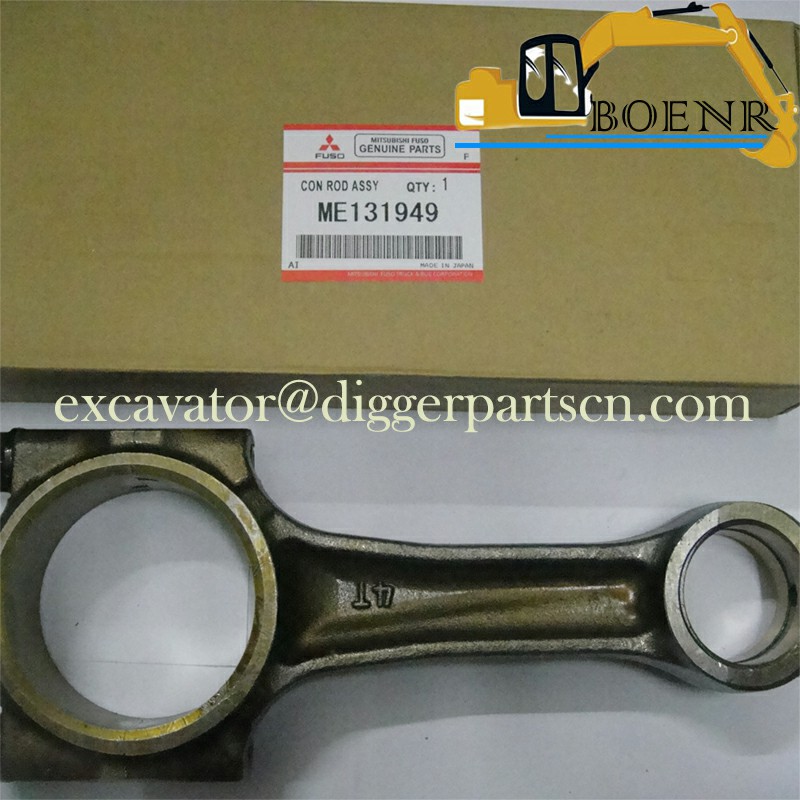

ME131949 VAME131949 6D16 Engine connecting Rod For SK290-6E SK330-6E
SK290-6E SK330-6E 6D16 Engine connecting Rod ME131949 VAME131949
| Part Name | connecting Rod | Part Number | ME131949 VAME131949 |
| Brand | Kobelco, Kobeki, Mitsubishi | Applicable Model | SK290-6E SK330-6E |
Weight: 2 kg

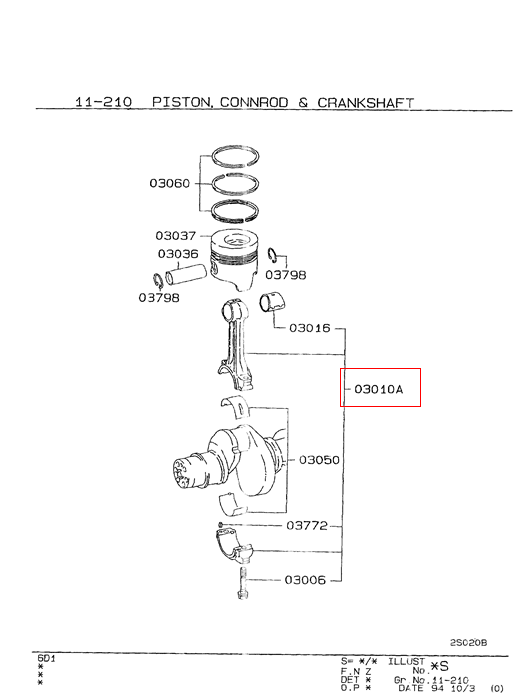

Parts Catalog
| ITEM | QTY | PART NUMBER | PART NAME |
| 03798 | 12 | VAME130964 | SNAP RING PISTON, FROM-UP TO: 9904-1-, MODEL TYPE: ALL |
| 03788C | 1 | VAMF472404 | DOWEL CRANKSHAFT, FROM-UP TO: 9904-1-, MODEL TYPE: ALL, Remarks: DLOWEL, 8X18 |
| 03788B | 1 | VAMH012026 | PIN CRANKSHAFT, FROM-UP TO: 9904-1-, MODEL TYPE: ALL, Remarks: DOWEL, 5X11 |
| 03788 | 1 | VAMF472407 | PIN CRANKSHAFT, FROM-UP TO: 9904-1-, MODEL TYPE: ALL, Remarks: DOWEL, 14X28 |
| 03787 | 6 | VAMH001629 | BOLT BOLT, CRANKSHAFT PULLEY, FROM-UP TO: 9904-1-, MODEL TYPE: ALL, Remarks: 14X33 |
| 03775 | 8 | VAMH000974 | BOLT BOLT, TORSIONAL DAMPER, FROM-UP TO: 9904-1-, MODEL TYPE: ALL, Remarks: FLANGE, 10X25 |
| 03772 | 12 | VAMF472401 | PIN CONNROD, FROM-UP TO: 9904-1-, MODEL TYPE: ALL, Remarks: DOWEL, 4X10 |
| 03060 | 1 | VAME995535 | PISTON RING FROM-UP TO: 9904-1-, MODEL TYPE: ALL |
| 03050 | 1 | VAME995568 | BEARING SET CONNROD, FROM-UP TO: 9904-1-, MODEL TYPE: ALL, Remarks: U/SIZE 1.00 |
| 03050 | 1 | VAME995567 | BALL BEARING CONNROD, FROM-UP TO: 9904-1-, MODEL TYPE: ALL, Remarks: U/SIZE 0.75 |
| 03050 | 1 | VAME995566 | BALL BEARING CONNROD, FROM-UP TO: 9904-1-, MODEL TYPE: ALL, Remarks: U/SIZE 0.50 |
| 03050 | 1 | VAME995565 | BEARING SET CONNROD, FROM-UP TO: 9904-1-, MODEL TYPE: ALL, Remarks: U/SIZE O.25 |
| 03050 | 1 | VAME995564 | BEARING SET CONNROD, FROM-UP TO: 9904-1-, MODEL TYPE: ALL, Remarks: STD |
| 03047 | 1 | VAME078731 | PULLEY CRANKSHAFT, FROM-UP TO: 9904-1-, MODEL TYPE: ALL |
| 03037 | 6 | VAME078759 | PISTON FROM-UP TO: 9904-1-, MODEL TYPE: ALL, Remarks: B SIZE |
| 03037 | 6 | VAME078758 | PISTON PISTON, FROM-UP TO: 9904-1-, MODEL TYPE: ALL, Remarks: A SIZE |
| 03036 | 6 | VAME130957 | PIN PISTON, FROM-UP TO: 9904-1-, MODEL TYPE: ALL, Remarks: 42X93 |
| 03022 | 1 | VAME078454 | DAMPER CRANKSHAFT TORSIONAL, FROM-UP TO: 9904-1-, MODEL TYPE: ALL |
| 03016 | 6 | VAME132712 | BUSHING CONNROD, FROM-UP TO: 9904-1-, MODEL TYPE: ALL |
| 03010A | 6 | VAME131949 | LINK CONROD FROM-UP TO: 9904-1-, MODEL TYPE: ALL |
| 03006 | 12 | VAME131963 | SCREW CONNROD, FROM-UP TO: 9904-1, MODEL TYPE: ALL |
