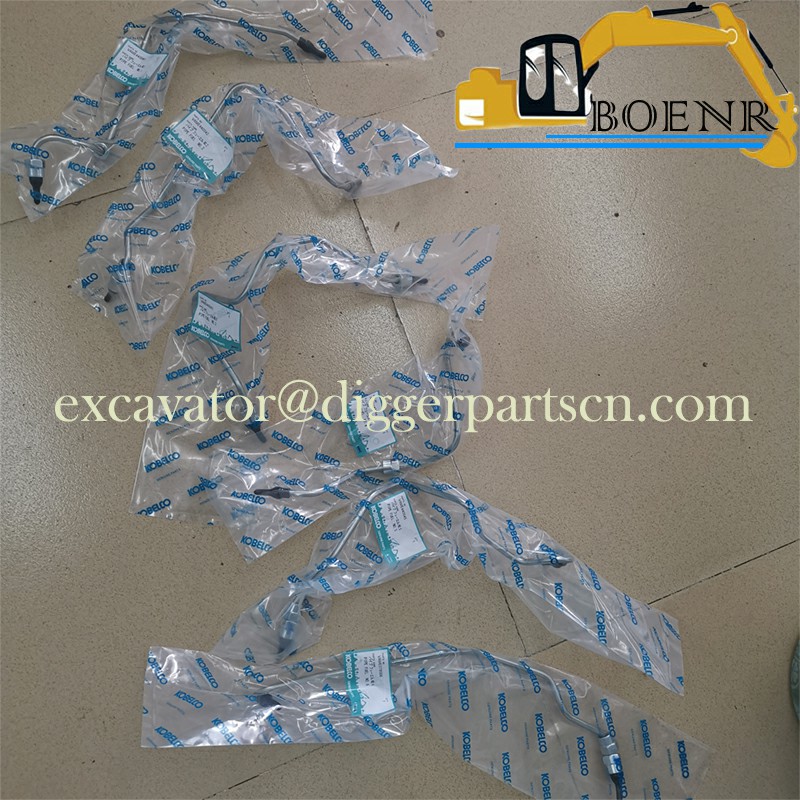

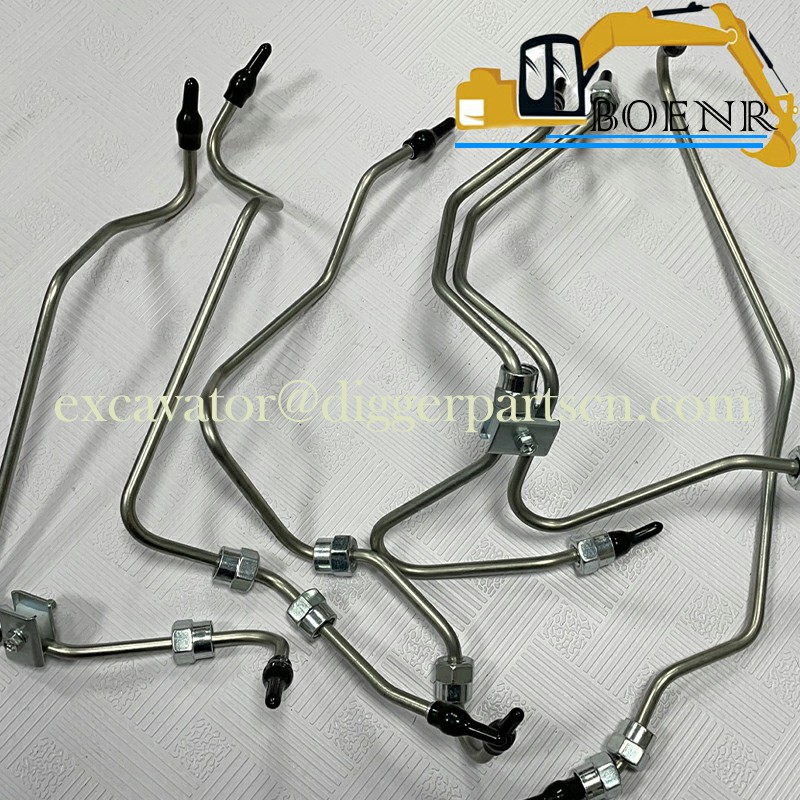

VAME440042 ME440042 6D16 Engine Fuel Injection Tube For SK290-6E SK330-6E
SK290-6E SK330-6E 6D16 Engine Fuel Injection Tube VAME440042 ME440042
| Part Name | Tube | Part Number | VAME440042 ME440042 |
| Brand | Kobelco Kobeki | Applicable Model | SK290-6E SK330-6E |
Weight: 0.5 kg

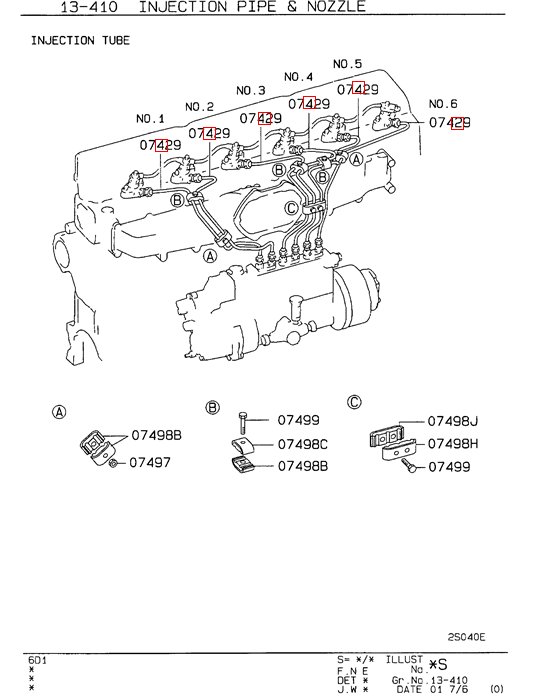

Parts Catalog
| ITEM | QTY | Part Number | Part Name |
| 07499 | 5 | VAMF240032 | BOLT BOLT, FUEL INJECTION TUBE, FROM-UP TO: 0210.1-, MODEL TYPE: ALL, Remarks: WASHER ASSEMBLED 6X32 |
| 07498J | 1 | VAMH020296 | CLAMP CLAMP, FUEL INJECTION TUBE, FROM-UP TO: 0210.1-, MODEL TYPE: ALL, Remarks: D=6X3 |
| 07498H | 1 | VAMH020295 | CLAMP CLAMP, FUEL INJECTION TUBE, FROM-UP TO: 0210.1-, MODEL TYPE: ALL, Remarks: D=6X3 |
| 07498C | 3 | VAMH020294 | CLAMP CLAMP, FUEL INJECTION TUBE, FROM-UP TO: 0210.1-, MODEL TYPE: ALL, Remarks: D=6X2 |
| 07498B | 7 | VAMH020293 | CLAMP CLAMP, FUEL INJECTION TUBE, FROM-UP TO: 0210.1-, MODEL TYPE: ALL, Remarks: D=6X2 |
| 07497 | 2 | VAMF434103 | NUT NUT, FUEL INJECTION TUBE, FROM-UP TO: 0210.1-, MODEL TYPE: ALL, Remarks: FLANGE, 6 |
| 07494 | 12 | VAMH001516 | BOLT BOLT, FUEL INJECTION NOZZLE, FROM-UP TO: 0210.1-, MODEL TYPE: ALL, Remarks: 8X64 |
| 07493C | 6 | VAME705403 | NUT NUT, FUEL INJECTION NOZZLE, FROM-UP TO: 0210.1-, MODEL TYPE: ALL |
| 07493B | 6 | VAME748013 | NUT NUT, FUEL INJECTION NOZZLE, FROM-UP TO: 0210.1-, MODEL TYPE: ALL |
| 07491 | 12 | VAME705407 | PIN PIN, FUEL INJECTION NOZZLE, FROM-UP TO: 0210.1-, MODEL TYPE: ALL |
| 07488B | 6 | VAME705408 | SCREW SCREW, FUEL INJECTION NOZZLE, FROM-UP TO: 0210.1-, MODEL TYPE: ALL |
| 07434B | 6 | VAME705409 | SPRING SPRING, FUEL INJECTION NOZZLE HOLDER, FROM-UP TO: 0210.1-, MODEL TYPE: ALL |
| 07432B | 6 | VAME738087 | PUSH ROD, FUEL INJECTION NOZZLE HOLDER, FROM-UP TO: 0210.1-, MODEL TYPE: ALL |
| 07429 | 1 | VAME078566 | INJECTION PIPE TUBE, FUEL INJECTION, FROM-UP TO: 0210.1-, MODEL TYPE: ALL, Remarks: 6.35X2.0X470 NO. 6 |
| 07429 | 1 | VAME440045 | TUBE TUBE, INJECTION FUEL, FROM-UP TO: 0210.1-, MODEL TYPE: ALL, Remarks: 6.35X2.0X470 NO. 5 |
| 07429 | 1 | VAME440044 | TUBE TUBE, FUEL INJECTION, FROM-UP TO: 0210.1-, MODEL TYPE: ALL, Remarks: 6.35X2.0X470 NO. 4 |
| 07429 | 1 | VAME440043 | TUBE TUBE, FUEL INJECTION, FROM-UP TO: 0210.1-, MODEL TYPE: ALL, Remarks: 6.35X2.0X470 NO. 3 |
| 07429 | 1 | VAME440042 | TUBE TUBE, FUEL INJECTION, FROM-UP TO: 0210.1-, MODEL TYPE: ALL, Remarks: 6.35X2.0X470 NO. 2 |
| 07429 | 1 | VAME440041 | TUBE TUBE, FUEL INJECTION, FROM-UP TO: 0210.1-, MODEL TYPE: ALL, Remarks: 6.35X2.0X470 NO. 1 |
| 07420 | 6 | VAME748723 | FUEL SYSTEM INJECTOR NOZZLE, FUEL INJECTION, FROM-UP TO: 0210.1-, MODEL TYPE: ALL |
| 07414 | 6 | VAME705426 | HYD CONNECTOR JOINT, FUEL INJECTION NOZZLE HOLDER, FROM-UP TO: 0210.1-, MODEL TYPE: ALL |
| 07410A | 6 | VAME740838 | NOZZLE HOLDER HOLDER ASSY, FUEL INJECTION NOZZLE, FROM-UP TO: 0210.1-, MODEL TYPE: ALL |
| 07406D | 12 | VAME705389 | PACKING GASKET, FUEL INJECTION NOZZLE INR, FROM-UP TO: 0210.1-, MODEL TYPE: ALL |
| 07406C | 6 | VAME705425 | GASKET GASKET, FUEL INJECTION NOZZLE INR, FROM-UP TO: 0210.1-, MODEL TYPE: ALL |
| 07406B | 6 | VAME705391 | GASKET GASKET, FUEL INJECTION NOZZLE INR, FROM-UP TO: 0210.1-, MODEL TYPE: ALL |
| 07405 | 6 | VA3096102300 | O-RING GASKET, FUEL INJECTION NOZZLE, FROM-UP TO: 0210.1-, MODEL TYPE: ALL |
| 07404 | 6 | VAME705400 | SCREW EYEBOLT, FUEL INJECTION NOZZLE, FROM-UP TO: 0210.1-, MODEL TYPE: ALL |
| 07403 | 6 | VAME036562 | DUST CAP DUST SEAL, FUEL INJECTION NOZZLE HOLDER, FROM-UP TO: 0210.1-, MODEL TYPE: ALL |
| 07400A | 6 | VAME440071 | NOZZLE NOZZLE & HOLDER ASSY, FUEL INJECTION, FROM-UP TO: 0210.1-, MODEL TYPE: ALL, Remarks: ZEXEL |
