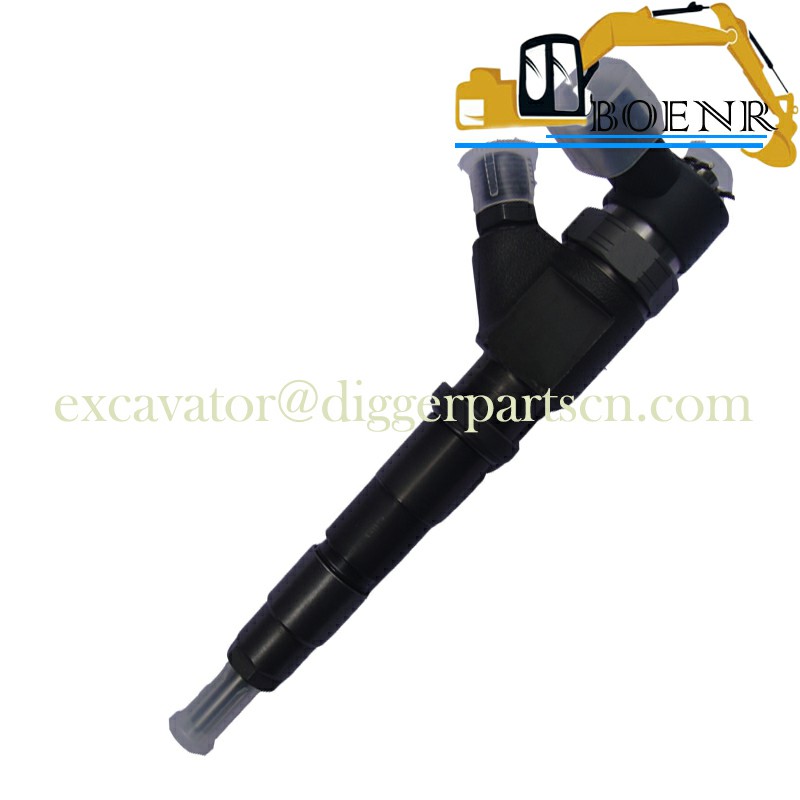

VA32G6100010 0445120126 32g61-00010 D04FR Engine Fuel Injector for SK140SR SK130-8 SK140-8
SK140SR SK130-8 SK140-8 D04FR Engine Fuel Injector 32g61-00010 VA32G6100010 0445120126
| Part Name | Fuel Injector | Part Number | 32g61-00010 VA32G6100010 0445120126 |
| Brand | Kobelco ,Kobeki、MISTUBISHI 、Bosch | Applicable Model | SK140SR SK130-8 SK140-8 |
Weight: 1.2 KG

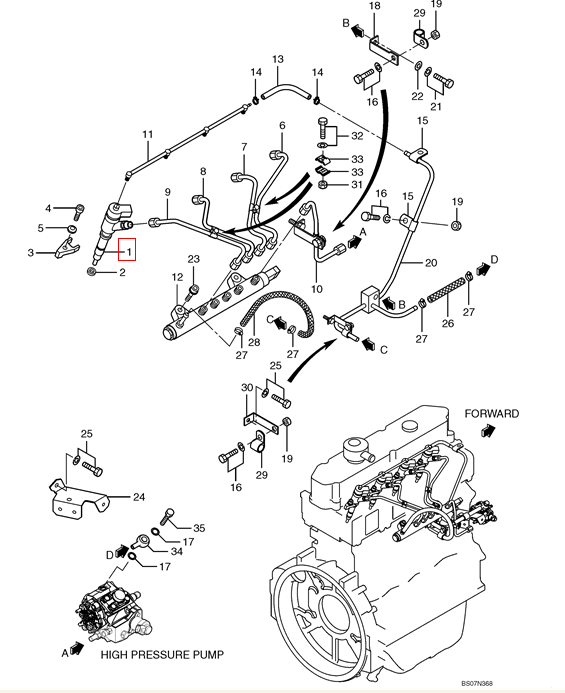

Parts Catalog
| ITEM | QTY | PART NUMBER | PART NAME |
| 35 | 1 | VA3406106200 | EYEBOLT |
| 34 | 1 | VAMM413206 | UNION Color, Union |
| 33 | 4 | VAMM430703 | CLAMP |
| 32 | 2 | VAF180506025 | BOLT (Incls. Washer) |
| 31 | 2 | VAF230006000 | NUT |
| 30 | 1 | VA32G6105300 | BRACKET |
| 29 | 2 | VAMH020429 | CLIP |
| 28 | 1 | VAMS602023 | FLEXIBLE HOSE Fuel |
| 27 | 4 | VAF430010000 | CLAMP |
| 26 | 1 | VAMS603004 | FLEXIBLE HOSE Fuel |
| 25 | 2 | VAMF241252 | BOLT (Incls. Washer) |
| 24 | 1 | VA32G8708500 | BRACKET Harness |
| 23 | 2 | VAMF140231 | BOLT Flange |
| 22 | 1 | VAF250008000 | WASHER |
| 21 | 1 | VAMF241261 | BOLT (Incls. Washer) |
| 20 | 1 | VA32G6104200 | PIPE Fuel Return |
| 19 | 3 | VAF230510000 | NUT |
| 18 | 1 | VA32G6105100 | BRACKET Fuel Pipe |
| 17 | 2 | VAMD070717 | GASKET Holder |
| 16 | 3 | VAF180510018 | BOLT (Incls. Washer) |
| 15 | 2 | VAMH020428 | CLIP |
| 14 | 2 | VAF430001000 | HOSE CLAMP |
| 13 | 1 | VAMS604012 | FLEXIBLE HOSE Fuel |
| 12B | VA32G6109100 | SENSOR Common Rail Pressure | |
| 12A | VA32G6109200 | VALVE Common Rail Pressure Limiting | |
| 12 | 1 | VA32G6100900 | RAIL ASSY. Rail, Common |
| 11 | 1 | VA32G6102100 | HOSE ASSY. Leak Off |
| 10 | 1 | VA32G6103900 | PIPE Fuel |
| 9 | 1 | VA32G6103700 | INJECTION PIPE No.4 |
| 8 | 1 | VA32G6103600 | INJECTION PIPE No.3 |
| 7 | 1 | VA32G6103500 | INJECTION PIPE No.2 |
| 6 | 1 | VA32G6103400 | INJECTION PIPE No.1 |
| 5 | 4 | VA32F6101800 | SPECIAL WASHER |
| 4 | 4 | VAF121008030 | BOLT Hexagon Socket |
| 3 | 4 | VA32G6100100 | GLAND Nozzle |
| 2 | 4 | VA3436100700 | GASKET Nozzle |
| VA32G6100010C | CORE-INJECTION NOZZLE Return Number, For N.A. Only | ||
| AR | VA32G6100010R | REMAN-INJECTION NOZZLE 140SR ACERA Tier 3 (1/08), N.A. Only | |
| 1 | 4 | VA32G6100010 | FUEL SYSTEM INJECTOR |
