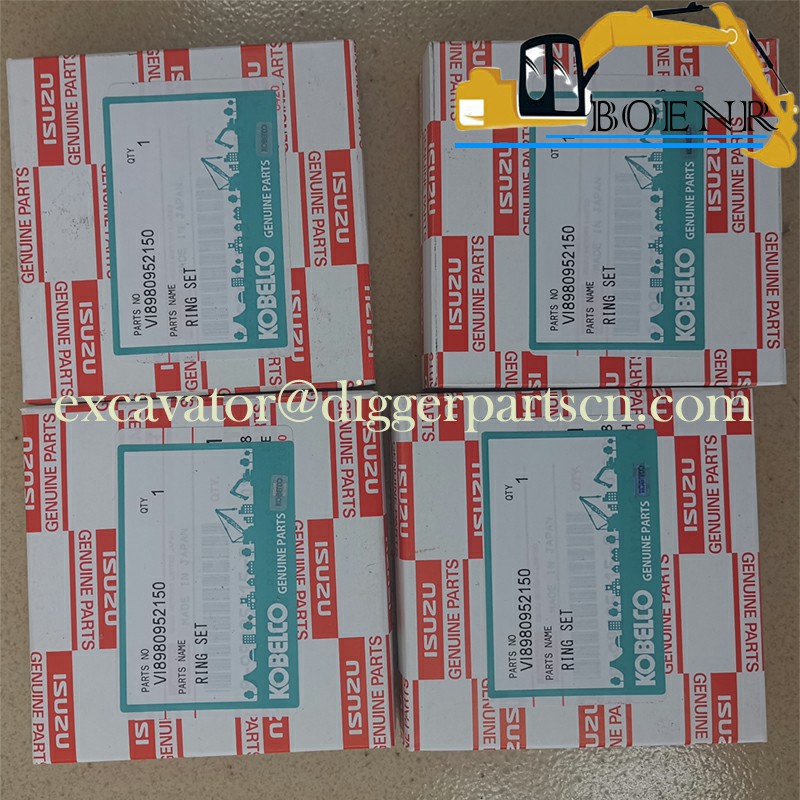

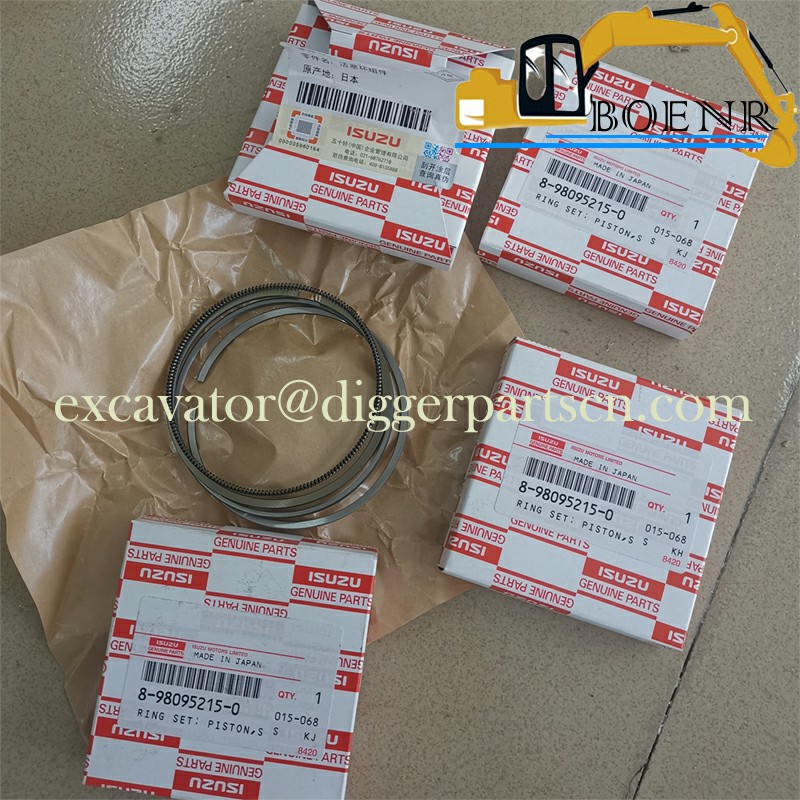

8-98095215-0 VI8980952150 8980952150 4LE2 Engine piston ring for SK75-8 SK70SR SK80SC
SK75-8 SK70SR SK80SC 4LE2 Engine piston ring 8-98095215-0 VI8980952150 8980952150
| Part Name | piston ring | Part Number | 8-98095215-0 VI8980952150 8980952150 |
| Brand | Kobelco ISUZU Kobeki | Applicable Model | SK75-8 SK70SR SK80SC |
Weight: 0.2 kg

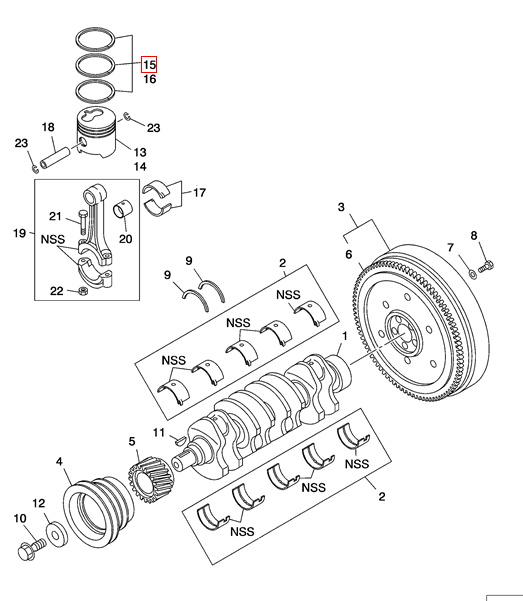

Parts Catalog
| ITEM | QTY | PART NUMBER | PART NAME |
| 23 | 8 | VI8943699050 | SNAP RING Piston Pin |
| 22 | 8 | VI8943777850 | NUT Conn. Rod |
| 21 | 8 | VI8980485360 | BOLT Conn. Rod |
| 20 | 4 | VI8980638260 | BUSHING Conn. Rod |
| 19 | 4 | VI8980757760 | CONNECTING ROD Asm. |
| 18 | 4 | VI5122110170 | PISTON PIN |
| 17 | 4 | VI8980957130 | SET OF CONN ROD BRGS (STD) Metal; Standard |
| 16 | 4 | VI8980952160 | SET OF PISTON RINGS +0.6 Piston, O/S=0.25 |
| 15 | 4 | VI8980952150 | SET OF RINGS Piston, Standard |
| 14 | 4 | VI8980681571 | PISTON ASSY O/S=0.25 |
| 13 | 4 | VI8980681581 | PISTON |
| 12 | 1 | VI8941347920 | WASHER CR/Shf. Pulley |
| 11 | 1 | VI8942016410 | KEY Woodruff, CR/Shf. |
| 10 | 1 | VI8943860790 | BOLT CR/Shf. Pulley |
| 9 | 2 | VI8980637830 | WASHER Thrust, CR/Shf. |
| 8 | 6 | VI8941333281 | BOLT Flywheel |
| 7 | 6 | VI8970232680 | WASHER Flywheel |
| 6 | 1 | VI8980930180 | RING GEAR |
| 5 | 1 | VI8973286120 | GEAR CR/Shf. |
| 4 | 1 | VI8980891100 | CRANKSHAFT PULLEY |
| 3 | 1 | VI8980306272 | ENGINE FLYWHEEL |
| 2 | 1 | VI8980890840 | REPAIR KIT Metal; Crankshaft, Standard |
| 1 | 1 | VI8980638280 | CRANKSHAFT |
