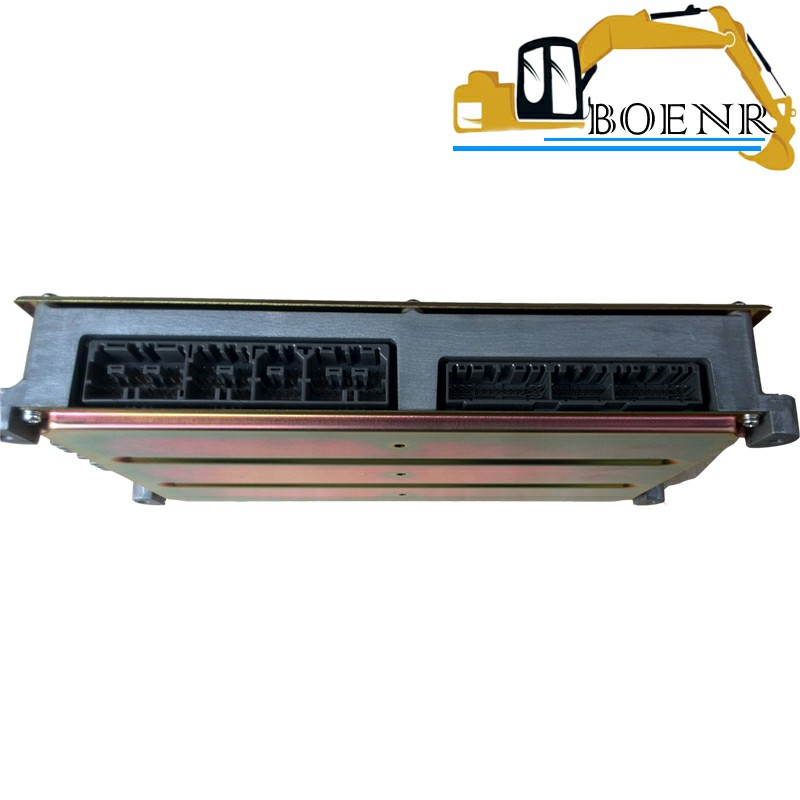

YF22E00001F1 Controller For SK235SR
SK235SR Controller YF22E00001F1
| Part Name | controller | Part Number | YF22E00001F1 |
| Brand | Kobeki | Applicable Model | SK235SR |
Weight: 3.5 kg

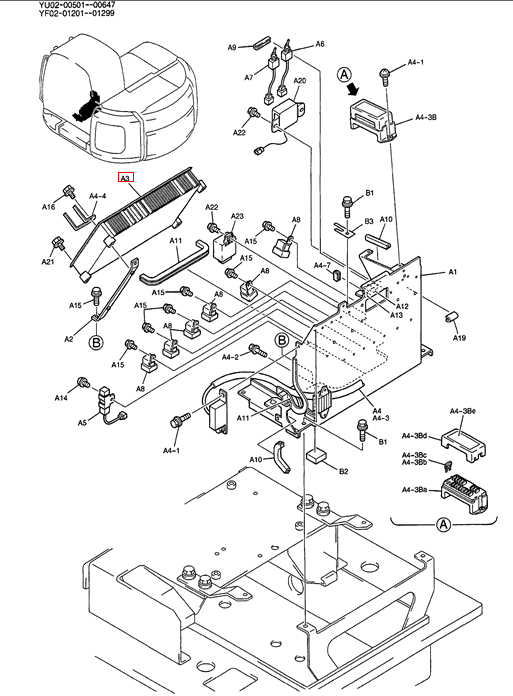

Parts Catalog
| ITEM | QTY | PART NUMBER | PART NAME |
| B3 | 1 | 2432R233D2 | CLIP 37x12x40mm |
| B2 | 1 | YT22E01026P1 | INDICATOR INSULATION |
| B1 | 4 | ZM22C10025 | BOLT M10x1.50x25mm (Incls. Washer & Lockwasher) |
| YT22E00014F1 | CONTROL CONTROLLER INSTAL | ||
| A20 | 1 | VAME077148 | RELAY STARTER SAFETY |
| A23 | 1 | YN25S00001P1 | TIMER MITSUBISHI |
| A22 | 3 | ZM61C06016 | BOLT M06x1.0x16mm (Incls. Washer & Lockwasher) |
| A21 | 1 | ZM61C06025 | BOLT M06x1.0x25mm (Incls. Washer & Lockwasher) |
| A19 | 1 | 2427Z1594D003 | SOFT TRIM |
| A16 | 3 | ZM61C06030 | BOLT M06x1.0x30mm (Incls. Washer & Lockwasher) |
| A15 | 10 | ZM61C06012 | BOLT M06x1.0x12mm (Incls. Washer & Lockwasher) |
| A14 | 1 | ZM41C04012 | BOLT M04x0.7x12mm (Incls. Washer & Lockwasher) |
| A13 | 1 | YV22E01002P1 | LABEL Decal, KPSS/Release |
| A12 | 1 | YT22E01006P1 | LABEL |
| A11 | 2 | 2427Z1594D028 | TRIM PANEL |
| A10 | 2 | 2427Z1594D008 | PROTECTION STRIP |
| A9 | 1 | 2427Z1594D006 | TRIM PANEL |
| A8 | 6 | EN24S00008P1 | RELAY |
| A7 | 1 | YN50S01003P1 | SWITCH SWITCH |
| A6 | 1 | YT50E00001F1 | SWITCH ASSY |
| A5 | 1 | LC22E01001D1 | RESISTOR 16 Ohm |
| A4-7 | 1 | 2427Z1594D003 | SOFT TRIM |
| A4-6 | 7 | YN03E01001D5 | CLIP 195mm Long (7-43/64 in) -- Black |
| A4-4 | 1 | 2432R233D1 | CLIP 37x12x40mm |
| A4-3Be | 1 | YF73E01001P1 | LABEL LABEL |
| A4-3Bd | 9 | 2479R655S9 | FUSE 20 Amp |
| A4-3Bc | 12 | 2479R655S8 | FUSE 10 Amp |
| A4-3Bb | 1 | YN73E00001S002 | COVER |
| A4-3Ba | 1 | YN73E00001S001 | BASE |
| A4-3B | 1 | YF73E00001F1 | FUSE FUSE ASSY |
| A4-3 | 1 | YF14E01006P1 | HARNESS HARNESS |
| A4-2 | 3 | ZM61C06016 | BOLT M06x1.0x16mm (Incls. Washer & Lockwasher) |
| A4-1 | 4 | ZM61C06020 | BOLT M06x1.0x20mm (Incls. Washer & Lockwasher) |
| A4 | 1 | YF14E00002F1 | HARNESS HARNESS ASSY, CAB |
| A3 | 1 | YF22E00001F1 | BOX CONTROLLER |
| A2 | 2 | YY22E01006P1 | BRACKET |
| A1 | 1 | YF22E01001P1 | BOXED PANEL BOX |
| YF22E00005F1 | CONTROLLER ASSY |
