YB22E00008F1 YB22E00008F4 Controller For SK200-6 SK200SR SK210-6
SK200-6 SK200SR SK210-6 Controller YB22E00008F1 YB22E00008F4
| Part Name | Controller | Part Number | YB22E00008F1 YB22E00008F4 |
| Brand | Kobeki | Applicable Model | SK200-6 SK200SR SK210-6 |
Weight: 3 kg

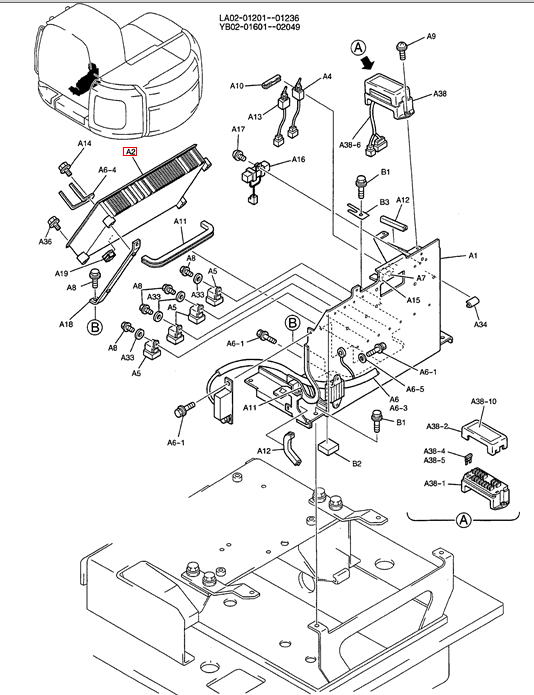

Parts Catalog
| ITEM | QTY | PART NUMBER | PART NAME |
| A38-10 | 1 | YY73E01006P1 | LABEL |
| A38-6 | 1 | YV73E00001S006 | HARNESS |
| A38-5 | 9 | 2479R655S9 | FUSE 20 Amp |
| A38-4 | 12 | 2479R655S8 | FUSE 10 Amp |
| A38-2 | 1 | YN73E00001S002 | COVER |
| A38-1 | 1 | YN73E00001S001 | BASE |
| A38 | 1 | YB73E00002F4 | FUSE ASSY |
| A36 | 1 | ZM61C06025 | BOLT M06x1.0x25mm (Incls. Washer & Lockwasher) |
| A34 | 1 | 2427Z1594D003 | SOFT TRIM |
| A33 | 4 | ZW16X06000 | WASHER ID 06 x OD 12.5 x Th 1.6mm |
| A19 | 1 | YV14E01016P1 | ELEC CONNECTOR |
| A18 | 2 | YY22E01006P1 | BRACKET |
| A17 | 1 | ZM41C04012 | BOLT M04x0.7x12mm (Incls. Washer & Lockwasher) |
| A16 | 1 | LC22E01001D1 | RESISTOR 16 Ohm |
| A15 | 1 | YV22E01002P1 | LABEL Decal, KPSS/Release |
| A14 | 3 | ZM61C06030 | BOLT M06x1.0x30mm (Incls. Washer & Lockwasher) |
| A13 | 1 | YN50S01003P1 | SWITCH (KPSS PELEASE) |
| A12 | 2 | 2427Z1594D008 | PROTECTION STRIP |
| A11 | 2 | 2427Z1594D028 | TRIM PANEL |
| A10 | 1 | 2427Z1594D006 | TRIM PANEL |
| A9 | 2 | ZM61C06020 | BOLT M06x1.0x20mm (Incls. Washer & Lockwasher) |
| A8 | 8 | ZM61C06012 | BOLT M06x1.0x12mm (Incls. Washer & Lockwasher) |
| A7 | 1 | YT22E01006P1 | LABEL (SWING PARKING PELEASE) |
| A6-6 | 1 | PY01P01043D3 | CLIP Wire Ties -- 188mm Long |
| A6-5 | 1 | ZW16X06000 | WASHER ID 06 x OD 12.5 x Th 1.6mm |
| A6-4 | 2 | 2432R233D1 | CLIP 37x12x40mm |
| A6-3 | 1 | YB14E01010P3 | WIRE HARNESS HARNESS |
| A6-2 | 1 | ZM41C05012 | BOLT M05x0.8x12mm (Incls. Washer & Lockwasher) |
| A6-1 | 5 | ZM61C06016 | BOLT M06x1.0x16mm (Incls. Washer & Lockwasher) |
| A6 | 1 | YB14E00008F1 | HARNESS ASSY, CAB |
| A5 | 4 | YR24S00002P1 | RELAY |
| A4 | 1 | YT50E00001F1 | SWITCH (SWING PARKING PELEASE) |
| A2 | 1 | YB22E00008F1 | CONTROLLER CONTROLLER ASSY, (MECHA-TRO) |
| A1 | 1 | YY22E01019P1 | BOX |
| YB22E00014FC | CONTROLLER ASSY |
