How to Fix Excavator Hydraulic Cylinder Drift (Dropping Arm)
"Cylinder Drift" (commonly known as a dropping arm or cylinder sinking) is one of the most frustrating hydraulic failures an excavator owner can encounter. When you pull the joysticks to neutral under load, but the bucket arm cylinder slowly retracts or extends on its own, it severely affects operating accuracy and poses a huge safety hazard. Here is the ultimate diagnostic guide from veteran mechanics to identify and resolve the issue systematically.

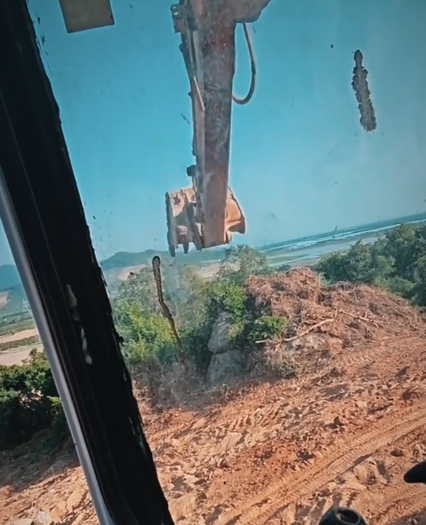

📸 Image 1: Excavator Bucket Arm Cylinder Sinking / Drift Phenomenon
Step 1: The Ultimate "Isolation Test" (Cylinder vs. Valve)
Before dismantling any heavy components, you must isolate whether the hydraulic oil is leaking internally inside the bucket arm cylinder (bypassing piston seals) or inside the main control valve bank (bypassing the valve spool or port relief valves).
How to Perform the Test ：
Operation : Extend the dropping bucket arm cylinder completely under a safe load, shut off the engine, and lock the safety pilot lever. Safely disconnect and block/plug the hydraulic oil line on the rod side or blind side (depending on the drift direction).
Diagnosis A : If the bucket arm cylinder stops dropping after plugging the oil line, the cylinder seals are perfect! The leakage point is located back inside the main control valve bank.
Diagnosis B : If the bucket arm cylinder continues to drop even with the line securely plugged, oil is bypassing right inside the cylinder chamber. The piston seals are fully blown.

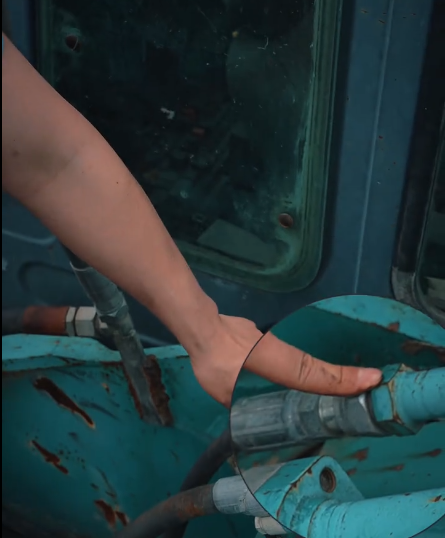

📸 Image 2: Diagram of Hydraulic Line Isolation Test on Excavator
Step 2: Checking for Cylinder Internal Leakage (Piston Seals)
If Step 1 confirmed a cylinder leak, the main culprit is almost always a worn-out or blown Piston U-Cup seal, damaged wear rings, or backup rings inside the bucket arm cylinder.
Cause & Solution: Continuous high operating temperatures, contaminated hydraulic fluid, or extreme heavy-duty lifting wear out the polyurethane seals over time. To fix this, disassemble the bucket arm cylinder and replace it with a premium, high-temperature resistant cylinder seal kit (such as genuine NOK or SKF). Always inspect the chrome rod surface for any scratches or scoring; a scratched rod will instantly shred new seals.

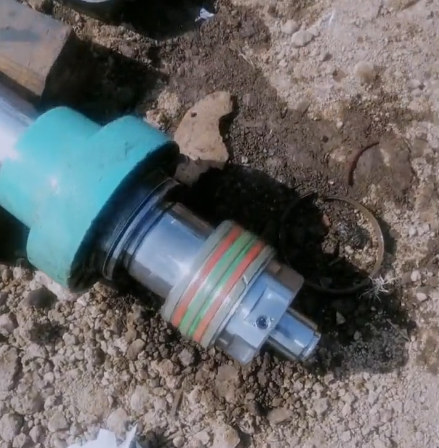

📸 Image 3: Disassembled Bucket Arm Cylinder and Worn Piston Seals
Step 3: Inspecting Control Valve Spools & Port Relief Valves /
If the bucket arm cylinder successfully passed the isolation test, the high-pressure oil is slipping back into the hydraulic tank through the Main Control Valve (multi-way valve distributor).
1. Port Relief Valve : Each cylinder circuit is equipped with a port relief valve to protect against overload. If a tiny speck of metal debris or carbon dirt gets lodged in the valve seat, it stays slightly cracked open, allowing continuous micro-leakage. Try swapping the port relief valve with an unaffected circuit to see if the dropping symptom shifts.
2. Valve Spool Clearance Wear : The control valve block is a highly precise component. After millions of cycles, the structural gap between the valve housing and the spool increases. Hydraulic oil will simply escape through these worn clearances even when the joystick is completely in the neutral position.

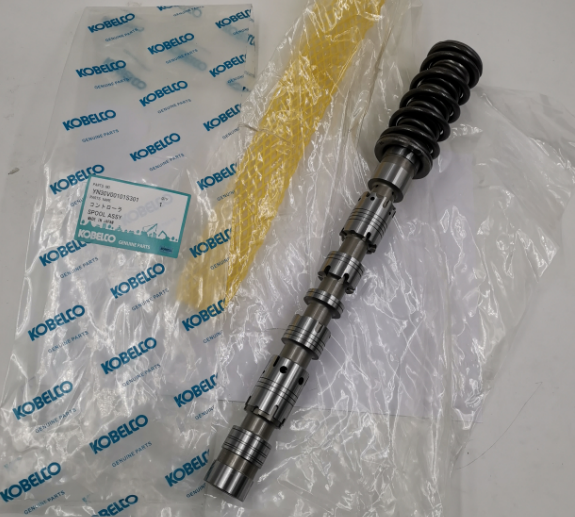

📸 Image 4: Inspecting Main Control Valve Spool for Mechanical Wear
Step 4: Don't Forget the Bucket Arm Cylinder Holding Valve
Modern medium and large excavators are equipped with a specialized Arm Holding Valve (Lock Valve) mounted directly near the main control valve or the cylinder ports. This valve acts as a mechanical safety lock to hold oil pressure firmly when the control lever is neutral.
If the internal poppet inside the holding valve has a microscopic nick, or if its pilot control piston seal is torn, the holding valve fails to lock the circuit. The weight of the bucket arm will easily push the oil backward, causing noticeable cylinder drift. Clean the valve cartridge or replace the holding valve seal assembly to resolve this specific issue.
"Fixing an excavator dropping arm requires a strict logical workflow: Always isolate first, then disassemble later. Blindly replacing components will only lead to wasted downtime and high financial loss.
